Acura MDX Radiator: A Guide for the 2001-2007 Generation
Keep your first-gen MDX running cool and avoid a transmission-destroying failure by understanding your radiator.
- The biggest risk of an old radiator is the failure of the internal transmission cooler, which can destroy your transmission.
- Denso is the OEM-equivalent brand and offers the highest quality aftermarket replacement.
- Always use Honda Type 2 (blue) coolant and replace hoses and the thermostat during the job for long-term reliability.
- There are no specific recalls for the radiator, but the transmission cooler failure is a widely known critical issue.
Is Your Acura MDX Radiator Failing?
A failing radiator is more than an inconvenience; it can lead to major engine and transmission damage. If your 2001-2007 MDX is showing any of these signs, it's time to inspect your cooling system immediately.
- Engine Overheating: The most obvious sign. Your temperature gauge climbs into the red, especially in traffic or when idling. 🎬 Watch: How to troubleshoot radiator fans that aren't running.
- Coolant Leaks: Finding puddles of bright green or blue fluid under the front of your SUV is a sure sign of a leak. The plastic tanks on the top and bottom are common places for cracks to form.
- Low Coolant Light: If you constantly have to add more coolant to the overflow tank, it's leaking from somewhere.
- Steam From the Hood: If you see steam, pull over immediately. This means hot coolant is spraying onto your engine.
- Contaminated Fluids: If your coolant looks rusty, sludgy, or oily, it's a sign of internal corrosion or a much more serious problem.
CRITICAL WARNING: Transmission Cooler Failure (The "Strawberry Milkshake")
The single most important issue for 2001-2007 MDX owners is the failure of the internal automatic transmission fluid (ATF) cooler. Inside your radiator, a separate chamber cools your transmission fluid. Over time, the wall between the coolant and the ATF can corrode and break.
When this happens, high-pressure transmission fluid floods into the low-pressure coolant, and coolant mixes into the transmission. This creates a pink, frothy mess that looks like a strawberry milkshake, which you may see in your radiator or coolant reservoir. This contamination will quickly destroy the clutches and internal components of your automatic transmission, leading to a repair that costs thousands of dollars. Replacing an aging radiator is cheap insurance against this catastrophic failure.
🎬 See a mechanic's warning about the transmission cooler failure.Choosing the Right Aftermarket Radiator
You don't need to buy a radiator from the Acura dealer to get a quality part. The aftermarket offers several excellent options that meet or exceed original equipment (OE) quality. Here’s how the common brands stack up for your MDX.
Tier 1: OEM Equivalent
These brands are known to be original equipment suppliers for Honda/Acura and offer the best fit and quality for a direct replacement.

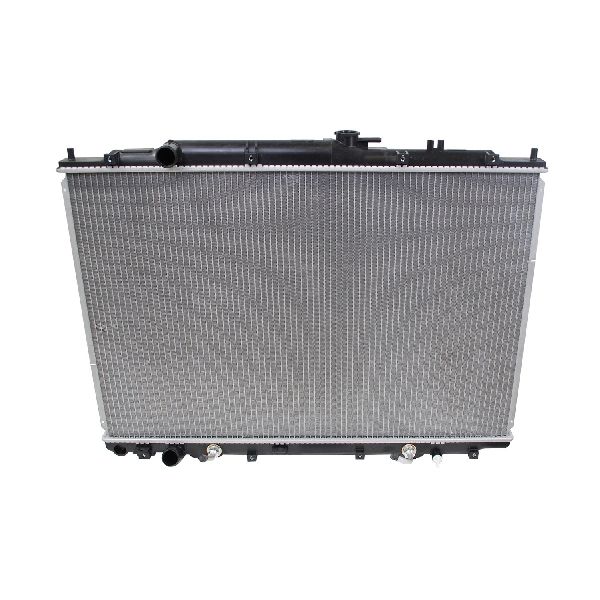

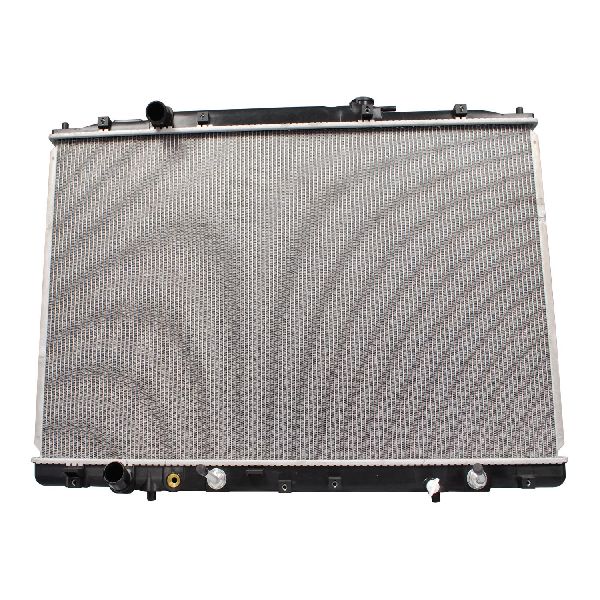

- Denso: Denso is the original manufacturer for many Honda and Acura parts. Choosing a Denso aftermarket radiator is the closest you can get to the original part that came on your MDX from the factory. It is widely considered the top choice for quality and reliability.
Tier 2: Quality Aftermarket
These brands have a strong reputation for producing reliable, high-quality parts that offer a great balance of performance and price.

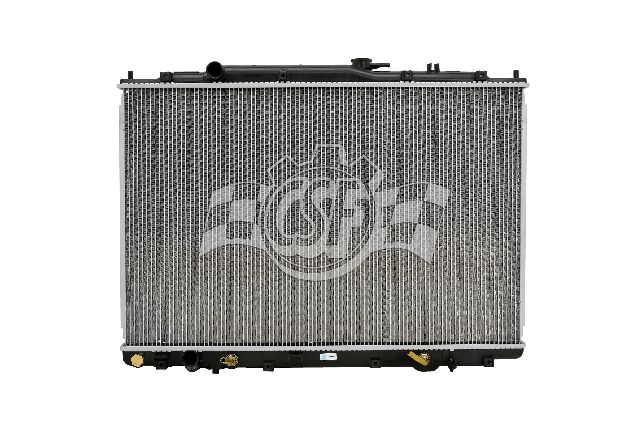

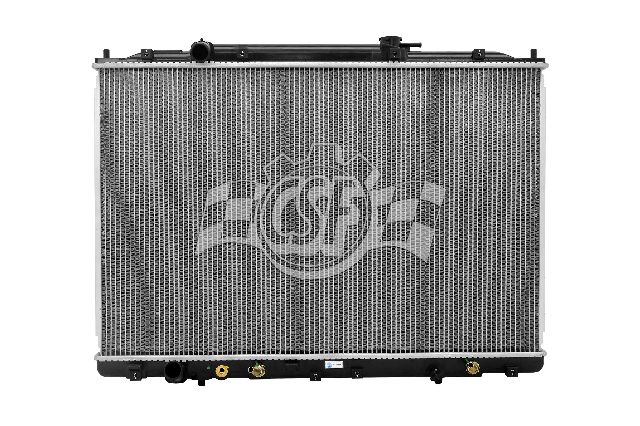

- CSF Radiator: CSF is a well-respected brand in the cooling world, known for quality construction that fits correctly.

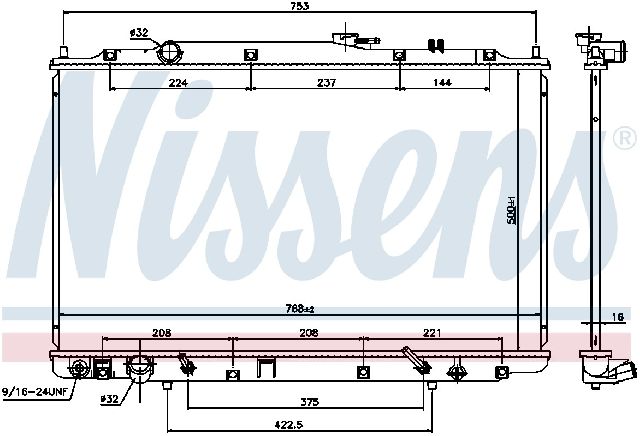

- Nissens: A strong European brand with a reputation for excellent engineering and durability.
Tier 3: Standard & Economy
These brands are budget-friendly and can be a good choice if you need a functional replacement at a lower cost. Quality can be more variable, but they get the job done.
- Spectra: A very common aftermarket brand. Many owners and shops use them with good results, though some report a shorter lifespan compared to premium brands.

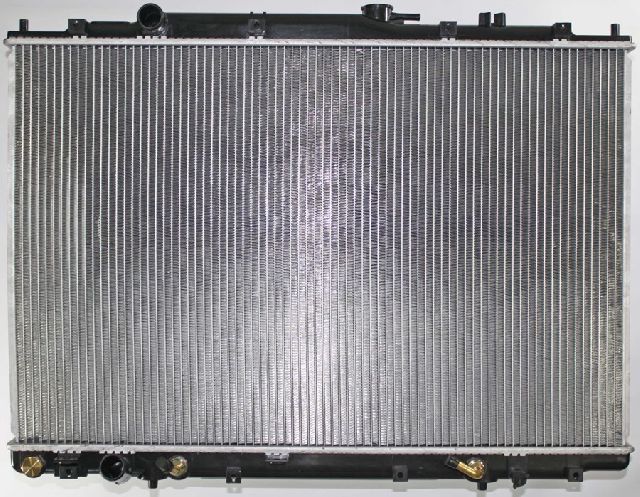

- APDI, Global Parts, Onix, One Stop Solutions: These brands provide functional, cost-effective replacements that meet basic requirements.
Pro Tip: Replace More Than Just the Radiator
While you have the cooling system drained and accessible, it is highly recommended to also replace the upper and lower radiator hoses, the thermostat, and the radiator cap. These parts wear out over time and are inexpensive to replace during a radiator job, preventing future leaks and failures.
🎬 Watch: Step-by-step guide to replacing your radiator and thermostat.Frequently Asked Questions
What is the "strawberry milkshake" failure?
This is a slang term for when the internal transmission cooler inside the radiator fails, causing coolant and automatic transmission fluid to mix. The resulting pink, milky fluid contaminates and destroys the transmission, requiring a very expensive replacement. This is the #1 reason to proactively replace an old radiator on a first-generation MDX.
What kind of coolant should I use in my 2001-2007 MDX?
You should only use Honda/Acura Type 2 Antifreeze/Coolant. This is a blue-colored, pre-mixed coolant specifically designed for your vehicle's engine and cooling system components. Do not mix it with other colors or types of coolant.
Is replacing the radiator a DIY job?
For someone with basic tools and mechanical experience, yes. The process involves draining the coolant, removing plastic covers, disconnecting hoses and fan assemblies, and unbolting the radiator. The most important step after installation is to properly bleed all air from the cooling system to prevent overheating.
Were there any recalls on the radiator for this MDX?
No, there have been no official NHTSA recalls specifically for the radiator on the 2001-2007 Acura MDX. The known issue of transmission cooler failure is a well-documented problem among owners and mechanics but was never subject to a recall.
Helpful Videos
Technical Specifications
OEM Part Numbers: 19010-PGK-A51 19010-PGK-A01 19010-RDJ-A52
All radiators for the 2001-2007 Acura MDX feature an aluminum core with plastic end tanks. They are a crossflow design and include an integrated engine oil cooler and an automatic transmission fluid cooler.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
