Spark Plug Guide for the 2001-2007 Aston Martin Vanquish
Keep your V12 engine running smoothly by understanding the right spark plugs for your Vanquish.
- Spark plug replacement is a major, labor-intensive job (10+ hours) requiring removal of the intake manifolds.
- It is highly recommended to replace all 12 ignition coils and intake gaskets at the same time to avoid repeat labor costs.
- Use only high-quality Iridium or Platinum spark plugs from reputable brands like NGK or Bosch; do not use standard copper plugs.
- A flashing check engine light indicates a severe misfire that can damage catalytic converters; do not continue driving.
Symptoms of Failing Spark Plugs
The V12 engine is known for its smoothness, so the signs of a bad spark plug are often noticeable. A single failing plug means one of the twelve cylinders isn't firing correctly, which leads to a misfire. Look out for these common symptoms:
- Rough Idle: The engine may vibrate or shake more than usual when stopped.
- Engine Misfires: You might feel a hesitation, stumble, or jerky sensation during acceleration. This can trigger a check engine light with codes like P0300 (random misfire) or P0301-P0312 for specific cylinders. 🎬 See how to use an OBD reader to monitor misfire counts
- Reduced Power: The car may feel sluggish and less responsive than normal.
- Worse Fuel Economy: An inefficient spark makes the engine burn more fuel.
A Note on Misfires
If your check engine light is flashing, it indicates a severe misfire. You should not drive the vehicle. Continuing to drive with a constant misfire can allow unburnt fuel to enter the exhaust system, potentially damaging the expensive catalytic converters.
Choosing the Right Aftermarket Spark Plug
The original equipment (OEM) spark plugs for the Vanquish V12 were made by NGK. While you can buy plugs in an Aston Martin box from a dealer, high-quality aftermarket plugs from NGK or other top brands can offer the same performance, often at a better price. Given the complexity of the replacement job, this is not a part to save money on. Stick to reputable brands.
Brand & Material Tiers

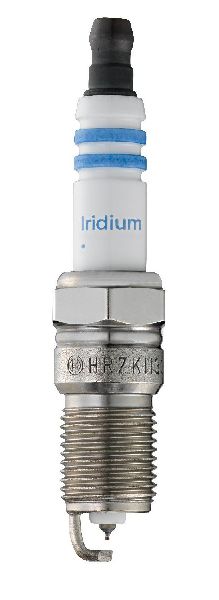

- Top Tier (Iridium): Brands like NGK and Bosch offer iridium spark plugs. Iridium is a very hard material that allows for a fine-wire center electrode, creating a more focused and consistent spark. This improves throttle response and offers the longest service life, which is a major benefit considering the high labor cost to replace them.
- Mid Tier (Platinum): The original plugs were often platinum-tipped. NGK, Bosch, Autolite, and Champion offer high-quality double platinum plugs that are excellent OEM-equivalent replacements. They provide a long service life and reliable performance.
- Standard Tier (Copper): Copper plugs, sometimes offered by brands like Motorcraft, are not recommended for this engine. The high-compression, high-performance V12 would wear them out extremely quickly, leading to poor performance and requiring another expensive replacement job far too soon.
Replace Coils and Gaskets at the Same Time

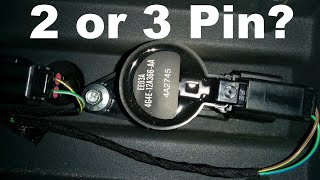

The spark plug replacement on the V12 engine is very labor-intensive, requiring the removal of the intake manifolds. Because of this, it is strongly recommended to replace all 12 ignition coils 🎬 Watch: How to identify 2-pin vs 3-pin coil packs and the intake manifold gaskets at the same time as the spark plugs. The main cost is the labor, and replacing these parts proactively prevents you from having to pay for the same 10+ hour job again if a coil or gasket fails soon after.
Known Issues, Recalls, and TSBs
Our search found no recalls or Technical Service Bulletins (TSBs) from the NHTSA specifically related to spark plugs for the 2001-2007 Aston Martin Vanquish. However, owners on forums frequently discuss misfires caused by failing spark plugs and ignition coils. Some owners have also noted that oil from a leaking cam cover gasket can foul the spark plug wells, leading to premature coil failure and misfires. It is wise to inspect for oil leaks when changing the plugs.
Cost Comparison
The primary cost of this job is the extensive labor required. Estimates are based on a 10+ hour job.
| Item | Estimated Cost |
|---|---|
| New OEM Spark Plugs (Set of 12) | $400 - $550 |
| New Aftermarket Spark Plugs (Set of 12) | $42 - $248 |
| Shop Labor | $1800 - $3000+ |
| Total Job (with Aftermarket Plugs) | $1842 - $3248+ |
Frequently Asked Questions
How often should I replace the spark plugs?
The recommended service interval for spark plug replacement on the V12 engine is typically every 7 years or at major service intervals like 45,000 or 70,000 miles. However, if you experience misfiring, they may need to be replaced sooner.
Is this a DIY job?
For most owners, this is not a recommended DIY job. It is rated 5/5 for difficulty and can take a professional mechanic over 10 hours. The process involves removing the intake manifolds and requires special care to avoid damaging other components.
Should I use pre-gapped spark plugs?
Yes, high-quality plugs from brands like NGK and Bosch usually come pre-gapped for the application. While they are typically correct out of the box, it is a good practice to verify the gap with a feeler gauge before installation. 🎬 Watch: How to prepare and install plugs on an Aston V12 The correct gap is critical for performance.
What is the OEM part number for the spark plugs?
Part numbers can vary slightly by model year and specific model (Vanquish vs. Vanquish S). Common OEM part numbers for this era include 07-85126-PK, 5R13-12405-BA-PK, and the corresponding NGK number PTR6D-13. Always verify the correct part number for your specific VIN before purchasing.
Helpful Videos
Technical Specifications
OEM Part Numbers: 07-85126-PK 5R13-12405-BA-PK 785126PK

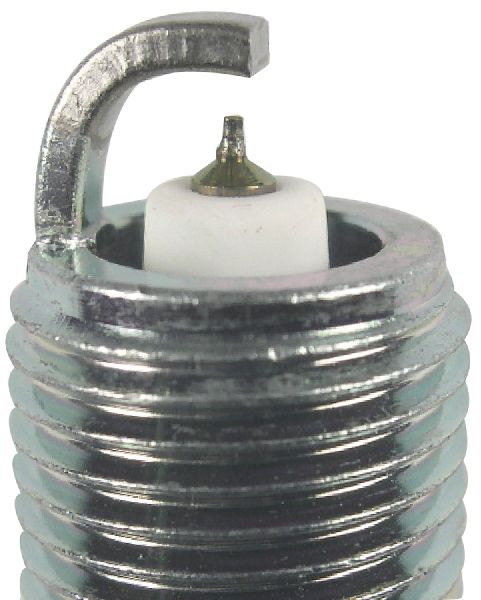

Material: Iridium or Platinum. Thread Size: M14. Seat Type: Tapered. Hex Size: 16mm (5/8"). The OEM plug is typically an NGK PTR6D-13 or equivalent.
