A Guide to Replacing Ignition Coils on the 2001-2007 BMW 325i
Diagnose and fix common misfires and rough idling by understanding your ignition coil options.
- A flashing check engine light with a rough running engine is a classic sign of ignition coil failure and should be addressed immediately to prevent catalytic converter damage.
- For OE-level quality, choose coils from Bosch, Delphi, or NGK. Delphi is often considered an upgrade for the 2006+ models.
- It is strongly recommended to replace all six coils and spark plugs at the same time for reliability and to save on future labor.
- Check your valve cover for oil leaks, as this is a very common root cause of ignition coil failure on the 325i.
Is Your BMW 325i Misfiring or Idling Rough?
If your 2001-2007 BMW 325i has started to run poorly, the ignition coils are a primary suspect. These parts are a common failure item due to constant exposure to engine heat and vibration. A faulty coil can cause everything from an annoying vibration to serious engine performance issues. The most frequent cause of failure on these engines is often an oil leak from the valve cover gasket, which drips onto the coils and degrades their plastic housings and rubber boots over time.
Warning: Do Not Ignore a Misfire
While you can drive with a single bad coil, it's not recommended for long. When a cylinder misfires, unburned fuel is sent into the hot exhaust system. This can overheat and destroy your expensive catalytic converters, turning a simple repair into a much costlier one.
Choosing the Right Aftermarket Ignition Coil
With many brands available, choosing a replacement can be confusing. They can be grouped into tiers based on their quality and relationship to the original BMW parts.
Tier 1: OE-Equivalent Brands (Bosch, Delphi, NGK)
These brands are known to be Original Equipment (OE) suppliers for BMW, meaning the parts they sell are often identical to what you would get from a dealership, just in a different box.
- Bosch: A long-time OE supplier for BMW. While some older versions had issues, the current production Bosch coils are a reliable, factory-correct choice.
- Delphi: BMW used Delphi as an updated or revised coil to solve issues with earlier Bosch models, particularly on the newer N52 engine (2006+). Many consider Delphi the preferred upgrade.
- NGK: A top-tier Japanese brand highly respected for ignition components. Pairing NGK coils with NGK spark plugs is a popular and reliable combination.
Tier 2: Quality Aftermarket (Hella, Hitachi, Holstein)
These brands produce high-quality parts that are designed to meet or exceed original specifications. They are a solid choice if you're looking for a balance between cost and proven performance. Holstein, for example, promotes its rigorous testing and offers a strong warranty.
Tier 3: Budget-Friendly (URO Parts, DriveWire, etc.)
These brands offer the most affordable path to getting your car back on the road. While they can be a good value, their long-term durability may not match that of the OE-tier brands. If choosing a budget option, it is especially important to follow the best practice of replacing all six coils at once.
Pro Tip: Replace Coils and Plugs Together
If one ignition coil has failed on a high-mileage engine, the others are likely near the end of their service life. Best practice is to replace all six coils at the same time to ensure consistent performance and avoid repeated repairs. Since you already have everything apart, it is the perfect time to replace your spark plugs as well.
🎬 Follow this walkthrough to replace both your plugs and coils.Cost to Replace BMW 325i Ignition Coils
| Repair Option | Estimated Cost |
|---|---|
| DIY - Aftermarket Parts | $28.97 - $388.70 (for one to six coils) |
| Independent Repair Shop | $190 - $274 (for a single coil replacement) |
| Dealership | $400 - $700+ (for a single coil replacement) |
Costs are estimates and will vary based on your location, the specific parts chosen, and the number of coils being replaced.
Frequently Asked Questions
Should I replace all six ignition coils at once?
Yes, it is highly recommended. The coils on your engine have all been exposed to the same heat and wear for the same amount of time. If one has failed, the others are likely to fail soon. Replacing them all at once saves you from future breakdowns and repeated labor.
What's the difference in replacement for E46 (2001-2005) vs. E90 (2006-2007) models?
The basic process is the same, but accessing the coils differs. On the E46 (M54 engine), you remove simple plastic engine covers. 🎬 Watch this step-by-step guide to replacing E46 ignition coils. On the E90 (N52 engine), the job is slightly more involved, requiring the removal of the cabin air filter housing and underlying plastic cowls to reach the coils. Both are considered 🎬 See how to access and replace coils on E90 models. easy DIY jobs.
Is Bosch or Delphi a better brand for my 325i?
Both are excellent OE-quality choices. Historically, BMW switched from Bosch to Delphi to address reliability issues, particularly for the 2006+ N52 engine. For this reason, many owners prefer Delphi as an 'upgraded' part. However, modern Bosch coils are also very reliable. You cannot go wrong with either brand.
Can a bad ignition coil cause other damage?
Yes. The most significant risk is damage to your catalytic converters. A misfiring cylinder allows unburned fuel to pass into the exhaust, where it can superheat and melt the internal structure of the converters, leading to a very expensive repair.

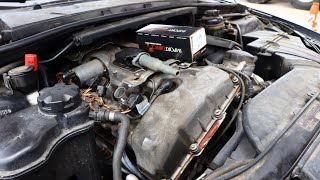

Helpful Videos
Technical Specifications
OEM Part Numbers: 12137594937 12131712219 12138657273 12137571643 0221504470 0221504100
This vehicle uses one 'pencil' style ignition coil per cylinder, for a total of six coils. The specific part number may vary between the E46 (M54 engine) and E90 (N52 engine) generations.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
