BMW M3 Engine Coolant Temperature Sensor Guide (2001-2007)
A faulty coolant sensor can hurt your S54 engine's performance and fuel economy; here's how to choose the right replacement.
- The E46 M3 has two coolant sensors; the one in the cylinder head is critical for engine performance and difficult to replace.
- Symptoms of failure include poor fuel economy, rough idle, hard starting, and a Check Engine Light.
- Due to the high labor cost of replacement, choose a high-quality aftermarket brand like Vemo or Delphi, or a Genuine BMW part.
- There are no active recalls or TSBs for this specific part, but it is a common failure item.
Symptoms of a Failing M3 Coolant Temperature Sensor
The main coolant temperature sensor on the S54 engine is a known failure point. When it starts to go bad, it sends incorrect data to the engine's computer, which can lead to a variety of noticeable problems. Ignoring these symptoms can lead to poor performance, bad fuel economy, and potentially leave you stranded.
🎬 Watch: A breakdown of common symptoms and replacement costs.Common Failure Symptoms
- Poor Fuel Economy: If the sensor incorrectly tells the computer the engine is cold, the computer will enrich the fuel mixture, causing the car to use more gas than necessary.
- Black Smoke from Exhaust: A very rich fuel mixture may not burn completely, resulting in black smoke from the tailpipe.
- Check Engine Light: A faulty sensor will almost always trigger a Check Engine Light and store diagnostic trouble codes. Common codes include P0116, P0117, P0118, and the BMW-specific code 69 (105) for an implausible signal.
- Hard Starting: The engine may be difficult to start, particularly when it's partially warm (not fully cold, but not at full operating temperature).
- Rough Idle and Poor Performance: With incorrect fuel and timing adjustments, the engine may idle poorly, hesitate, or feel down on power.
Choosing the Right Aftermarket Sensor for Your M3
Not all aftermarket sensors are created equal. For a critical part like the main temperature sensor on your M3—which requires significant labor to replace—it's wise to choose a quality part. We've grouped the available brands into tiers based on community feedback and brand reputation for BMW electronics.
Tier 1: OEM Supplier & Premium Aftermarket
These brands are known to be Original Equipment Manufacturers for BMW or have a stellar reputation for quality and reliability. For the difficult-to-access cylinder head sensor, choosing from this tier is highly recommended.
- Vemo: A well-regarded brand that produces a wide range of electronics for European vehicles.
- Delphi: A major global parts manufacturer with a strong reputation for quality electronics.
- NGK: While famous for spark plugs, NGK also produces high-quality sensors and is a trusted name.
- Beck Arnley: Often re-packages parts from OEM suppliers, making them a reliable choice. Forum discussions generally view them as a decent option.
Tier 2: Standard Aftermarket
These brands offer a balance of cost and quality and are a good fit for many repairs. They are a solid choice, especially for the easier-to-replace radiator outlet sensor.
- Standard Ignition (SMP): A long-standing company that produces reliable replacement parts.
- Walker Products: A large manufacturer of fuel and engine management components.
- Four Seasons: Primarily known for climate control parts, but offers a range of engine management components.
Tier 3: Budget-Focused Brands
Brands like URO Parts and others in the lowest price bracket have a mixed reputation in the BMW community. While they can be suitable for simple, non-critical components, they are generally not recommended for sensitive electronics that require extensive labor to install. A premature failure of a budget sensor would mean repeating a difficult and costly repair.
Cost of Replacing an E46 M3 Coolant Temperature Sensor
The cost can vary significantly based on which of the two sensors you are replacing and whether you do the work yourself. The main sensor in the cylinder head is labor-intensive, while the radiator hose sensor is a quick job.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Sensor | $19 - $55 |
| Shop Labor (Cylinder Head Sensor) | $300 - $500+ |
| Shop Labor (Radiator Hose Sensor) | $50 - $100 |
A Note on Known Issues
While searches for official recalls or Technical Service Bulletins (TSBs) for the 2001-2007 M3's coolant sensor came up empty, forum discussions confirm that sensor failure is a common issue for E46 models. There are no specific recalls from the NHTSA for this part on this vehicle.
Frequently Asked Questions

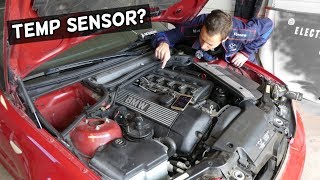

Where is the main engine coolant temperature sensor located?

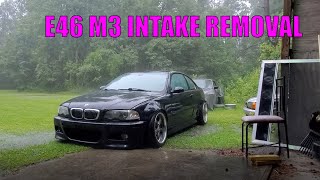

The main sensor is located on the cylinder head, underneath the intake air manifold. Accessing it requires removing the entire intake manifold, 🎬 See this walkthrough on how to remove the intake manifold. making it a challenging job.
Can I replace the main coolant temperature sensor myself?
This is an advanced DIY project. Because it requires removing the intake manifold, it is rated as difficult and can take several hours. If you are not experienced with this level of engine work, it is best left to a professional mechanic. The radiator outlet sensor, however, is very easy to replace and is considered a beginner-level task.
🎬 Watch: How to replace the coolant sensor on an E46.What's the difference between the two coolant sensors?
The main sensor in the cylinder head provides data for engine management (fuel, timing). The second sensor, located in the lower radiator hose, is used by the DME primarily to control the electric cooling fan speed. A failure in the main sensor has a much greater effect on how the car drives.
Should I replace anything else at the same time?
Since replacing the main sensor requires removing the intake manifold, it is an excellent time to inspect and replace other "while you're in there" parts. This includes the six intake manifold gaskets, the idle air control valve and its hoses, and any vacuum lines that may be brittle.
Helpful Videos
Technical Specifications
OEM Part Numbers: 13621433076
This guide primarily concerns the main Engine Coolant Temperature Sensor located in the cylinder head. A secondary sensor (PN: 13621433077) is located in the lower radiator hose.
