2001-2007 BMW M3 HVAC Blower Motor Resistor (FSU) Replacement Guide
Solve your M3's erratic fan speed and climate control problems by understanding and choosing the right replacement Final Stage Unit.

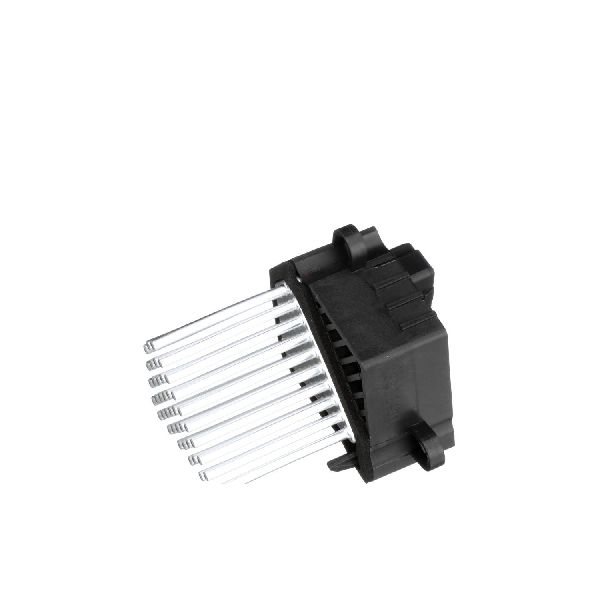

- This part is called a Final Stage Unit (FSU) or 'hedgehog' and is a very common failure item on the E46 M3.
- Symptoms include erratic fan speeds, a fan that won't turn off (draining the battery), or a fan that won't turn on at all.
- The original part has a flawed design; look for an aftermarket replacement with an updated design for better reliability.
- Replacement is an easy DIY job that takes under an hour, saving significant labor costs.
Is Your BMW M3's Fan Acting Up? It's Probably the Final Stage Unit
If your E46 M3's climate control fan seems to have a mind of its own, you're not alone. The blower motor resistor, better known in the BMW community as the Final Stage Unit (FSU), is a notoriously common failure item on this platform. Symptoms often start small but can become a major annoyance and even a safety issue when you can't defrost your windows. Understanding why it fails and how to choose a good replacement can save you from future headaches.
Symptoms of a Failing FSU
A bad FSU can cause a range of frustrating issues. Watch for these common signs:
- Erratic Fan Speed: The fan speed changes randomly, speeding up and slowing down on its own. This is often described as a "pulsing" airflow.
- Fan Only Works on High: The blower only operates at the highest setting, or not at all on lower speeds.
- Blower Won't Turn On: No air comes from the vents, regardless of the fan speed setting.

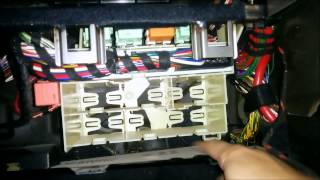

- Blower Won't Turn Off: The fan continues to run even after you've turned the car off and removed the key. 🎬 See what happens when a faulty FSU turns on by itself. This can lead to a dead battery.
Parasitic Battery Drain Warning
One of the most serious symptoms of a failing FSU is its tendency to stay active after the car is shut down, causing a parasitic draw that drains the battery overnight. 🎬 Watch how to diagnose a parasitic battery drain from the FSU. If you suspect your FSU is bad and are experiencing a dead battery, it's wise to replace the part promptly.
Choosing the Right Aftermarket FSU
The original factory FSU in the E46 M3 is known to be a faulty design, so simply buying another OEM unit doesn't guarantee reliability. Many aftermarket manufacturers have since released updated versions that are often more durable. When shopping, consider these tiers:

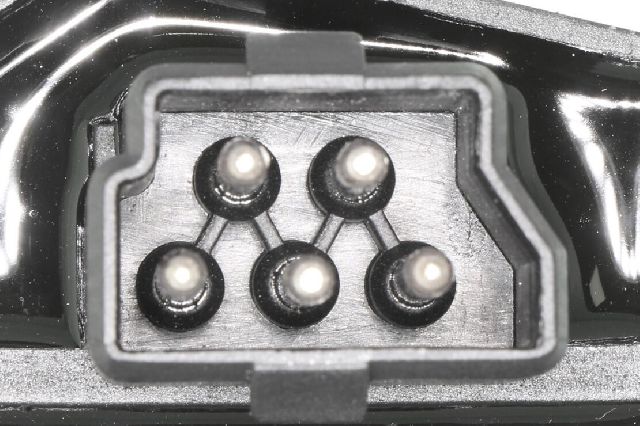

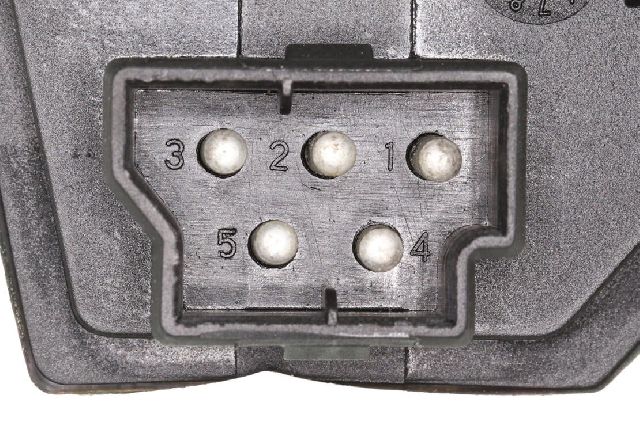

- OEM-Supplier Brands (Vemo, Behr): Brands like Vemo and Behr are often the original equipment manufacturers for BMW. Choosing a part from one of these suppliers usually ensures a good fit and an updated, reliable design.

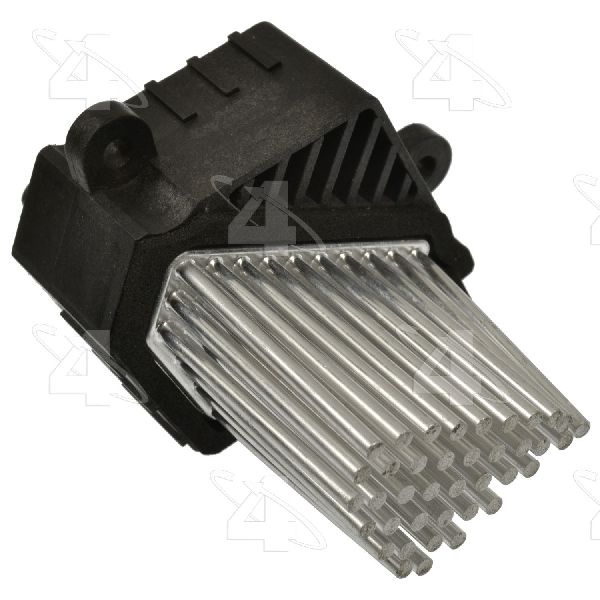

- Quality Aftermarket (Four Seasons, Standard Ignition): These are reputable brands known for producing reliable replacement parts that meet or exceed original specifications. They offer a solid balance of quality and value.

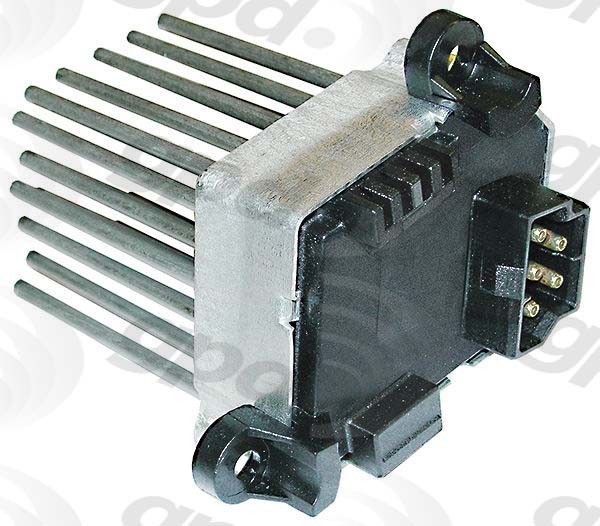

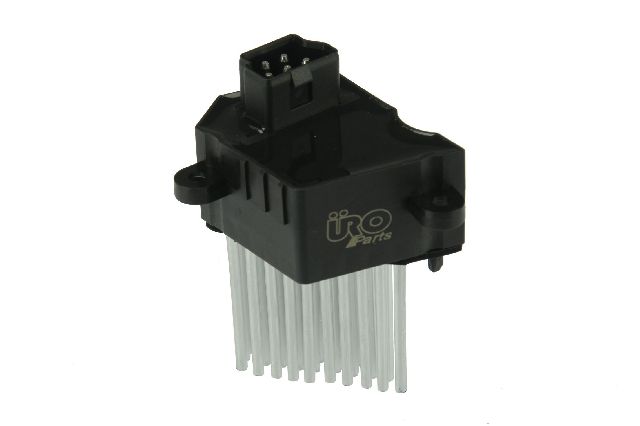

- Economy Options (URO Parts, Global Parts): These brands provide a budget-friendly solution. While they can be a good value, some forum discussions suggest that the long-term reliability can be inconsistent compared to higher-priced options. For a part that is difficult to access, it may be worth spending more for a part you won't have to replace again soon.
Pro Tip: Check the Wiring Harness
Over time, the electrical connector for the FSU can develop corrosion or overheat, which can cause a new FSU to fail prematurely. When you replace your FSU, always inspect the wiring harness and its connector for any signs of melting, discoloration, or damage.
Cost of Replacing Your M3's FSU
Replacing the FSU is a cost-effective repair, especially if you do it yourself. The job is considered easy, requiring only basic tools and about 30-60 minutes of your time.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket FSU | $58 - $160 |
| New OEM FSU | $100 - $180 |
| Shop Labor | $100 - $200 |
Frequently Asked Questions
What is the difference between a blower motor resistor and a Final Stage Unit?
For the 2001-2007 BMW M3, these terms refer to the same part. "Final Stage Unit" (FSU) or "Final Stage Resistor" (FSR) are the more common and accurate names used by BMW technicians and enthusiasts for this specific vehicle.
Is this a difficult part to replace myself?
No, it is not considered a difficult job, but it is awkward. The FSU is located in the passenger footwell, behind the glove box, and requires you to work in a tight space. The replacement involves removing the glove box and a few trim panels to access the unit. Most DIYers can complete the job in under an hour.
🎬 Follow this step-by-step DIY guide to replace your blower motor resistor.Are there any recalls for the E46 M3 blower motor resistor?
There are no specific recalls for the FSU itself on the 2001-2007 M3. However, BMW did issue recalls (like NHTSA 17V-676 and 19V-579) for the blower motor wiring harness on other models due to a fire risk from overheating at the connector. While the E46 M3 was not included, this highlights the importance of inspecting the wiring connector for damage when replacing your FSU.
Why do new replacement FSUs sometimes fail quickly?
Premature failure of a new FSU is often caused by two things: an aging blower motor or a bad electrical connection. A blower motor that is old and struggling to spin can draw too much current, overheating and burning out the new FSU. Similarly, a corroded or loose wiring connector can create excess heat and destroy the resistor.
Helpful Videos
Technical Specifications
OEM Part Numbers: 64116923204 64116929486 64118385549 64116920365 64118377579 64116931680 64118364173 64118380580
Controls blower motor fan speed by regulating electrical current. Located in the passenger footwell area, inserted into the HVAC housing.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
