A Guide to Ignition Coils for the 2001-2007 BMW M3 (E46)
Keep your S54 engine running smoothly by understanding how to choose the right ignition coils.
- Always check for oil in the spark plug wells; a leaking valve cover gasket is a common cause of coil failure and must be fixed.
- For reliability on the S54 engine, stick with proven OEM-equivalent brands like Delphi, Bosch, or NGK.
- It is best practice to replace all six ignition coils and spark plugs at the same time for consistent performance.
- This is an easy DIY job that most owners can complete in under an hour with basic tools.
Signs of a Failing Ignition Coil
When an ignition coil starts to fail on your E46 M3, the symptoms are hard to ignore. Because the S54 is a high-strung performance engine, it is very sensitive to ignition problems. You will likely notice one or more of the following signs:
- Engine Misfires: This is the most common symptom. The engine may feel rough, shake at idle, or sputter during acceleration.

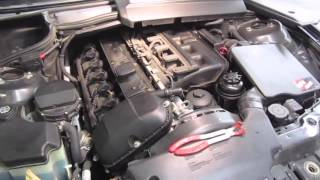

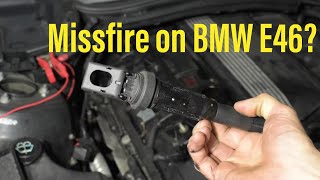

- Check Engine Light: A failing coil will almost always trigger a misfire code (e.g., P0300-P0306) and illuminate the check engine light. 🎬 Watch this walkthrough on how to diagnose an E46 misfire.
- Loss of Power: With one cylinder not firing correctly, your M3 will feel noticeably sluggish and less powerful.
- Poor Fuel Economy: The engine's efficiency drops when a cylinder isn't burning fuel properly, causing you to use more gas.
- Difficulty Starting: In severe cases where multiple coils have failed, the engine may be difficult to start or may not start at all.
Check for Oil Leaks!
A very common cause of ignition coil failure on the S54 engine is a leaking valve cover gasket. Oil seeps into the spark plug wells, soaking the bottom of the coil boot and causing it to degrade and fail. If you find oil on your coils when replacing them, you must also replace the valve cover gasket and spark plug tube seals to prevent repeat failures.

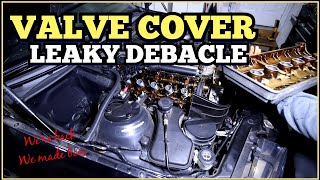

🎬 See how to replace the valve cover and spark plug gaskets.Choosing the Right Aftermarket Ignition Coil
Not all aftermarket coils are created equal. For a sensitive engine like the S54, choosing a quality part is crucial. BMW itself has used different suppliers over the years, including Bremi, Bosch, and Delphi.
Tier 1: OEM & OE-Equivalent Brands
These are your safest and most reliable choices. They are made by the same companies that supply parts directly to BMW.
- Delphi: Widely considered the current go-to brand, even used by BMW dealerships for replacements. Many owners have reported excellent reliability.
- Bosch: A long-time OEM for BMW and a very solid choice. They were the factory-installed part on many later E46 M3s.
- NGK: While famous for spark plugs, NGK also produces high-quality ignition coils that are a trusted option.
- Eldor: Another OEM supplier for BMW, highly regarded for quality, though sometimes harder to source than Bosch or Delphi.
Tier 2: Standard Aftermarket Brands
This category includes brands like DriveWire, Global Parts, Hitachi, Holstein, Motorad, Spectra, Standard Ignition, True Tech, and Walker Products. While more budget-friendly, these brands do not have the same established reputation in the M3 community. Using them can be a gamble; some may work fine, but others have a higher risk of premature failure, leading to misfires sooner than expected. For a high-performance engine, sticking with a Tier 1 brand is strongly recommended.
Pro Tip: Replace as a Full Set
It is highly recommended to replace all six ignition coils at the same time. Coils are subjected to the same heat and wear cycles, so if one has failed, the others are likely nearing the end of their service life. Replacing them all at once ensures consistent performance and prevents you from having to do the same job again in a few months.
Known Issues & Service Bulletins
BMW issued a service action for 2001-2003 M3 models that were factory-equipped with Bremi-brand ignition coils. These coils were found to have a durability problem that could lead to misfires and a rough running engine. BMW extended the warranty on these specific coils to 8 years with unlimited mileage and would replace them with an improved part. While this warranty period has long expired, it's a good indicator that early model year cars may have had less reliable original coils.
Cost of Replacing Ignition Coils
Here is an estimated cost breakdown for replacing a set of six ignition coils on a 2001-2007 BMW M3.
| Part Type | Estimated Cost (Set of 6) |
|---|---|
| New OEM (Bosch/Delphi) | $200 - $400 |
| New Aftermarket | $175 - $390 |
| Shop Labor | $75 - $150 |
Frequently Asked Questions (FAQ)
Is it difficult to replace the ignition coils myself?
No, this is a very beginner-friendly DIY job. The coils are easily accessible after removing the plastic engine cover and cabin filter housing. Basic hand tools are all that's required, and the entire job can typically be done in under an hour.
Should I put dielectric grease on the new coils?
This is a topic of debate. Some mechanics use a small amount inside the boot to prevent it from getting stuck to the spark plug. However, others advise against it on these 'pencil' style coils, as too much grease can cause the coil to walk itself off the spark plug over time. If you do use it, apply only a very small amount to the inside rim of the boot.
Do I need to replace my spark plugs at the same time?
It is highly recommended. The service interval for spark plugs on the S54 is relatively short, and since you already have everything apart to access the coils, it's the perfect time to replace the plugs. This ensures your entire ignition system is fresh.

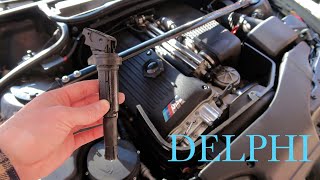

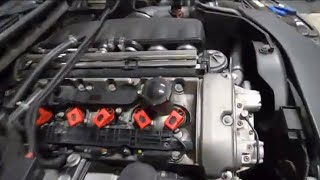

🎬 Watch: Full DIY guide for replacing spark plugs and coils.Can a bad ignition coil damage my engine?
Yes, if left ignored. Driving with a misfire allows unburnt fuel to enter the exhaust, which can overheat and damage the expensive catalytic converters. It also puts extra stress on other engine components. You should address a misfire as soon as possible.
Helpful Videos
Technical Specifications
OEM Part Numbers: 12137594937 12131712219 12137551260 12137562744 12137571643 12138616153

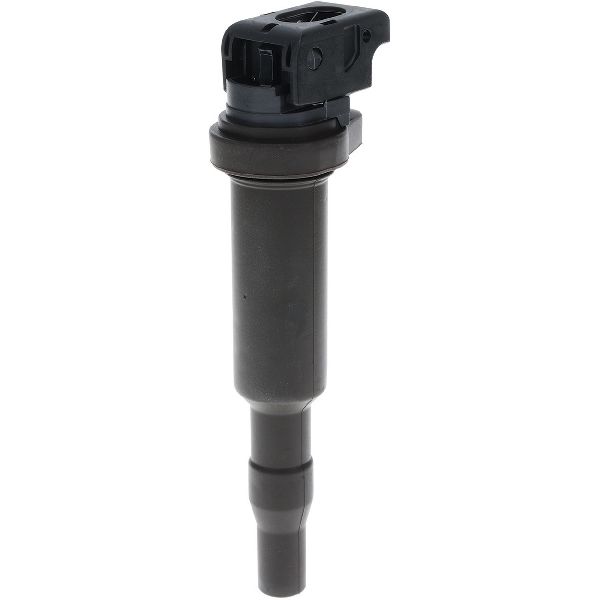

Coil-on-plug 'pencil' type ignition coil. One required per cylinder, six total for the S54 engine.
