A Guide to the 2001-2007 Chevrolet Express 3500 Throttle Body
Understanding common failures like 'Reduced Engine Power' and how to choose the right replacement throttle body for your van.
- The 'Reduced Engine Power' message is a primary symptom of throttle body failure on these vans.
- A throttle 'relearn' procedure is required after installation to ensure proper idle and performance.
- Always replace the throttle body gasket to prevent air leaks.
- Wiring near the throttle body connector is a known weak point; inspect it for damage during replacement.
Is Your Express Van Stalling or Losing Power?
If you own a 2001-2007 Chevrolet Express 3500, especially one with a 4.8L, 5.3L, or 6.0L V8 engine, you might eventually face issues with the fuel injection throttle body. A common and frustrating symptom is the "Reduced Engine Power" message appearing on your dashboard. This is a safety feature, often called 'limp mode,' that the van's computer activates when it detects a problem with a critical component like the throttle body. It limits your speed and acceleration to prevent engine damage, but it can make the van difficult to drive. 🎬 Watch: How to troubleshoot and fix Reduced Engine Power mode. Other signs of a failing throttle body include a rough or unstable idle, stalling at stops, hesitation when you press the gas, and the check engine light coming on.
Common Failure Symptoms & Related Codes
A faulty throttle body can trigger several diagnostic trouble codes (DTCs). If you see the check engine light, a mechanic can scan the computer for codes. Common codes related to throttle body failure on these vans include:
- P1516, P2101: These codes relate to the Throttle Actuator Control (TAC) module and often indicate a mismatch between the commanded throttle position and the actual position.
- P0120, P0121, P0220, P0221: These codes point to problems with the Throttle Position Sensor (TPS) circuits. The TPS tells the computer how open the throttle plate is.
- P2135: This is a throttle position sensor correlation code, meaning the two sensors inside are giving conflicting readings.
Known Issues and Technical Service Bulletins (TSBs)
General Motors has issued several TSBs related to throttle body issues on these trucks and vans. For example, TSB #11-06-04-007A addresses DTC P2135, which can be caused by a problem between the throttle position sensors. Another, #00-06-04-007A, was for early models that had a stiff accelerator pedal feel due to a tight throttle blade. While no specific safety recalls exist for the 2001-2007 Express 3500 throttle body itself, related special coverage adjustments for throttle position sensors have been issued for similar GM vehicles.
Choosing the Right Aftermarket Throttle Body
When replacing your throttle body, you have options ranging from budget-friendly to premium. The original equipment (OE) manufacturer for many GM vehicles is AC Delco. Aftermarket parts can offer comparable quality, often at a better price.
- Premium Aftermarket (Hitachi, Standard Ignition): Hitachi is a known OE supplier for many brands, and their parts are built to high standards. Standard Motor Products (SMP) is another well-respected brand known for making durable electronic components that often meet or exceed OE specifications.

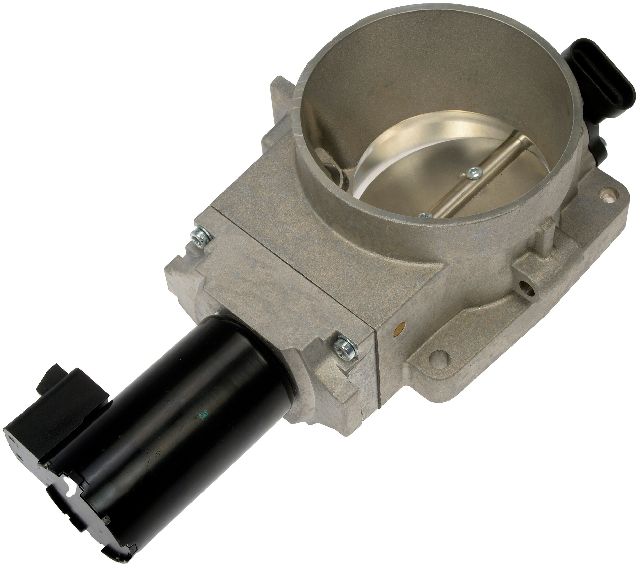

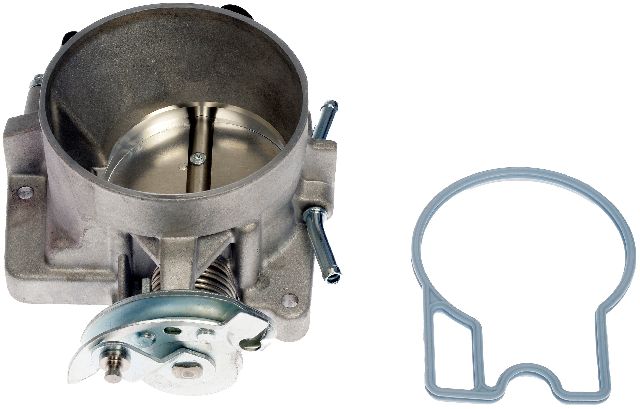

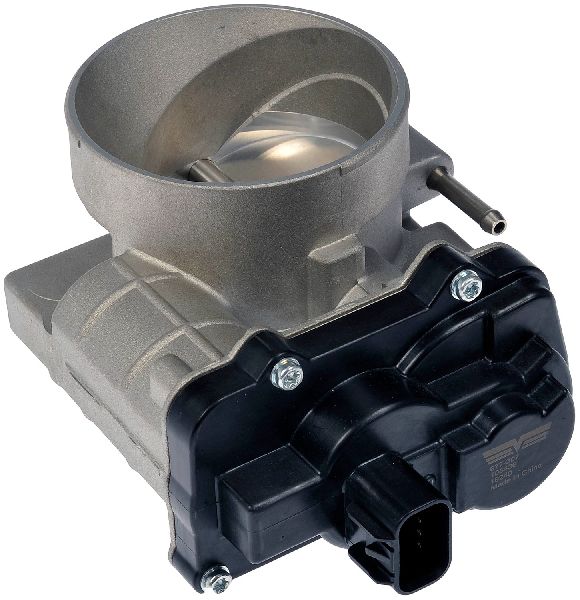

- Standard Aftermarket (Dorman, Cardone): Dorman is a popular aftermarket brand that often makes improvements on the original OE design and is a reliable choice. Cardone primarily offers remanufactured parts, where an old part is rebuilt with new components, but they also offer new units. These are solid, cost-effective options.
- Performance (Edelbrock): Brands like Edelbrock focus on increasing horsepower and throttle response. These are for owners looking to upgrade performance, not for a standard repair, and may not be a direct fit or emissions-legal in all states.
- Budget (Global Parts, various store brands): Many other brands are available that offer a lower price point. Quality can be mixed, so it's important to check warranties and reviews if considering this tier.
Cost to Replace the Throttle Body
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Throttle Body | $156 - $808 |
| New OEM (AC Delco) Throttle Body | $190 - $400 |
| Shop Labor for Installation | $100 - $200 |
Pro Tip: Always replace the throttle body gasket when you install a new unit to prevent vacuum leaks.
Frequently Asked Questions (FAQ)
Can I just clean my throttle body?
Sometimes, cleaning carbon buildup from the throttle plate and bore can solve minor issues like a rough idle. However, if the electronic components or the internal motor are failing, cleaning will not fix the problem and replacement is necessary. Be careful not to use harsh solvents that can damage the sensors.
🎬 See this guide on how to safely clean your throttle body.Do I need to do a 'relearn' procedure after replacement?
Yes, a throttle relearn procedure is almost always necessary. This allows the vehicle's computer to learn the new throttle body's closed and open positions. A common manual procedure involves turning the ignition on (without starting the engine) for a few minutes, turning it off, and then starting the engine to idle. If this doesn't work, a scan tool may be required to perform the reset.
🎬 Watch: Step-by-step walkthrough of the GM throttle relearn procedure.Is this a difficult part to replace myself?
For a moderately experienced DIY mechanic, replacing the throttle body is very feasible. It is typically located at the front of the engine, connected to the air intake tube. The job usually involves removing the air intake, disconnecting an electrical connector, and unbolting four bolts. The most important steps are ensuring you have the correct part and performing the relearn procedure afterward.
What's the difference between the throttle body and the throttle position sensor (TPS)?
The throttle body is the entire housing that contains the throttle plate and motor. The throttle position sensor (TPS) is a smaller component, often attached to or integrated within the throttle body, that measures the angle of the throttle plate. On these Express vans, the TPS is typically part of the complete throttle body assembly, so if the sensor fails, you usually replace the whole unit.
Helpful Videos
Technical Specifications
OEM Part Numbers: 12570800 12596575 12596576 12679525
Electronic throttle body assembly with integrated throttle position sensor (TPS). Primarily for GM V8 engines (4.8L, 5.3L, 6.0L, 8.1L). Bolt pattern and bore size vary by engine.
