Dodge Caravan & Grand Caravan A/C Expansion Valve Guide (2001-2007)
If your Caravan's A/C is blowing warm or acting strange, the expansion valve could be the culprit.
- Always replace the expansion valve and receiver/drier when installing a new A/C compressor to prevent damage and ensure warranty coverage.
- For 2001-2004 models, you must visually check if you need the top or bottom switch port design before ordering, or buy a universal-fit part.
- A failing expansion valve is often a symptom of a larger problem, like a contaminated system from a bad compressor.
- Replacement is not a simple DIY job as it requires specialized A/C service tools to handle the refrigerant legally and safely.
Symptoms of a Failing A/C Expansion Valve
When an expansion valve fails in your 2001-2007 Dodge Caravan, it usually gets stuck in either an open or closed position. This leads to very specific symptoms that can help you diagnose the problem.
- Warm or Tepid Air: This is the most common sign. If the valve is stuck closed or clogged, not enough refrigerant gets to the evaporator, and the air from your vents won't get cold.
- Inconsistent Temperatures: The air from the vents might switch between cold and cool or warm. This can happen if the valve is struggling to regulate the refrigerant flow correctly.
- Frost on A/C Components: If the valve is stuck open, it allows too much refrigerant into the evaporator. This can cause the evaporator, the A/C lines, or even the vents to accumulate frost or ice. You might see white mist coming from the vents.
- A/C Compressor Runs Constantly: A valve that is stuck open can send a signal that the system needs more cooling, causing the A/C compressor to run nonstop without actually cooling the cabin effectively.
Contamination is the Enemy
Often, an expansion valve doesn't just fail on its own. It gets clogged by debris from another failing component, most commonly the A/C compressor. If your compressor has failed internally (a condition known as 'Black Death'), it will send tiny metal shavings throughout the system, which will clog the new expansion valve and cause it to fail quickly. A full system flush is required in this case.
Choosing the Right Aftermarket Expansion Valve
When shopping for a new expansion valve for your Caravan, you'll find several brands. They generally fall into three quality tiers.
Tier 1: OEM & Premium Aftermarket (Mopar, Denso)
These are the highest quality options. Mopar is the original factory part, and Denso is a well-respected OEM supplier known for its reliability. If you want the best fit and longest life, these are your top choices. They are also the most expensive.

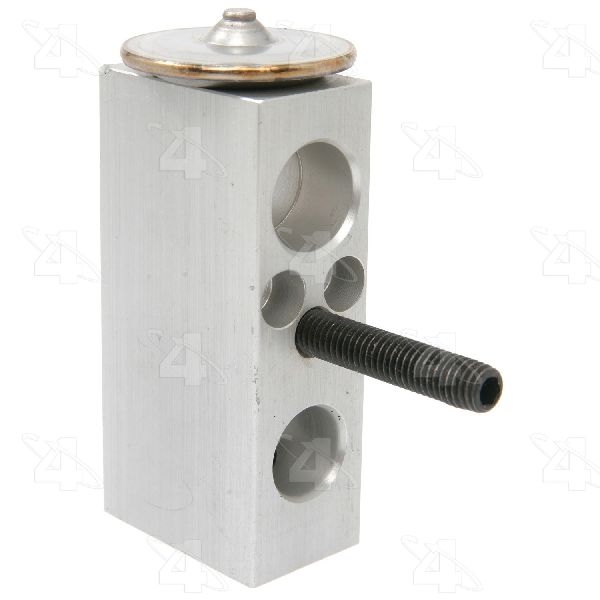

Tier 2: Standard Aftermarket (Four Seasons)
Four Seasons is a widely available and reputable aftermarket brand. It offers a good balance of quality and price for a daily driver. While generally reliable, they are mass-produced aftermarket parts and may not have the same stringent quality control as Denso or Mopar.
Tier 3: Economy Aftermarket (Global Parts, UAC)
Brands like Global Parts Distributors (gpd) and Universal Air Conditioner (UAC) are budget-friendly options. They can be a good choice if cost is the primary concern, but their long-term durability can be inconsistent. Some users report success, while others have experienced premature failures.
Common Ordering Mistake on 2001-2004 Models

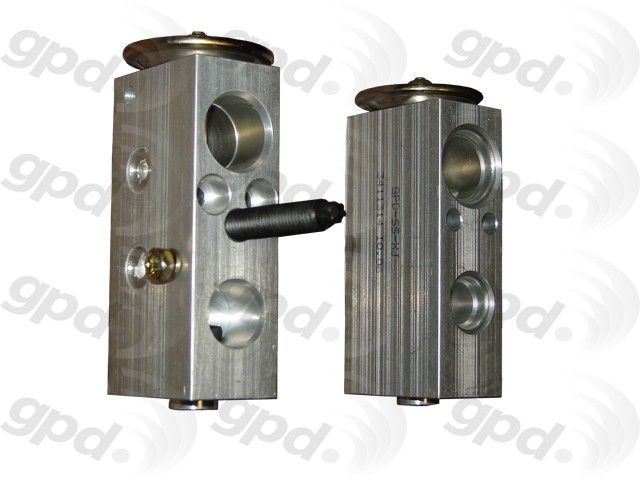

For 2001-2004 Caravans, Chrysler used two different front expansion valves that look identical except for the location of the pressure switch port (either top or bottom). You must visually inspect your old part before ordering to ensure you get the correct one. To solve this, Global Parts (gpd) offers a "Simple Solution" valve (part number 3411314) that has both switch ports, guaranteeing a fit regardless of which version your van has.
🎬 Watch: See how this universal valve solves the ordering confusion.Estimated Replacement Costs
The cost to replace an A/C expansion valve depends heavily on labor. The part itself is relatively inexpensive, but the process requires specialized tools and time.
| Item | Estimated Cost |
|---|---|
| New Aftermarket Expansion Valve | $17 - $75 |
| New OEM (Mopar) Expansion Valve | $150 - $250+ |
| Shop Labor & A/C Service (Evacuate & Recharge) | $200 - $400 |
| Total Estimated Cost (Shop Repair) | $250 - $650 |
Frequently Asked Questions (FAQ)
Can I replace the A/C expansion valve myself?
This is not a beginner-friendly job. While physically swapping the valve is possible for a skilled DIYer, the process requires legally recovering the old refrigerant and then recharging the system with a vacuum pump and manifold gauges. Access to the valve on the firewall is also very tight. For most owners, this job is best left to a professional shop.
Do I have to replace the expansion valve when I replace my A/C compressor?
Yes, absolutely. Most compressor manufacturers will void the warranty on a new compressor if the expansion valve and receiver/drier are not replaced at the same time. This is because a failed compressor often contaminates the system, and that debris will destroy the new compressor if the old, clogged valve is left in place.
🎬 See this walkthrough on replacing the compressor and related components.My van has rear A/C. Does it have a second expansion valve?

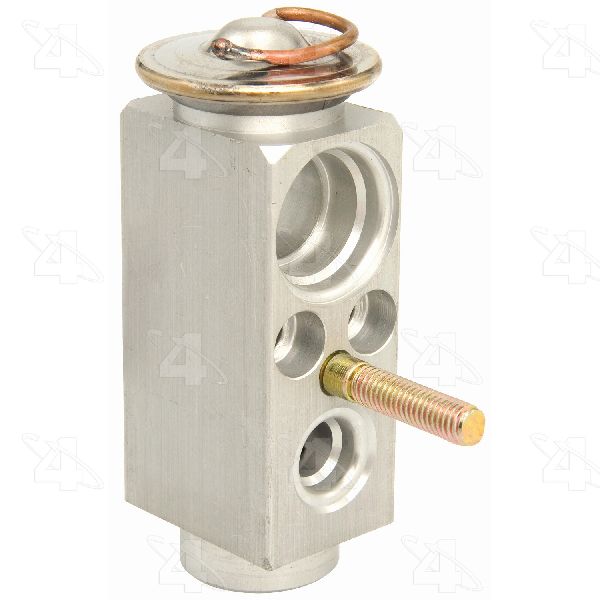

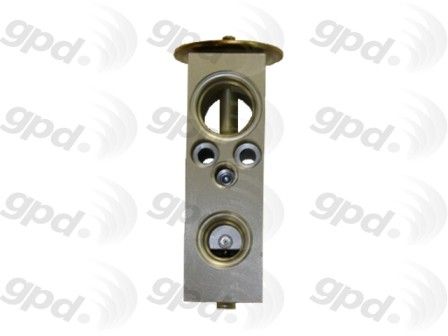

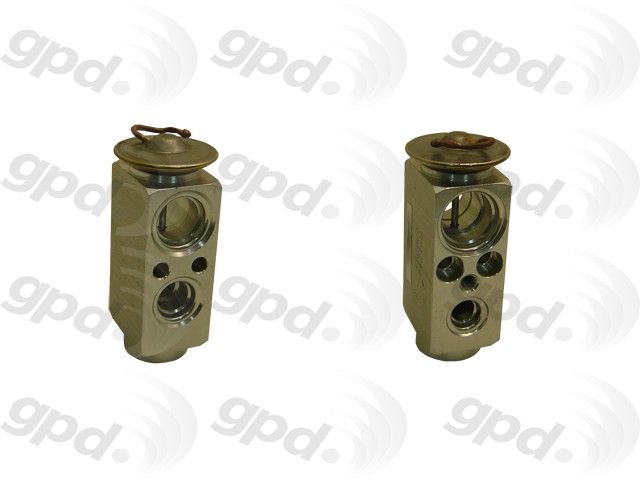

Yes. If your Grand Caravan is equipped with the optional rear HVAC system, it has a second expansion valve for the rear evaporator. The symptoms and replacement principles are the same, but its location is in the rear of the vehicle.
🎬 Watch: How to access and replace rear A/C system components.What is the A/C recall on these vans?
There are no recalls for the expansion valve itself. However, there was a safety recall (NHTSA ID: 04V310000) for 2001-2002 models where condensation from the A/C ducts could drip into the radio and potentially cause a fire. This is an issue with the HVAC housing and ductwork, not the expansion valve.
Helpful Videos
Technical Specifications
OEM Part Numbers: 5136101AA 5136101AB
Block-type thermal expansion valve (TXV). For 2001-2004 models, requires visual confirmation of switch port location (top or bottom). Vans with rear A/C have a second, separate expansion valve for the rear unit.
