Dodge Caravan Windshield Washer Pump Guide (2001-2007)
If your washer fluid isn't spraying, this guide will help you diagnose and replace the right pump for your Caravan.
- This is an excellent DIY repair for beginners; it takes less than 30 minutes with basic tools.
- The most common failure is a dead motor, indicated by a lack of sound when you try to use the washers.
- Aftermarket pumps from brands like Trico and ACDelco offer significant cost savings over OEM parts with reliable performance.
- Before starting, have a bucket ready to catch over a gallon of washer fluid that will drain from the reservoir.
Is Your Windshield Washer Pump Failing?
A dead washer pump is more than an annoyance; it's a safety issue in bad weather. For the 2001-2007 Dodge Caravan, the signs of failure are usually straightforward. The most common symptom is that no fluid sprays out on the front or rear windshields.
Before you buy a new part, do a quick check. When you try to use the washers, do you hear a humming sound coming from the front passenger wheel area?
- If you hear the pump motor running but nothing comes out, you might have clogged nozzles, blocked hoses, or you're simply out of fluid.
- If you hear nothing at all, the pump is the most likely problem. It could also be a blown fuse or a bad switch, so it's worth checking the fuse box first.
Choosing the Right Aftermarket Pump
For a vehicle like the 2001-2007 Caravan, an aftermarket washer pump offers the best value. The OEM Mopar part can be expensive, and the simple design of this component means that quality aftermarket brands provide reliable performance for a fraction of the cost. The installation is identical.
Here’s a look at the brands available:

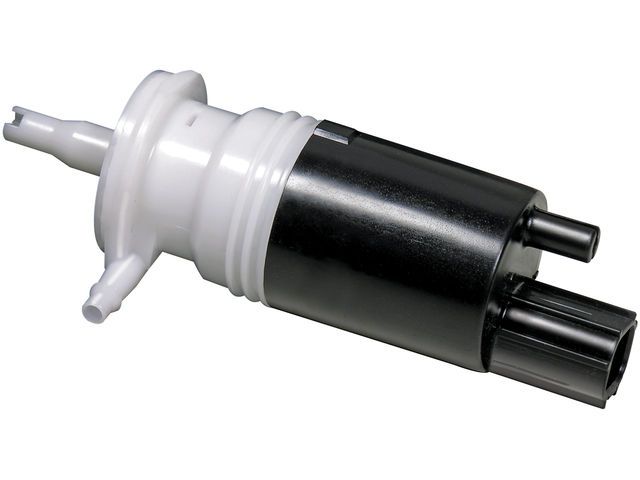

- ACDelco: While known as a GM Original Equipment supplier, ACDelco makes parts for many vehicles. They are known for reliability and are often considered a higher-tier aftermarket option built to meet or exceed original specifications.

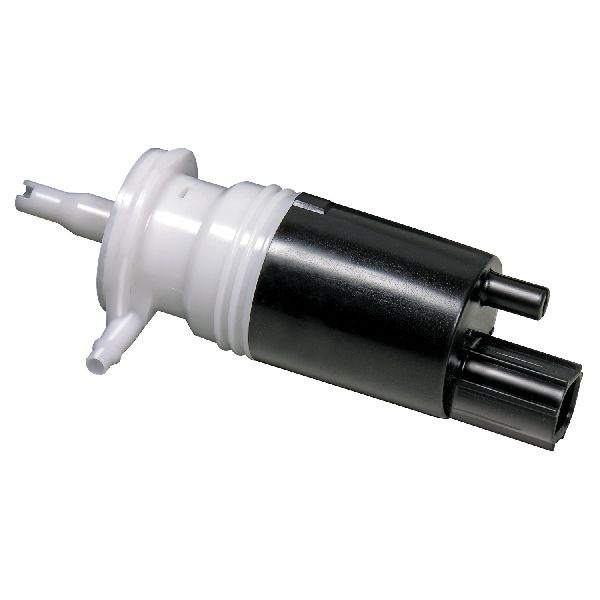

- Trico: Trico is a well-established brand in the world of windshield clearing, famous for its wiper blades. Their washer pumps are designed for easy, direct-fit installation and are a popular, dependable choice for DIY repairs.
- Crown Automotive: Crown specializes in parts for Chrysler, Dodge, and Jeep vehicles. They are a go-to for many components, offering a direct-fit replacement option.
Common Ordering Mistake
Be sure to verify if your van uses a single pump with two outlets (for front and rear) or two separate pumps. Most 2001-2007 Caravans use a single pump, but checking the physical part first can prevent ordering the wrong component.
Windshield Washer Pump Replacement Cost
Replacing the washer pump on this generation of Caravan is an inexpensive repair, especially if you do it yourself. The part is affordable and the labor is minimal.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Pump | $24.64 - $85.72 |
| New OEM (Mopar) Pump | $100 - $150+ |
| Shop Labor | $61 - $90 |
| Total Professional Replacement | $85 - $175+ |
Is This a DIY Job?
Yes, absolutely. Replacing the washer pump on a 2001-2007 Caravan is one of the easiest repairs you can do. It requires basic tools and about 30 minutes of your time. The pump is easily accessible by pulling back the plastic liner in the front passenger wheel well.
Prepare for Spills!
When you pull the old pump out of the reservoir, all the remaining washer fluid will drain out. The reservoir holds over a gallon, so have a bucket ready to catch the fluid.
Frequently Asked Questions
How do I know if the pump is bad or if it's just a fuse?
First, check the fuse labeled for the washers (often marked "WSHR" or similar) in the fuse box. If the fuse is good, the next step is to listen for the pump's motor. If you hear no sound when you activate the washers, the pump has likely failed.
Is there a separate pump for the rear window?
Usually, no. Most 2001-2007 Caravans use a single pump with two hose connections—one for the front and one for the rear. However, it's always best to visually inspect your vehicle before ordering to be certain.
Do I need any special tools for the replacement?
No special tools are required. A simple screwdriver to remove the fasteners on the wheel well liner is typically all you need. The pump itself just pulls out and pushes into a rubber grommet on the reservoir.
My new pump didn't come with a little filter screen. What should I do?
The small filter screen on the pump's intake prevents debris from entering the system. If your new pump doesn't have one, you can usually pull the one off your old pump and place it on the new one.
Technical Specifications
OEM Part Numbers: 5019244AA
Voltage: 12V, Outlets: 2 (Typically for Front & Rear)
