Ford F-250 (2001-2007) Power Steering Pump Replacement Guide
Hard steering or a whining noise in your Super Duty could mean it's time for a new power steering pump.
- A failing pump will affect both your steering and your power brakes due to the Hydro-Boost system.
- You must use the correct fluid, which is likely a specific type of Automatic Transmission Fluid (ATF), not generic power steering fluid.
- A special pulley puller/installer tool is required for the job.
- Properly bleeding all air from the system after installation is critical to prevent noise and damage to the new pump.
Is Your F-250's Power Steering Pump Failing?
If you're hearing a loud whining or groaning from under the hood when you turn the wheel, your power steering pump is the likely culprit. These sounds happen when the pump is struggling to create pressure, often due to wear or air in the system. Another major symptom is steering that feels heavy or stiff, especially when parking or driving slowly. Since the pump also powers your brakes, you might notice your brake pedal feels hard, kicks back, or the truck is harder to stop. Look for reddish-brown fluid leaks under the front of your truck, as the pump 🎬 Watch: How to diagnose a failing power steering pump or its hoses can leak over time.

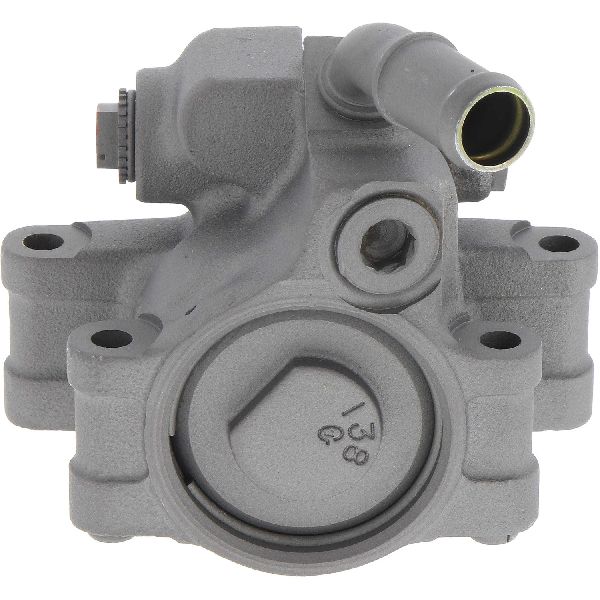

Choosing the Right Aftermarket Power Steering Pump
When replacing the pump on your F-250, you have options. The choice often comes down to budget and how long you plan to keep the truck.
- Premium Aftermarket (e.g., Cardone NEW): Brands offering completely new units, not remanufactured ones, are generally the most reliable choice. Parts from Cardone's "NEW" line, for example, are made with 100% new components and tend to have better quality control than remanufactured options. While they cost more than remanufactured parts, they are a solid choice for reliability.
- Economy Aftermarket (e.g., Cardone Remanufactured, Mapco): Remanufactured pumps are an affordable option. They are original units that have been rebuilt with new seals and tested. However, owner reviews for remanufactured parts are often mixed, with some reporting failures shortly after installation. If you choose a remanufactured pump to save money, be sure to flush the entire system thoroughly and bleed it correctly to give the part the best chance of survival. Mapco is another available brand, though there is less owner feedback available for it in the North American market.
Known Issue: Brake Problems and Fluid Contamination (TSB 07-11-10)
Ford issued a Technical Service Bulletin (TSB 07-11-10) for 1999-2008 Super Duty trucks regarding a brake pedal that grabs or kicks back. This is often caused by contamination inside the power steering fluid, which affects the Hydro-Boost brake unit. The official fix involves temporarily installing a special filter to clean the fluid. If you're replacing your pump, it is critical to flush the entire system to remove any old, contaminated fluid and debris that could damage your new pump and continue to cause brake issues.
Power Steering Pump Replacement Cost (2001-2007 F-250)
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Pump | $93 - $255 |
| Shop Labor | $212 - $311 |
| Total Professional Replacement 🎬 See this step-by-step walkthrough for replacing the pump yourself | $374 - $473 |
Costs are estimates and can vary based on location and the specific parts chosen.
Pro Tip: The Pulley and Fluid are Critical
The power steering pump pulley is a tight, press-fit. You will need a specific pulley puller/installer tool to remove the old pulley and install it on the new pump. Do not try to hammer it on, as this will destroy the new pump. Many auto parts stores offer these tools as free rentals. Also, these trucks often use Automatic Transmission Fluid (ATF), not generic power steering fluid. Using the wrong fluid can cause noise and rapid failure. Always check your owner's manual or the fluid reservoir cap for the exact fluid specification (e.g., MERCON V).
Frequently Asked Questions
Why are my brakes acting weird if my power steering is the problem?
Your F-250 uses a Hydro-Boost system, which uses hydraulic pressure from the power steering pump to assist the brakes. A failing pump, low fluid, or air in the system reduces this pressure, making the brake pedal feel hard or unresponsive.
Can I reuse my old power steering pump pulley?
Yes, you typically transfer the pulley from the old pump to the new one, unless the new pump comes with one. You must use a special pulley puller and installer tool for this. Inspect the old pulley for cracks or damage before reinstalling.
What is the most important step of this replacement?
Bleeding the system. After installing the new pump, you must get all the air out of the fluid. With the front wheels off the ground and the engine OFF, slowly turn the steering wheel from lock to lock at least 20-30 times, checking the fluid level as you go. Starting the engine with air in the system can instantly damage the new pump and cause a loud whining noise.
🎬 Watch: How to properly bleed air to prevent pump failureWhat kind of fluid should I use?
Check your owner's manual. Most 2001-2007 Ford Super Duty trucks require a specific type of Automatic Transmission Fluid (ATF), such as MERCON V, not generic power steering fluid. Using the wrong type will cause damage.
Helpful Videos
Technical Specifications
System uses a belt-driven hydraulic pump with a press-fit pulley. The system is connected to the Hydro-Boost brake booster. Fluid type is critical and is typically a MERCON-specific Automatic Transmission Fluid.
