A Guide to the Electric Fuel Pump for the 2001-2007 Mazda B3000
Learn to spot the signs of a failing fuel pump in your truck and make an informed choice for its replacement.
- Your Mazda B3000 is mechanically identical to a Ford Ranger, so parts and repair guides for the Ranger 3.0L V6 apply.
- Common failure symptoms include the engine cranking but not starting, stalling, and a whining noise from the fuel tank.
- For DIY replacement, lifting the truck bed is significantly easier than dropping the fuel tank.
- Affordable aftermarket brands like AutoBest, GMB, and US Motor Works are a practical and cost-effective choice for this vehicle's age.
Understanding Your B3000's Fuel System
The 2001-2007 Mazda B3000 is a reliable truck that shares its platform and most of its parts with the Ford Ranger. This is important to know, as information and parts for the Ford Ranger 3.0L V6 are often more common and apply directly to your B3000. When the fuel pump begins to fail, it can cause a range of frustrating problems, from poor performance to leaving you stranded. Recognizing the symptoms early can save you a headache and a tow bill.
Symptoms of a Failing Fuel Pump
A weak or failing fuel pump will struggle to supply the engine with enough fuel. You might notice one or more of these signs:
- Engine Cranks but Won't Start: 🎬 Watch: How to diagnose a bad fuel pump when cranking This is a classic sign. You'll hear the engine turning over, but it never fires up because it's not getting fuel.
- Stalling, Especially Under Load: The truck might start but then die unexpectedly, particularly when you're accelerating or going uphill.
- Sputtering and Loss of Power: If the pump can't maintain pressure, the engine may sputter or feel sluggish when you press the gas pedal.
- Loud Whining Noise: You may hear a distinct humming or whining sound coming from the fuel tank area (under the bed) as the pump motor struggles to work.
Check the Simple Things First
Before condemning the pump, check other related components. A clogged fuel filter can mimic pump failure. Also, these trucks can have issues with the fuel pump relay or the inertia switch (a safety device that cuts power to the pump in a crash), which are much cheaper and easier to fix.
🎬 See how a bad ground can cause low fuel pressureChoosing the Right Aftermarket Fuel Pump
For a vehicle of this age, an aftermarket fuel pump assembly offers a great balance of value and reliability. The OEM Motorcraft part can be very expensive, while aftermarket options provide a cost-effective solution to get your truck back on the road. The entire assembly, which includes the pump, sending unit, and housing, is the recommended replacement.
Here’s an honest look at the available aftermarket brand tiers:
- Premium Aftermarket (e.g., Delphi, Bosch): These brands are often original equipment suppliers to many automakers and are known for high quality and reliability, but they come at a higher price point.

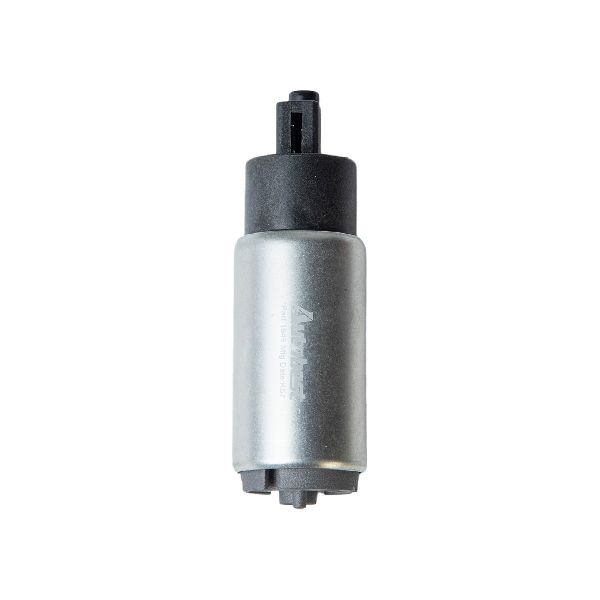

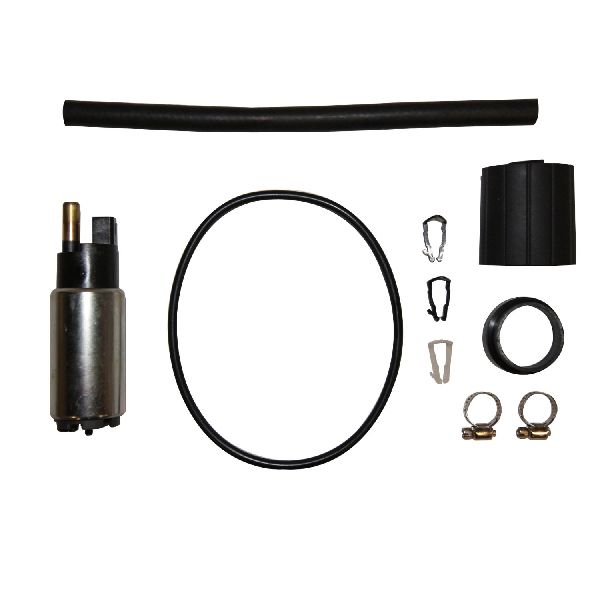

- Standard/Value Aftermarket (e.g., AutoBest, GMB, US Motor Works): These brands are the sweet spot for many B3000 owners. They are designed to meet original specifications and offer good performance for a fraction of the OEM cost. Reviews show they are generally reliable, though quality can sometimes be inconsistent compared to premium brands. For an older workhorse truck, this tier is often the most practical choice.
- Economy Brands: The cheapest options available may save money upfront but have a higher risk of premature failure, leading to doing the job all over again. It's often worth spending a little more for a reputable standard brand.
Cost of Replacing a Mazda B3000 Fuel Pump
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Assembly | $49 - $104 |
| New OEM (Motorcraft) Assembly | $630 - $790 |
| Shop Labor | $250 - $450 |
| Total Professional Replacement (Aftermarket Part) | $300 - $555 |
| Total Professional Replacement (OEM Part) | $880 - $1,240 |
Pro Tip: Lift the Bed, Don't Drop the Tank
The most common and recommended method for replacing the fuel pump on these trucks is to lift the pickup bed. While service manuals often say to drop the fuel tank, lifting the bed is much easier. It gives you clear, open access to the top of the fuel tank and the pump assembly. The process involves removing six T-55 Torx bolts in the bed, three screws at the fuel filler neck, and unplugging the taillight harness. With a helper, you can then slide the bed back or tilt it up 🎬 Watch: Step-by-step guide to replacing the pump by lifting the bed to access the pump.
Frequently Asked Questions (FAQ)
Are there any recalls on the 2001-2007 B3000 fuel pump?
No. While Mazda has issued recalls for fuel pumps on much newer models (2018 and later), there are no active recalls specifically for the fuel pump assembly on the 2001-2007 Mazda B3000 or its Ford Ranger equivalent.
Can I just replace the pump motor instead of the whole assembly?
While possible, it is highly recommended to replace the entire fuel pump assembly. The assembly includes a new fuel level sending unit, strainer, and seals. Given the labor involved, replacing the whole unit prevents you from having to do the job again if another part of the old assembly fails.
Do I need any special tools for the replacement?
Yes. You will need a T-55 Torx bit for the bed bolts and a set of fuel line disconnect tools. To remove the locking ring that holds the pump in place, a brass punch and hammer are often used, though a dedicated lock ring tool is the safest option to avoid sparks.
Should I run the tank empty before starting the job?
If you choose to drop the tank, it should be as empty as possible to make it lighter and safer to handle. If you are lifting the bed, the amount of fuel in the tank doesn't matter as much, but it's still a good safety practice to work with less fuel.
Helpful Videos
Technical Specifications
OEM Part Numbers: 1L5Z9H307CA 1L5Z9H307DA 1L5Z9H307DB 6L5Z9H307A
This is a complete fuel pump module assembly, which includes the electric pump, fuel sending unit (for the gas gauge), strainer, and float. It is located inside the fuel tank. Ensure you select the correct part for your truck's wheelbase, as tank sizes can vary.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
