A Guide to Replacing the Spark Plug Wire Set on Your 2004-2007 Mercury Monterey
Everything you need to know before tackling the spark plug wires on your Monterey’s 4.2L V6 engine.
- The most difficult part of this job is accessing the three rear spark plug wires, which requires removing the windshield cowl assembly.
- Due to the high labor involved, it is highly recommended to also replace the spark plugs and ignition coil pack at the same time as the wires.
- A flashing Check Engine Light indicates a severe misfire that can damage the catalytic converter; stop driving immediately.
- For reliability, choose an OEM (Motorcraft) or premium aftermarket (NGK, Denso) brand for this critical part.
Understanding Your Monterey's Ignition System
Your 2004-2007 Mercury Monterey uses a 4.2L V6 engine. This engine has a single ignition coil pack that generates voltage, and a set of six spark plug wires to deliver it. Three of these wires go to the front cylinders, which are easy to see and access. The other three wires go to the rear cylinders, which are hidden against the firewall, making them very difficult to reach.
🎬 Watch this video for a guide on changing the wires.Symptoms of a Failing Spark Plug Wire Set
When spark plug wires wear out, the spark they deliver becomes weak or inconsistent. This causes incomplete combustion, and your van will let you know something is wrong. Common signs include:
- Rough Idle: The engine may shake or vibrate noticeably when stopped.
- Engine Misfires: You may feel a hesitation, stumble, or jerking sensation during acceleration.
- Poor Fuel Economy: An inefficient engine burns more gas.
- Check Engine Light: The most common sign is a Check Engine Light with codes like P0300 (random misfire) or P0301-P0306 (for a specific cylinder). 🎬 See how to diagnose these specific misfire codes.
Flashing Check Engine Light: A Serious Warning
If your Check Engine Light is flashing, it signals a severe misfire. Unburned fuel is entering the exhaust and can quickly overheat and destroy your catalytic converter, a very expensive repair. If you see a flashing light, you should pull over and avoid driving the vehicle.
Choosing the Right Aftermarket Spark Plug Wires
While you can go to a dealer for an OEM part, the aftermarket offers excellent alternatives that often meet or exceed original quality. For a critical and hard-to-install part like this, choosing a quality brand is important.
Brand Quality Tiers

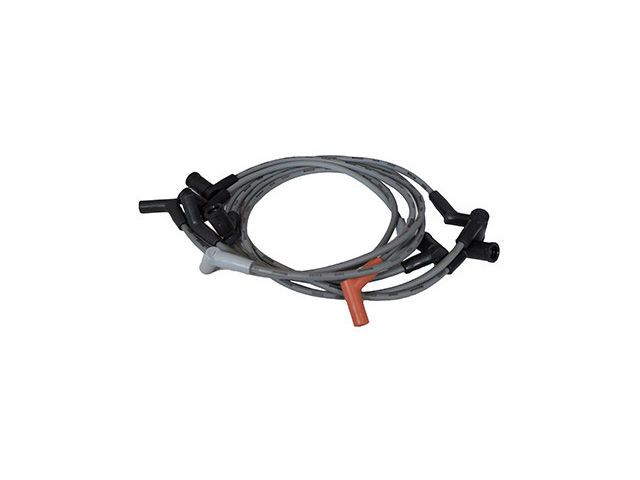

- OEM (Original Equipment): Motorcraft is the factory brand for your Monterey. They are a guaranteed fit and are known for their durability and proper resistance. You can't go wrong with Motorcraft, as it's the benchmark for performance.

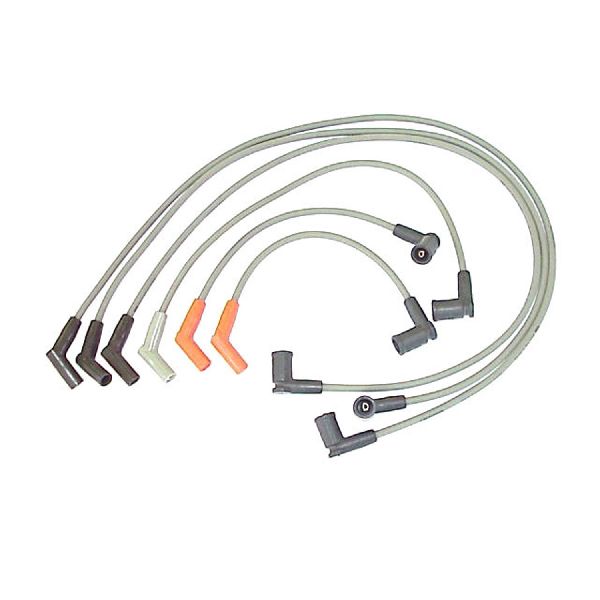

- Premium Aftermarket: Brands like NGK and Denso are top-tier choices, often supplying parts to vehicle manufacturers directly. They provide OEM-level fit and performance, with features like high-quality silicone insulation and precisely engineered boots. Many professional mechanics trust these brands equally with OEM.
- Performance-Focused: A brand like Granatelli offers wires with thicker jackets and lower resistance. While they can provide a stronger spark, they are generally considered unnecessary for a stock daily-driven Monterey.

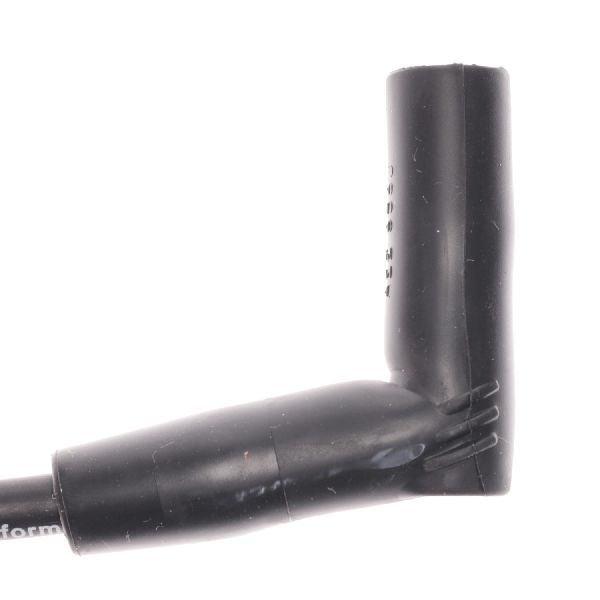

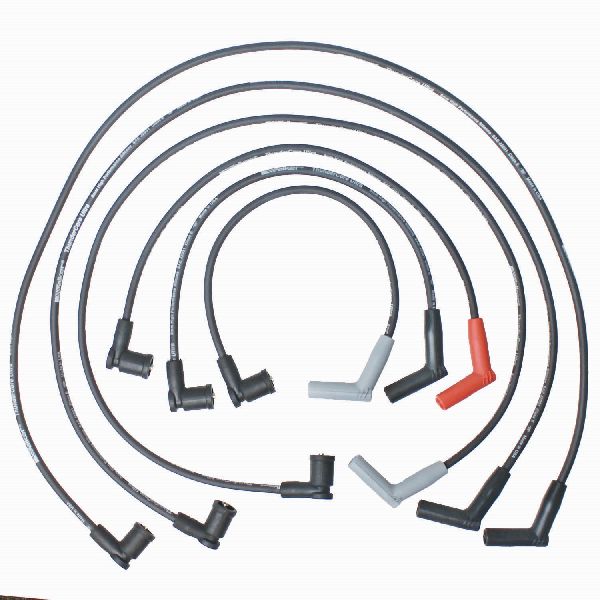

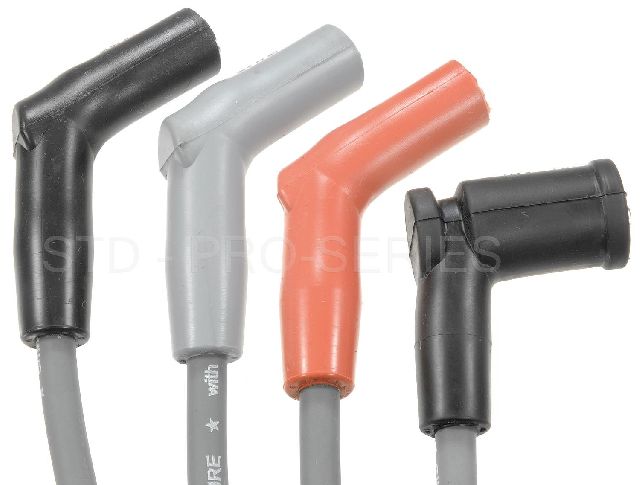

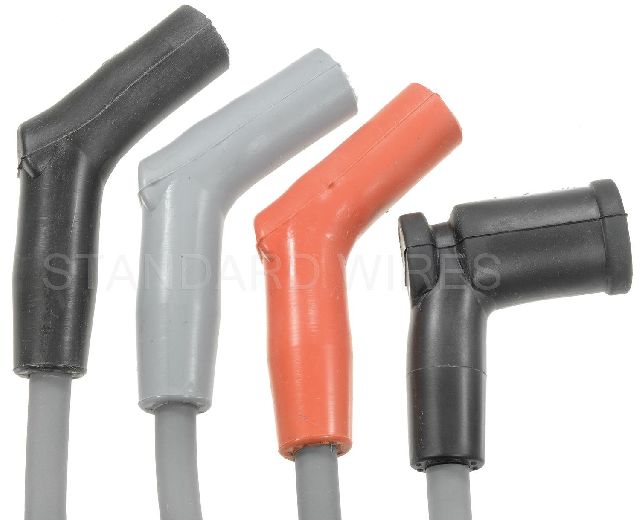

- Standard Aftermarket: Brands like Standard Wires (SMP), Walker Products, and Prenco offer a more budget-friendly option. They are designed to be a functional replacement for the original wires.
Pro Tip: Replace Everything at Once
The most difficult part of this job is accessing the rear three cylinders, which requires removing the entire windshield cowl assembly. Because of the high labor involved, it is strongly recommended to replace the spark plug wires, all six spark plugs, and the ignition coil pack at the same time. These components wear out at a similar rate, and replacing them all at once ensures you won't have to do this difficult job again in the near future.
🎬 Watch a full walkthrough of replacing the plugs, wires, and coil.Known Issues, Recalls, and Bulletins
There are no active recalls or Technical Service Bulletins (TSBs) from the NHTSA specifically for spark plug wire failure on the 2004-2007 Mercury Monterey. However, owners have reported misfire issues that can be caused by other problems:
- Plugged EGR Orifice: Some Monterey and Freestar vans can develop a clogged EGR passage in the intake manifold, which can cause a misfire and trigger a check engine light. This can sometimes be misdiagnosed as a bad wire or plug.
- Water Intrusion: A TSB for related Ford vehicles notes that water leaking from the cowl area can get onto the engine's computer (PCM) and cause shifting or misfire problems.
Estimated Replacement Costs
The cost can vary based on your location and the parts you choose. Because of the difficult labor, expect to pay more than you would for a typical V6 engine.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Spark Plug Wire Set | $43 - $75 |
| Shop Labor | $200 - $300 |
| Total Professional Installation | $245 - $375 |
Note: Costs are estimates and do not include spark plugs or an ignition coil, which are highly recommended to be replaced at the same time.
Frequently Asked Questions (FAQ)
Is replacing the spark plug wires a DIY job?
This is a difficult DIY job, rated 4 out of 5. While the front three wires are simple, accessing the rear three requires removing the windshield wipers and the plastic cowl panel. It is not recommended for beginners, but it is possible for an experienced DIYer with the right tools and patience. Several video guides are available online that show the process.
How often should spark plug wires be replaced?
Spark plug wires don't have a strict replacement schedule like oil, but they are a wear item. They typically last between 60,000 and 100,000 miles. However, they should be replaced whenever they show signs of wear, damage, or are causing engine performance issues.
My engine is misfiring, but the wires look fine. What else could it be?
Misfires can be caused by many things. If the wires are good, the most common culprits are worn-out spark plugs or a failing ignition coil pack. Other less common causes include a clogged fuel injector, a vacuum leak, or low engine compression.
Do I need to apply dielectric grease?
Yes. Applying a small amount of dielectric grease to the inside of the spark plug boots is highly recommended. It does not help conduct electricity; instead, it acts as a lubricant to make installation and future removal easier, and it helps seal the boot to prevent moisture and corrosion.
Helpful Videos
Technical Specifications
OEM Part Numbers: WR-6111
Engine: 4.2L V6 only. Set includes 6 wires of varying lengths for all cylinders.
