A Guide to the Starter Motor for the 2004-2007 Mercury Monterey
If your Monterey clicks but won't start, or is slow to crank, your starter motor might be the problem.
- The most common symptom of a failing starter on a Monterey is a loud click with no engine crank.
- A new aftermarket starter from a brand like MPA is a reliable and cost-effective repair for this vehicle.
- This is a DIY-friendly repair; the starter is accessible after removing the airbox assembly.
- There are no specific recalls or TSBs related to the starter motor for the 2004-2007 Mercury Monterey.
Is Your Monterey's Starter Failing?
A failing starter rarely dies without warning. For the 2004-2007 Mercury Monterey, the signs are usually clear. Recognizing them can help you distinguish between a bad starter and other issues like a weak battery or alternator.
Key Symptoms of a Bad Starter
🎬 Watch: How to diagnose a car that just clicks- Single, Loud Click: You turn the key, hear one sharp click from the engine bay, but the engine doesn't crank. This often means the starter's solenoid is engaging, but the motor itself isn't turning.
- No Sound at All: If you turn the key and get silence, it could be a completely dead starter, but you should check your battery and starter fuses first. 🎬 See how to troubleshoot starter fuses and relays
- Slow, Labored Cranking: If the engine turns over much slower than usual, it can be a sign of a weak starter motor drawing too much power, though a dying battery can also cause this.
- Intermittent Starting: The van starts perfectly one day but refuses the next. This points to a developing electrical problem inside the starter motor, like worn brushes or bad contacts.
Choosing the Right Aftermarket Starter
For a vehicle like the 2004-2007 Monterey, a new aftermarket starter is a cost-effective and reliable choice. The original Ford starters have likely reached the end of their service life. While you could seek out a new OEM part, the cost is often significantly higher. Remanufactured starters are also a common option, where old units are rebuilt with new wear components.
A quality new aftermarket starter, such as those from MPA (Motorcar Parts of America), offers a balance of value and reliability. MPA is a large manufacturer that builds parts to meet or exceed original specifications. They use durable components designed for longevity, making them a solid choice for keeping your Monterey on the road without the high cost of an OEM part.
Starter Replacement Cost for 2004-2007 Mercury Monterey
The total cost depends on the part you choose and whether you do the work yourself. The starter on the Monterey's 4.2L V6 is reasonably accessible, making a DIY replacement possible for those with some experience.
| Part/Service | Estimated Cost |
|---|---|
| Shop Labor | $150 - $450 |
| New Aftermarket Starter | $115 - $200 |
| Remanufactured Starter | $160 - $210 |
| Total Professional Replacement | $265 - $650 |
Pro Tip: Before replacing the starter, always test the battery. A weak or dead battery is the most common cause of a no-start condition and can mimic the symptoms of a bad starter. Most auto parts stores will test your battery for free.
Frequently Asked Questions
Where is the starter located on a 2004-2007 Mercury Monterey?
The starter motor is located on the back side of the engine, near where the engine connects to the transmission (transaxle). To access it, you will typically need to remove the plastic air filter box and intake tube.
Can I replace the starter myself?
Yes, this is a feasible DIY job for someone with basic mechanical skills and tools. Access is not overly difficult once the airbox is removed. The job requires tools like 8mm, 10mm, and 13mm sockets and can take a couple of hours. Always disconnect the negative battery terminal before starting any electrical work.
Is it my starter, battery, or alternator?
If you hear a single, loud click, the starter is the likely culprit. If the engine cranks slowly and the headlights are dim, suspect the battery. If the van starts with a jump but dies shortly after, or the battery light is on while driving, the alternator is a more likely cause.
Are there any recalls on the starter for the Mercury Monterey?
No, there are no recalls or common Technical Service Bulletins (TSBs) issued by Ford or the NHTSA specifically for the starter motor on the 2004-2007 Mercury Monterey.
Helpful Videos
Technical Specifications
OEM Part Numbers: 4F2311000AA 4F23AA 6F2T11000AA 6F2TAA 6F2Z11002AA

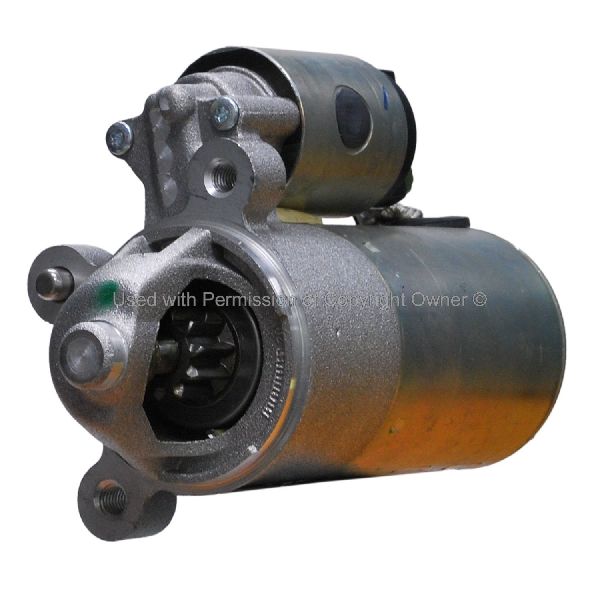

Fits 4.2L V6 Engine. The starter is typically a 12-volt, Permanent Magnet Gear Reduction (PMGR) type with a 10-tooth pinion gear and clockwise rotation.
