Dodge Grand Caravan Windshield Washer Pump Guide (2001-2008)
Everything you need to know before replacing the windshield washer pump on your 2001-2008 Dodge Grand Caravan.
- The washer pump is an easy and inexpensive DIY replacement, located behind the passenger-side wheel well liner.
- Before replacing, check for a full fluid reservoir and a good fuse to rule out simple fixes.
- Most 2001-2008 models use a single, dual-outlet pump for both front and rear washers.
- Quality aftermarket brands like ACDelco, Trico, and Crown are cost-effective alternatives to the OEM part for this repair.
Is Your Grand Caravan's Washer Pump Failing?
A non-working windshield washer is often caused by a failed pump, a common issue as these vans age. Before you assume the pump is dead, check the simple things first: make sure your washer fluid reservoir is full and check for a blown fuse. On many models, a single fuse controls the pump. Also, listen for the pump motor when you activate the switch; if you hear a humming sound but no fluid sprays, the pump may be running but clogged, or the lines themselves could be blocked.
🎬 Watch: How to diagnose your washer pump and systemCommon Failure Symptoms
- No Spray: No fluid comes out of the front or rear nozzles when activated. This is the most common sign of a dead pump.
- Weak Spray: Fluid barely reaches the windshield, indicating the pump motor is losing pressure.
- Pump Hums, No Fluid: You can hear the motor running, but nothing comes out. This could be an internal pump failure or a clog in the system.
- Works Intermittently: The pump works sometimes but not others, suggesting an electrical issue or a dying motor.
Known Issues & Recalls
While some newer Dodge models had recalls for washer pumps causing electrical issues, our search found no active recalls or widespread Technical Service Bulletins (TSBs) specifically for the windshield washer pump on the 2001-2008 Dodge Grand Caravan. Failures on these vehicles are typically due to the age and normal wear of the part.
Choosing a New Aftermarket Washer Pump
For a part like this, an aftermarket replacement is a practical and cost-effective choice. The original Mopar pumps have been superseded by new part numbers, and aftermarket brands offer direct-fit replacements that perform well for a fraction of the cost. There is little evidence to suggest that a more expensive OEM pump will last significantly longer than a quality aftermarket alternative in this application.
Aftermarket Brand Tiers
- Good Value (Trico, ACI): Brands like Trico and ACI offer reliable, budget-friendly pumps. They are designed to meet or exceed original specifications and are a popular choice for DIY repairs. Trico, in particular, is well-known for its wiper and washer system components.
- Established Aftermarket (ACDelco, Crown Automotive): ACDelco is a trusted name that produces parts for many vehicle makes, not just GM. Crown Automotive is a known supplier for Chrysler and Jeep vehicles. These brands often provide a balance of quality and price, making them a solid all-around choice.
Pro Tip: When replacing the pump, it's a good idea to also replace the small rubber grommet that seals the pump to the reservoir. Many new pumps include this part. Also, check the small filter screen on the pump's intake; if your new pump doesn't have one, you can often transfer the old one if it's clean.
Cost of Replacing a Dodge Grand Caravan Washer Pump
The cost to replace the washer pump is very reasonable, especially if you do it yourself. The job is straightforward and requires minimal tools.
| Item | Cost |
|---|---|
| New Aftermarket Part | $24.64 - $85.72 |
| New OEM Part (Mopar) | $25.00 - $125.00 |
| Shop Labor | $61.00 - $89.00 |
| Total Professional Replacement | $183.00 - $211.00 |
Frequently Asked Questions
Is it hard to replace the washer pump on a 2001-2008 Grand Caravan?
No, it is considered an easy DIY job. Access is gained by removing a few screws in the front passenger wheel well liner. The pump pulls directly out of the washer fluid reservoir. The entire process typically takes less than an hour.

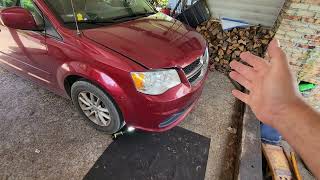

🎬 See this step-by-step walkthrough for replacing the pumpHow do I know if the pump is bad or just a clog?
First, listen for the pump motor when you try to spray fluid. If you hear nothing, it's likely a bad pump or fuse. If you hear the pump hum, disconnect the hose from the pump outlet. If fluid comes out there, the clog is in the lines or nozzles. If no fluid comes out of the pump itself, the pump is bad.
Does my Grand Caravan have one pump or two?
Most 2001-2008 models use a single pump with two outlets (dual-outlet) to feed both the front and rear washers. When ordering, ensure you get a dual-outlet pump if your van has a rear washer.
Will any washer fluid work in my Grand Caravan?

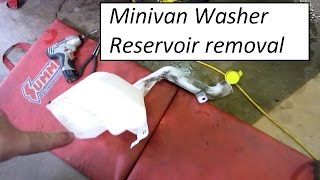

Yes, any standard commercial windshield washer fluid is acceptable. Do not use plain water, as it can freeze and damage the pump and lines in cold weather. 🎬 Watch: How to replace the entire washer fluid reservoir It also lacks the cleaning agents needed to be effective.
Helpful Videos
Technical Specifications
OEM Part Numbers: 05152075AC
Typically requires a 12V, dual-outlet pump for models equipped with a rear washer. The pump press-fits into a rubber grommet on the washer fluid reservoir.
