Ford Escape Disc Brake Hardware Guide for 2001-2008 Models
Everything you need to know about replacing the brake hardware on your first-generation Ford Escape.
- Always replace the disc brake hardware kit when changing brake pads to ensure quiet operation and even wear.
- Sticking caliper guide pins are the #1 problem on these Escapes; use a high-quality silicone grease on the pins.
- Check for internally collapsed front brake hoses if you have a dragging brake, as it mimics a seized caliper.
- For 2001-2004 models, verify that the critical ABS module fire hazard recall has been performed.
Symptoms of Worn Brake Hardware
When brake hardware wears out or corrodes, it can cause problems that are often mistaken for bad pads or rotors. Look out for these signs:
- Squealing or Grinding: Worn or missing anti-rattle clips allow the brake pads to vibrate, creating a high-pitched squeal or grinding noise.
- Uneven Brake Pad Wear: This is a classic sign of a stuck caliper guide pin on a Ford Escape. If the inner brake pad is worn down significantly more than the outer pad, it's almost certain the caliper is not sliding freely. This happens when the hardware's rubber boots fail, allowing the guide pins to rust and seize.
- Brake Drag or Pulling: Corroded hardware can prevent the brake pads from retracting properly after you release the pedal. This causes the pads to drag on the rotor, which can make the vehicle pull to one side and generate excess heat.
Vehicle-Specific Issues for 2001-2008 Ford Escape
ABS Module Recall (2001-2004 Models): Ford issued a major safety recall (NHTSA recall 07S51, later expanded with 11S24) for 2001-2004 Escapes. A leaking master cylinder reservoir cap could allow brake fluid to drip onto the ABS module wiring connector, potentially causing an electrical short and a fire, even when the vehicle is off. It is critical to ensure this recall work has been performed on your vehicle.
Collapsing Front Brake Hoses: Many owners and mechanics report that the flexible front brake hoses on this generation of Escape can collapse internally. This traps brake fluid pressure, causing the caliper to remain engaged, perfectly mimicking the symptoms of a seized caliper. If you have a dragging front brake, inspect the hose before replacing the caliper.
Choosing the Right Aftermarket Hardware Kit
For a daily-driven vehicle like the 2001-2008 Escape, aftermarket brake hardware offers excellent value. The quality is often equivalent to the original parts, and some kits even offer improvements. It is always recommended to replace your hardware every time you replace your brake pads.
Here’s a breakdown of the available brands:
- Good (Standard Replacement): Dorman is a widely available brand that provides standard, OE-style replacement hardware. It's a budget-friendly choice that will get the job done for normal driving.
- Better (OE Quality): Centric and Carlson are well-regarded names in the brake industry. Centric is part of the same company as Raybestos, a trusted OE supplier. Carlson is a specialist in brake hardware and their kits are known for quality and proper fitment. These are excellent, reliable choices.
- Best (Premium/Enhanced): Dynamic Friction (DFC) is often considered a premium aftermarket option. They are known for using high-quality materials like stainless steel for their clips, which offers better corrosion resistance than the plated steel used in some other kits. While some of their performance pads can be dusty, their standard hardware is a top-tier choice for durability.
Pro Tip: The Secret is the Grease
The biggest cause of brake problems on the Ford Escape is seized caliper guide pins. Regardless of which brand of hardware you choose, the most important step is to thoroughly clean the caliper bracket and guide pins, then apply a generous amount of high-temperature silicone brake grease to the pins before installing the new rubber boots. This simple step ensures the caliper can slide freely and prevents uneven pad wear.
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Hardware Kit | $11.46 - $19.72 |
| New OEM (Ford/Motorcraft) Hardware Kit | $30 - $50 |
| Shop Labor (as part of a full brake job) | $150 - $250 |
Frequently Asked Questions
Do I really need to replace the hardware with my brake pads?
Yes. The old clips lose their tension over time from heat cycles and can become brittle and corroded. Reusing them can lead to noise and improper pad movement. For the low cost, a new kit is cheap insurance for a quiet and effective brake job.
What is a stuck caliper pin and why is it common on my Escape?
A stuck caliper pin (or slide pin) is a pin that has seized inside the caliper bracket due to rust and old, dried-up grease. This prevents the brake caliper from sliding side-to-side. When you brake, only the piston-side pad gets pushed into the rotor, causing it to wear out very quickly while the other pad does almost nothing. It's common on Escapes because the original boots can fail, allowing moisture to contaminate the grease.
Is OEM Ford hardware better than aftermarket for my Escape?
For this component, OEM is not necessarily better. High-quality aftermarket brands like Dynamic Friction, Carlson, or Centric provide parts that meet or exceed original specifications. Some aftermarket kits use superior materials, like stainless steel, for better longevity.
What's the difference between front and rear hardware kits?
The front and rear brakes on your Escape are different sizes and designs. The hardware kits are specific to the front or rear axle and are not interchangeable. Ensure you purchase the correct kit for the axle you are servicing.
Technical Specifications

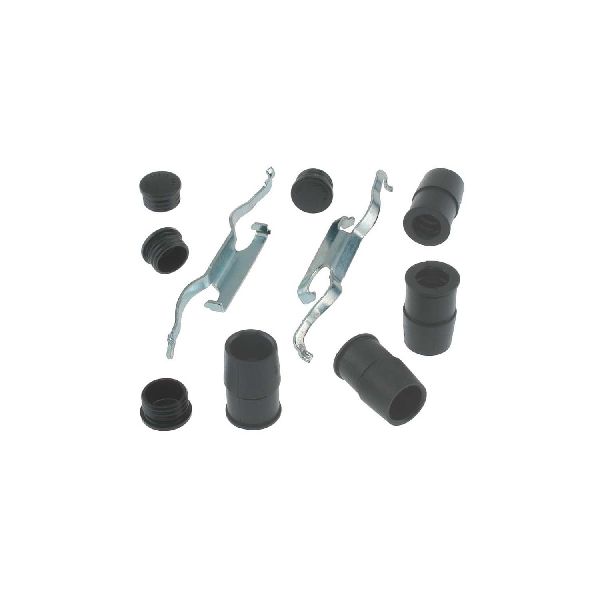

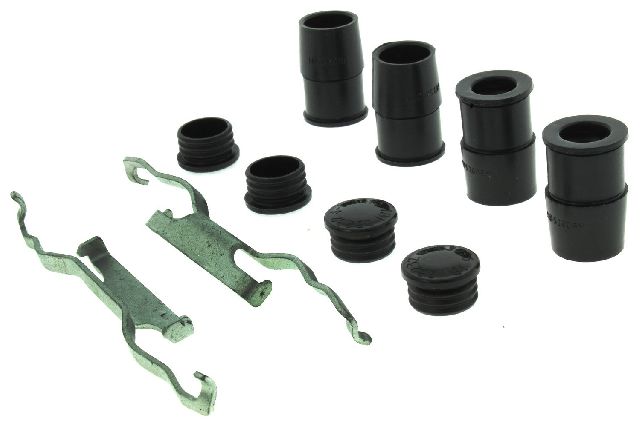

Kit typically includes abutment clips, anti-rattle clips, and caliper guide pin boots. Materials vary from plated steel to stainless steel.
