Pontiac Grand Prix Ignition Switch Guide for 2001-2008 Models
Stalling, starting problems, or weird electrical issues in your Grand Prix could point to a bad ignition switch.
- A recall for 2004-2008 models addressed the key turning accidentally but did not replace the switch, so failure from wear is still common.
- The most dangerous symptom is the engine stalling while driving, which also disables airbags.
- The ignition switch (electrical part) is separate from the lock cylinder (mechanical part) and does not require programming.
- A stuck key is a common Grand Prix issue, but it is often caused by the gear shifter interlock, not the ignition switch itself.
Is Your Grand Prix Stalling or Refusing to Start?
If you're dealing with sudden engine stalls or your car won't crank, the ignition switch is a likely suspect. This part is a known failure point on the 2001-2008 Pontiac Grand Prix. Inside the switch, electrical contacts wear out over time, leading to a poor connection. This can cut power to critical components like the fuel pump or ignition system, sometimes even while you're driving.
Recall Notice for 2004-2008 Grand Prix Models
General Motors issued a recall (NHTSA Campaign ID: 14V400000) for the 2004-2008 Pontiac Grand Prix related to the ignition switch. The problem was that weight on the keychain, combined with bumpy roads, could cause the key to turn out of the 'RUN' position. This would shut off the engine and, most importantly, disable the airbags. The official GM fix was not a new switch, but rather a key insert and new key rings to prevent accidental movement. This means your car could have had the recall service performed but may still have the original, aging ignition switch that can fail from normal wear and tear.
Symptoms of a Failing Ignition Switch
- Engine Stalls While Driving: The most serious symptom. The switch loses connection, cutting power to the engine unexpectedly.
- No Crank, No Start: You turn the key, and nothing happens. The switch isn't sending power to the starter.
- Starts, Then Immediately Dies: The engine fires up but shuts off as soon as you release the key from the 'START' to the 'RUN' position.
- Key is Stuck: Your key won't turn or come out of the ignition. This is often related to the shifter not telling the car it's in Park, a common issue on these models.
- Flickering Dash Lights & Accessories: Your radio, climate control, or dashboard lights may cut in and out as the switch's internal contacts fail.
Choosing the Right Aftermarket Ignition Switch
When replacing the ignition switch, you have a few quality tiers to choose from. The original part is made by AC Delco/Delphi. Aftermarket options can offer good value, but quality varies.
- Premium Aftermarket (e.g., Standard Ignition): Brands like Standard Motor Products (SMP) are well-regarded in the industry and often meet or exceed OEM quality. They are a trusted choice for a durable, long-lasting repair.
- Standard Aftermarket (e.g., Rostra): These brands offer a balance of quality and price, providing a reliable replacement for a daily driver without the premium cost.
- Economy Aftermarket (e.g., Replacement): These are the most budget-friendly options. While they will get your car running, they may not have the same long-term durability or precise feel as higher-tier brands.
Pro Tip: Ignition Switch vs. Lock Cylinder
The ignition switch is the electrical part that sends power. The ignition lock cylinder is the mechanical tumbler your key goes into. They are separate parts on the Grand Prix. If your only issue is a worn key that's hard to turn, you may only need a lock cylinder. If you have electrical symptoms like stalling or no-start, the switch is the likely culprit.
Estimated Replacement Costs
The cost to replace the ignition switch depends on the part brand you choose and local shop labor rates.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Ignition Switch | $53 - $148 |
| New OEM (AC Delco) Ignition Switch | $95 - $166 |
| Shop Labor | $110 - $161 |
| Total Estimated Cost (Aftermarket) | $163 - $309 |
| Total Estimated Cost (OEM) | $205 - $327 |
Frequently Asked Questions
Can I replace the ignition switch myself?
Yes, this is a feasible DIY job for someone with moderate experience. It involves removing the lower dash panels and steering column covers to access the switch. It is held on by small inverted Torx screws. The main challenges are working in a tight space and being careful with plastic trim panels. The difficulty is around 2 out of 5.
🎬 Watch this step-by-step walkthrough to replace the switch yourself.Does the new ignition switch need to be programmed?
No. The ignition switch itself is a direct electrical replacement and does not require programming. However, if you replace the ignition lock cylinder (where the key goes in) which comes with a new key, you will need to perform a security relearn procedure for the PassKey 3 (PK3) system. This usually involves turning the new key to the 'ON' position for 10 minutes until the security light goes out, turning it off, and repeating the cycle three times.
Is it a bad battery or a bad ignition switch?
A bad battery usually causes a slow crank or a clicking sound from the starter. A bad ignition switch often results in a completely dead 'START' position (no sound at all) or causes the car to stall while running, which a battery will not do. You might also notice that wiggling the key causes the dashboard lights to flicker, which points directly to a worn switch.

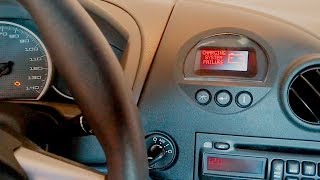

🎬 See how a bad battery can mimic ignition switch failure.My key is stuck. Is that the ignition switch?
Not always. A stuck key in a Grand Prix is a very common problem often caused by a faulty shift interlock solenoid. The car doesn't get the signal that it is in Park, so it won't release the key. While a mechanical failure in the ignition assembly can also be the cause, you should first investigate the shifter mechanism, as it's a frequent culprit.
🎬 Watch this video if your key won't turn or start.Helpful Videos
Technical Specifications
OEM Part Numbers: 10310896 D1426D 19207987 19120614 15242754
The ignition switch is the electrical component mounted to the ignition lock cylinder housing inside the steering column or dash. It uses a 7-pin blade-style connector to distribute power to the vehicle's main electrical systems.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
