A Guide to Transmission Filter Kits for the 2001-2008 R-Vision Trail-Lite
Keep your Trail-Lite's transmission shifting smoothly by understanding its specific filter needs.
- First, confirm if your Trail-Lite is on a Ford or a Chevrolet/Workhorse chassis, as parts are different.
- If you have a Ford chassis from ~2005 or later, you likely have the 5R110W transmission and need to replace two filters.
- Symptoms like harsh shifting, whining noises, or a burning smell mean your transmission needs immediate attention.
- A quality aftermarket kit is a cost-effective and reliable option for this essential maintenance service.
First, Identify Your Chassis
Before you shop for a transmission filter kit, you need to know what chassis your 2001-2008 R-Vision Trail-Lite is built on. R-Vision built the motorhome body, but the engine, transmission, and frame were made by either Ford or General Motors (Chevrolet/Workhorse). Parts are not interchangeable, so checking your VIN or looking for a Ford or Chevrolet logo on the steering wheel is the first step.
For Ford Chassis Owners (E-350/E-450)
Most Trail-Lites in this range use a Ford E-Series chassis. Depending on the year and model, you likely have one of two transmissions:
- 4R100: A 4-speed automatic common in earlier models. It uses a single filter located inside the transmission pan.

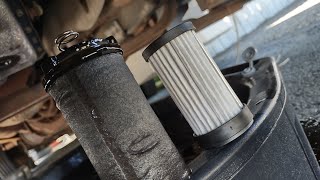

- 5R110W "TorqShift": A 5-speed automatic found in models from roughly 2005 onwards. This transmission is unique because it uses two filters: a primary filter inside the pan and a separate, external canister filter that looks like a roll of toilet paper. It is critical to change both for a complete service. 🎬 Watch: Step-by-step dual filter change on a 5R110W motorhome.
For Chevrolet / Workhorse Chassis Owners
If your Trail-Lite is on a GM chassis, it most likely has the durable 4L80E transmission. This is a 4-speed automatic that uses a single filter inside the transmission pan.
Symptoms of a Clogged Transmission Filter
When a transmission filter gets clogged, it restricts fluid flow, essentially starving the transmission. 🎬 Watch: 6 symptoms of a bad transmission filter explained. Ignoring these signs can lead to serious damage. Look out for:
- Delayed or Harsh Shifting: The vehicle may hesitate before going into gear, or shifts might feel jerky and abrupt.
- Whining or Grinding Noises: Strange noises from the transmission area often point to a lack of lubrication from restricted fluid flow.
- Transmission Fluid Leaks: A clogged filter can cause pressure to build up, forcing fluid out of seals or gaskets.
- Burning Smell: This is a serious sign that your transmission fluid is overheating because it can't circulate properly to cool the transmission.
- Slipping Gears: The transmission may unexpectedly shift out of gear while driving.
Known Issues & Recalls
While no widespread recalls exist for the transmission filters themselves, some transmission-related recalls have occurred. For example, some 2008 Chevrolet Express vans with the 4L80E transmission were recalled for an issue that could cause transmission damage. However, for the 2001-2008 model range, most issues are related to normal wear and tear rather than specific defects. Regular maintenance is your best defense.
Choosing the Right Aftermarket Part
For a routine maintenance part like a transmission filter kit, you don't always need to buy from the original dealer (OEM). High-quality aftermarket brands offer excellent performance and value.
Premium Guard is a known aftermarket brand that provides kits for these applications. These kits are a reliable choice and typically include:
- The transmission filter(s).
- A high-quality NBR rubber pan gasket.
A good gasket is important for a leak-free seal. Aftermarket gaskets are often designed with features to hold the bolts in place, making installation easier. Given the straightforward function of a filter, a reputable aftermarket kit provides the same level of protection as an OEM part for normal use, but at a better price point.
Pro Tip: Check the Fluid
When you check your engine oil, check your transmission fluid, too. The fluid should be bright red and smell slightly sweet. If it's dark brown, black, or has a burnt smell, it's a clear sign that the fluid and filter need to be changed immediately.
Cost of a New Transmission Filter Kit
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Kit | $40 - $57 |
| New OEM Kit | $60 - $150+ (especially for 5R110W dual-filter kits) |
| Shop Labor | $150 - $300 |
Frequently Asked Questions
How often should I change my transmission filter?
For a heavy vehicle like an RV, a good interval is every 30,000 miles or every two to three years, whichever comes first. Towing or driving in mountains puts more stress on the transmission, so you may consider more frequent changes.
Is replacing a transmission filter a DIY job?
Yes, if you are comfortable with auto maintenance. The main challenges are the mess—draining several quarts of fluid—and working underneath a large vehicle. It requires dropping the transmission pan, which is held on by many bolts. The difficulty is about a 3 out of 5. If you have a Ford with the 5R110W transmission, you'll also need to locate and replace the external filter.
What kind of transmission fluid should I use?
This is critical. Always use the specific fluid recommended in your chassis owner's manual. Ford and GM use different types of fluid (e.g., Mercon V, Mercon SP, Dexron VI). Using the wrong fluid can cause severe transmission damage.
Should I just drain the fluid or change the filter too?
Always change the filter when you change the fluid. A fluid change with a dirty filter is a job half-done. The filter holds contaminants, and leaving it in place means you are immediately circulating old debris through your new, clean fluid.
Helpful Videos
Technical Specifications
OEM Part Numbers: Ford 4R100 Filter: F6TZ-7A098-A Ford 5R110W Internal Filter: 5C3Z-7A098-B Ford 5R110W External Filter: XC3Z-7B155-BA GM 4L80E Filter: 24236933
Kit should include filter(s) and a transmission pan gasket. Gasket material is typically NBR (Nitrile Butadiene Rubber).
