Toyota Highlander Disc Brake Caliper Guide (2001-2008)
Everything you need to know about replacing a sticking or leaking brake caliper on your first-generation Highlander.
- Seizing and sticking are the most common caliper problems for the 2001-2008 Highlander, often caused by rust.
- Aftermarket calipers with a protective coating (like Powerstop or Raybestos Element3) are highly recommended for longevity, especially in rust-prone areas.
- Always replace calipers in pairs (both fronts or both rears) and flush the brake fluid to ensure safety and performance.
- The job is manageable for a DIY mechanic, but bleeding the brakes properly is a critical and mandatory final step.
Is Your Highlander's Brake Caliper Failing?
The first-generation Toyota Highlander is known for its reliability, but like any vehicle, some parts wear out. The brake calipers are a known weak point, especially as these SUVs get older. The most common problem is a seized or sticking caliper. This can be caused by rust and corrosion, especially in areas with harsh winters, or by the breakdown of old brake fluid. When a caliper sticks, it fails to release its grip on the brake rotor after you let go of the pedal.
Key Failure Points for 2001-2008 Highlander Calipers
- Seized Piston: The main piston inside the caliper corrodes and gets stuck. This keeps the brake pad pressed against the rotor constantly.
- Sticking Slide Pins: The caliper needs to slide freely on lubricated pins. If these pins rust or the grease dries up, the caliper can get stuck, causing uneven pad wear.
- Torn Dust Boots: The rubber boots that protect the piston and slide pins can tear. This lets in water and dirt, which leads to rust and seizing.
- Fluid Leaks: Seals can fail over time, causing brake fluid to leak. This is a serious safety issue that reduces stopping power.
Choosing the Right Aftermarket Caliper
You don't need to buy an expensive OEM caliper from a Toyota dealer. Aftermarket calipers offer excellent quality, often with improvements over the original design. Most aftermarket calipers for your Highlander are remanufactured. This means an original caliper core has been cleaned, inspected, and rebuilt with new seals, boots, and hardware. Many are also coated to prevent rust, which is a major advantage over bare metal calipers.
Aftermarket Brand Tiers
Here's a breakdown of the brands available, based on owner feedback and general industry reputation.
- Premium Coated (Best for Rust-Prone Areas): Brands like Powerstop, Cardone (Ultra series), and Raybestos (Element3) offer calipers with a durable powder coating or plating. This coating provides excellent protection against corrosion, making them a smart choice for wet or snowy climates. Powerstop calipers often come as a complete kit with new brackets and hardware.

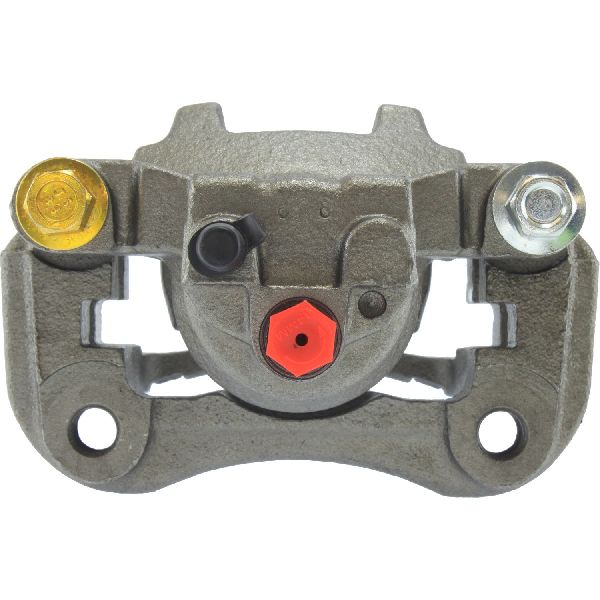

- Quality Standard (Good Value): Brands like Centric and Dynamic Friction offer reliable, quality remanufactured calipers. While they may not always have the heavy-duty coating of the premium brands, they are a solid choice for a standard replacement and are known to perform well. Some Centric calipers have been noted to have a thinner coating that may rust sooner.
- Economy: BBB Industries is a large remanufacturer that supplies many store brands. The quality can be consistent, but they are generally considered a budget-friendly option. Always inspect the part upon arrival for quality of finish and included hardware.
Cost of Replacing a Highlander Brake Caliper
| Part / Service | Estimated Cost |
|---|---|
| New Aftermarket Caliper (Single) | $50 - $170 |
| New OEM Caliper (Single) | $200 - $350+ |
| Shop Labor (per caliper) | $125 - $250 |
Frequently Asked Questions
Do I need to replace the caliper bracket?
Many new aftermarket calipers come with the bracket already attached. If yours doesn't, you can reuse your old bracket, but you must clean it thoroughly and lubricate the slide pins with high-temperature brake grease.
What are the torque specs for a Highlander caliper replacement?
For the front calipers on a 2001-2007 Highlander, the typical torque specs are: Caliper bracket bolts (17mm) to 79 ft-lbs, and caliper slide pin bolts (14mm) to 25 ft-lbs. The brake line banjo bolt is torqued to 21 ft-lbs. Always verify specs for your specific vehicle.
Were there any recalls on the 2001-2008 Highlander calipers?
No, there were no direct recalls for the brake calipers on the 2001-2008 Toyota Highlander. There was a recall for the brake master cylinder on 2004-2006 models, which could cause a spongy pedal or slow fluid leak, but this did not involve the calipers themselves.
🎬 Watch a summary of common first-generation Highlander problems and recalls.Can I rebuild my own caliper?
Yes, rebuild kits are available and it is possible to rebuild the caliper yourself. This involves taking the caliper apart, cleaning all components, and replacing the rubber seals and boots. However, it requires special tools, can be messy, and must be done carefully to avoid damaging the piston or caliper bore. Given the affordable price of high-quality remanufactured calipers, most DIY mechanics choose to replace the entire unit.
🎬 See a step-by-step guide on how to rebuild your calipers.Helpful Videos
Technical Specifications
OEM Part Numbers: 47750-48030 47730-48030 47750-48070 47730-48070 47850-48070 47830-48070
The 2001-2008 Highlander uses single-piston floating calipers on both the front and rear axles. The front and rear calipers are not interchangeable. There were no significant changes to the caliper design during this generation.
