Engine Water Pump Guide for the 2001-2008 Toyota Highlander
Everything you need to know before replacing the engine water pump on your first-generation Toyota Highlander.
- For V6 models, the water pump is driven by the timing belt and MUST be replaced as part of a complete timing belt kit.
- For 4-cylinder models, the water pump is driven by the serpentine belt and is a much simpler, less costly repair.
- Look for coolant leaks on the passenger side, engine overheating, or grinding noises as signs of failure.
- Choose a quality aftermarket brand like Gates, Dayco, or GMB for a reliable repair without the OEM price tag.
Is Your Highlander's Water Pump Failing?
A failing water pump is a serious issue that can leave you stranded and lead to expensive engine repairs. Catching the signs early is key. Look for these common symptoms:
- Coolant Leaks: This is the most common sign. You might see puddles of pink, green, or orange fluid under the front, passenger side of your Highlander. Sometimes, the leak is small and dries on the hot engine, leaving a crusty residue around the pump. The pump has a "weep hole," and while a slight stain can be normal, dark stains or active dripping indicates a seal failure.
- Engine Overheating: If your temperature gauge is climbing into the red, the water pump may not be circulating coolant effectively. Do not continue to drive an overheating vehicle, as it can cause catastrophic damage like a blown head gasket.
- Whining or Grinding Noises: A high-pitched whine or a low-pitched grinding sound from the front of the engine can signal that the water pump's internal bearings are failing. This sound may change with engine speed.
V6 vs. 4-Cylinder: A Critical Difference
It is extremely important to know which engine your 2001-2008 Highlander has. The water pump replacement job is very different between them.
- V6 Engines (3.0L 1MZ-FE & 3.3L 3MZ-FE): The water pump is driven by the timing belt. This is a major job. The timing belt, tensioner, and idler pulleys should always be replaced at the same time as the water pump. The labor is the most expensive part, so doing it all at once saves you from a repeat job.
- 4-Cylinder Engine (2.4L 2AZ-FE): The water pump is driven by the external serpentine belt. This is a much simpler and less expensive job to perform. 🎬 Watch this step-by-step guide for replacing the 4-cylinder water pump.
Choosing the Right Aftermarket Water Pump
The original equipment manufacturer (OEM) for Toyota water pumps is typically Aisin. While Aisin is an excellent choice, several aftermarket brands offer comparable quality at a better price. Here’s a breakdown of available brands to help you choose.
Brand Quality Tiers

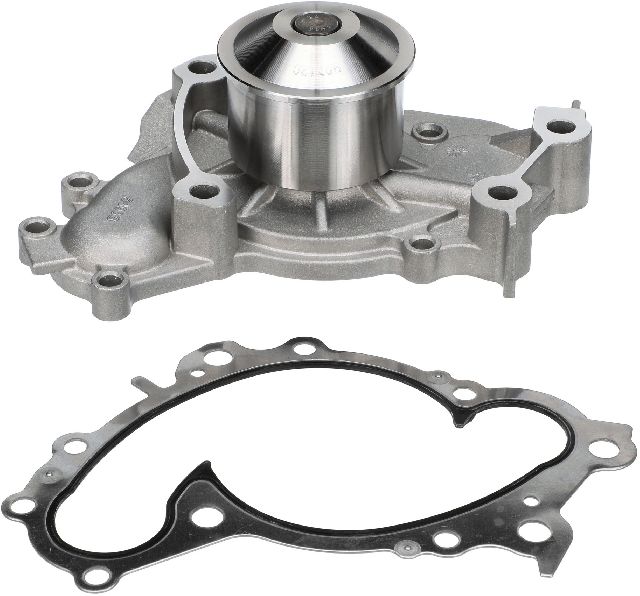

- Premium Aftermarket (OEM Quality): Brands like Gates and Dayco are well-respected and often include their water pumps in comprehensive timing belt kits. Beck Arnley has a reputation for sourcing parts from various manufacturers, sometimes even providing the original OEM part in their box. These brands are trusted by professional mechanics for their reliability.

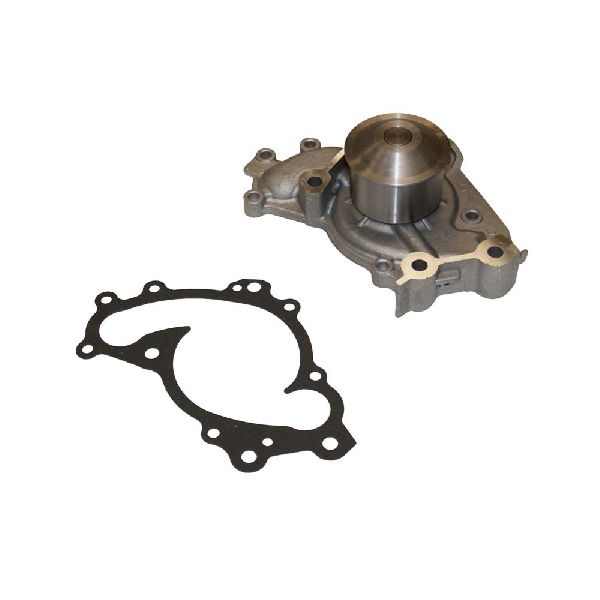

- Reliable Mid-Grade: GMB is a Korean company that is an OEM supplier for many Asian vehicles and has been a long-standing aftermarket manufacturer. They offer a good balance of quality and price, making them a popular choice.
- Economy Brands: Brands like US Motor Works and Ackoja fall into the value category. While they are more affordable, some user reviews mention inconsistent quality control, such as casting issues or premature bearing failure. These may be suitable for a budget repair, but might not offer the same longevity as premium brands.
Pro Tip: For V6 models, buying a complete timing belt kit from a reputable brand like Gates, Dayco, or Aisin is the smartest move. These kits include the timing belt, water pump with gasket, tensioner, and idlers, ensuring all related wear items are replaced together.
Cost of Replacing a Highlander Water Pump
Costs vary significantly based on your engine and whether you do the work yourself or hire a shop. The V6 is much more labor-intensive due to the timing belt.
| Part/Service | 4-Cylinder Cost | V6 Cost | Notes |
|---|---|---|---|
| New Aftermarket Water Pump | $45 - $90 | $50 - $130 | Price depends on brand quality. |
| New OEM Water Pump | $120 - $180 | $150 - $220 | Typically Aisin brand. |
| Shop Labor | $200 - $350 | $550 - $800+ | V6 labor is much higher as it includes timing belt replacement. |
| Total (V6 Kit + Labor) | - | $788 - $1265+ | Reflects a complete timing belt and water pump job. |
Frequently Asked Questions
Should I replace my timing belt with the water pump?

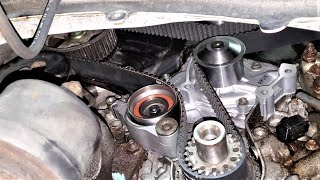

For V6 models, absolutely yes. The water pump is located behind the timing belt, and the labor to access it is the same. Replacing them together is standard practice to avoid paying for the same difficult job twice. 🎬 See how to replace the timing belt and water pump together. For 4-cylinder models, this is not necessary as the pump is driven by the serpentine belt.
What is a "weep hole"?
A weep hole is a small opening on the water pump housing. Its purpose is to allow a very small amount of coolant to seep out to lubricate the pump's internal seal. If you see significant dripping or a heavy, crusty buildup of dried coolant from this hole, it means the seal has failed and the pump needs to be replaced.
Do I need to use a specific type of coolant?
Yes. Toyota vehicles of this era require a high-quality, phosphate-based Asian antifreeze, often referred to as "Toyota Red." Using the wrong type of coolant can lead to corrosion and premature failure of cooling system components, including the new water pump.
Are there any recalls for the 2001-2008 Highlander water pump?
No, there are no specific recalls for the engine water pump on the 2001-2008 Toyota Highlander. However, Toyota has issued Technical Service Bulletins (TSBs) for later models regarding water pump leak diagnosis, which can provide useful information.
Helpful Videos
Technical Specifications
OEM Part Numbers: 16100-29085 16110-29055 16100-09070 16100-29075
Housing Material: Aluminum. Impeller Material: Stamped Steel or Composite. Drive Type: Timing Belt (V6) or Serpentine Belt (4-Cyl).
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
