Chevrolet Silverado 2500 HD (2001-2009) Fuel Pump Module Assembly Guide
Keep your Silverado 2500 HD running strong by understanding its fuel pump module and choosing the right replacement.
- Failure often presents as engine sputtering, stalling, or a long crank time.
- A faulty fuel gauge is a common symptom pointing to the need for a full module replacement.
- For reliability, choose top-tier aftermarket brands like Delphi or Bosch, which are often OEM suppliers.
- Replacing the pump by lifting the truck bed is often easier and safer than dropping the fuel tank.
Is Your Silverado's Fuel Pump Failing?
A failing fuel pump in your 2001-2009 Silverado 2500 HD will give you clear warning signs. The most common issue is a loss of power, engine sputtering, or stalling, especially under load or at highway speeds. You might also hear a loud whining or humming noise coming from the fuel tank area, which is the pump motor straining to work. Difficulty starting the engine, where it cranks for a long time before finally firing up, is another classic symptom. 🎬 Watch: 6 common signs of a failing fuel pump In many cases, the fuel gauge will become erratic or stop working correctly, which points to a failure of the sending unit inside the module assembly.
Known Issue: Fuel Level Sensor Failure
A very common problem on these trucks is not the pump itself, but the fuel level sensor (sending unit) that is part of the assembly. The sensor can wear out or get damaged, causing your fuel gauge to read empty, full, or fluctuate wildly. While the truck may still run fine, you won't know how much fuel you have. Since the sensor is integrated into the module, the entire assembly must be replaced to fix the gauge.
Choosing the Right Aftermarket Fuel Pump
When replacing the fuel pump module, you have several options. While an OEM AC Delco part is the original standard, high-quality aftermarket brands can offer reliable performance, often at a better price. It's important to choose wisely, as a low-quality pump can fail prematurely, forcing you to do the job all over again.
Brand Quality Tiers
- Top Tier (OEM-Equivalent Quality): Brands like Delphi and Bosch are often the original equipment manufacturers for GM and are widely considered the best choice for reliability and longevity. They use high-quality materials and are engineered to meet or exceed factory specifications.
- Mid-Grade (Reliable Aftermarket): Brands such as Spectra and Carter are well-known in the aftermarket and generally offer a good balance of quality and price. They are a solid choice for a daily driver and are more reliable than budget options.
- Economy (Budget-Friendly): Brands like GMB, AutoBest, and US Motor Works fall into the economy category. While the price is attractive, forum discussions suggest their reliability can be inconsistent, with some owners reporting early failures. URO Parts is another budget brand, often criticized for electronic component reliability in online forums. These may be suitable for a short-term fix but carry a higher risk of premature failure.
- Performance: Holley specializes in high-performance fuel systems. Their pumps are typically for modified engines that require higher fuel flow than stock and are not necessary for a standard replacement.
Pro Tip: Replace the Wiring Harness Connector
Many quality replacement fuel pump kits come with a new wiring harness connector. It is highly recommended that you replace the connector, even if the old one looks fine. The original connector can become corroded or brittle over time, leading to a poor electrical connection that can cause the new pump to fail prematurely.
Replacement Cost
The cost to replace a fuel pump module assembly can vary significantly based on the part brand and labor rates in your area.
| Item | Estimated Cost |
|---|---|
| New Aftermarket Part | $80 - $522 |
| New OEM Part | $863 - $1,035 |
| Shop Labor | $276 - $405 |
| Total Professional Replacement | $1,139 - $1,440 (with OEM part) |
Frequently Asked Questions
Should I drop the fuel tank or lift the truck bed to replace the pump?
Both methods work, but most mechanics and experienced DIYers prefer lifting the bed. Dropping a large, heavy fuel tank can be difficult and dangerous, especially if it's not empty. By removing the bed bolts and disconnecting the filler neck and taillight wiring, you can tilt or slide the bed back to get direct, open access to the top of the fuel tank and the pump module. This is generally considered safer and easier.
🎬 See this one-person method for replacing the pumpAre there any recalls for the 2001-2009 Silverado 2500 HD fuel pump?
Searches on the NHTSA database did not show widespread fuel pump recalls specifically for the 2001-2009 model years. However, later model years (2017-2019) with diesel engines and dual tanks had a recall for a fuel transfer issue between tanks. There was also a recall involving the Fuel Pump Control Module (FPCM) on some 2007-2014 models, which could cause a no-start condition.
What is a Fuel Pump Control Module (FPCM) and does my truck have one?
Starting around 2007, GM began using a Fuel Pump Control Module (FPCM), also called a fuel pump driver module. This module is typically located on a frame crossmember near the spare tire. It receives a signal from the main computer (ECM) and controls the voltage sent to the fuel pump, allowing for variable pump speed. These modules are a known failure point due to corrosion, which can cause a crank-no-start condition.
🎬 Learn how to diagnose a faulty fuel pump control moduleDo I need to replace anything else with the fuel pump?
Yes. It is critical to replace the in-line fuel filter (if equipped) and the fuel pump strainer (which usually comes with the new module) whenever you replace the fuel pump. Failing to do so can cause debris to enter the new pump and lead to immediate failure. Also, inspect and clean the inside of the fuel tank for any sediment or rust before installing the new pump.

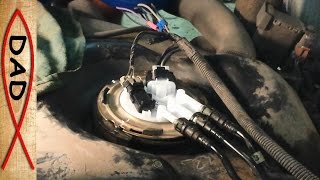

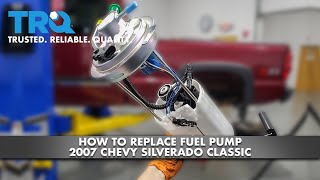

Helpful Videos
Technical Specifications
OEM Part Numbers: 15161174 15821962 20877116 20759945
The assembly includes the electric fuel pump, fuel level sending unit, strainer, and housing. It is installed inside the fuel tank. Models from 2007-2009 may also have a separate Fuel Pump Control Module (FPCM) located on the frame.
