Guide to the 2001-2009 Chevrolet Silverado 3500 HD Fuel Level Sensor
If your Silverado's fuel gauge is inaccurate or stuck, this guide explains how to choose the right replacement sensor.
- A faulty fuel level sensor is a common issue for 2001-2009 Silverado 3500 HDs, causing inaccurate or stuck gauge readings.
- Replacement is a major job requiring either lifting the bed or dropping the fuel tank, so it's not recommended for beginners.
- For high-mileage trucks, consider replacing the entire fuel pump module, not just the sensor, to save on future labor costs.
- Before replacement, try a fuel system cleaner; it's a cheap step that might fix a sensor with dirty contacts.
Is Your Fuel Gauge Lying to You?
A common problem on the 2001-2009 Chevrolet Silverado 3500 HD is a failing fuel level sensor. This part is critical for knowing how much fuel you have, and when it fails, it can leave you guessing. The most frequent signs of a problem are a fuel gauge that is stuck on empty, stuck on full, or moves around randomly. This can lead to you running out of fuel unexpectedly, which can be dangerous.
Symptoms of a Bad Fuel Level Sensor
Keep an eye out for these common signs of failure:
- Inaccurate Gauge Reading: The gauge shows you have more or less fuel than you actually do.
- Gauge Stuck on Empty or Full: No matter how much fuel is in the tank, the needle doesn't move. This is often caused by a broken or worn contact on the sensor inside the tank.
- Erratic Gauge Behavior: The needle jumps around unpredictably while you're driving.
- Check Engine Light: A failing sensor can trigger the check engine light and store diagnostic trouble codes like P0461, P0462, or P0463. 🎬 Watch: How to test your fuel gauge and sending unit
A Note on Dual Fuel Tanks
Some Silverado HD trucks were equipped with dual fuel tanks. While recalls for these systems mostly affect later model years (2011-2019), issues with fuel transfer between tanks can be related to faulty level sensors. A failure in the front tank's sensor can cause the rear pump to overfill the front tank, leading to serious problems like fuel leaks.

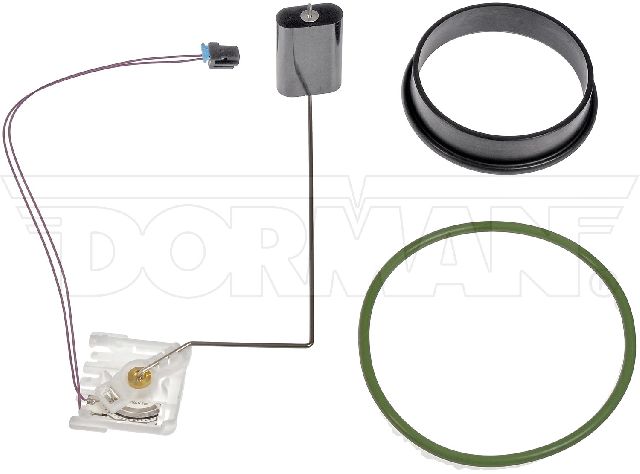

Choosing the Right Aftermarket Fuel Level Sensor
When replacing the fuel level sensor, you can buy the sensor itself or the entire fuel pump module, which includes the sensor. For high-mileage vehicles, replacing the whole module is often recommended since you already have the tank open. Here’s a look at the available aftermarket brands:
- ACDelco: Often considered the original equipment (OE) supplier for GM vehicles. Choosing an ACDelco part, especially their "GM Genuine" line, is the closest you can get to the original factory part. They are known for quality and proper fit, but typically come at a higher price.
- Dorman: A popular aftermarket brand that sometimes offers redesigned parts to fix common OE flaws. However, their quality can be inconsistent depending on the specific part. For a critical component like a fuel sender, some mechanics prefer to stick with OE or a top-tier brand.
- Standard Ignition (SMP): A well-regarded global manufacturer that produces parts meeting OE specifications. They are a solid choice for a reliable aftermarket replacement.
- Replacement: This brand typically represents a value-oriented option. While more affordable, the long-term durability may not match that of premium brands.
Pro Tip: Consider a Fuel System Cleaner First
In some cases, an erratic fuel gauge reading can be caused by sulfur deposits or gunk on the sensor's contacts. Before committing to a full replacement, which is a big job, you might try using a quality fuel system cleaner like Techron. It's an inexpensive first step that could potentially clean the contacts and solve the problem.
Aftermarket Fuel Level Sensor Cost
| Part Type | Estimated Price Range |
|---|---|
| New Aftermarket Fuel Level Sensor | $57.17 - $288.93 |
| New OEM Fuel Pump Module (includes sensor) | $535 - $889 |
| Shop Labor for Installation | $273 - $401 |
Note: Prices are estimates and can vary based on location, specific part, and the repair shop. Labor involves either dropping the fuel tank or lifting the truck bed, which takes several hours.
Frequently Asked Questions
Do I have to replace the entire fuel pump assembly?
No, you can often buy just the fuel level sensor. 🎬 See this walkthrough on replacing the fuel level sensor kit However, the labor to access the part is the same. On an older, high-mileage truck, it is often a good idea to replace the entire fuel pump module while the tank is already removed to prevent having to do the job again if the pump fails later.
Is this a DIY job?
This is an advanced repair. It requires either dropping the heavy fuel tank or unbolting and lifting the truck bed. 🎬 Watch: How to replace the fuel pump in under an hour Both methods require proper tools, safety precautions for working with fuel, and significant physical effort. It is not recommended for beginners.
Are there any recalls for the 2001-2009 Silverado 3500 HD fuel level sensor?
Searches did not find any specific safety recalls for the fuel level sensor on 2001-2009 models. Recalls found for fuel pump and sensor issues were for later model years.
What causes the fuel level sensor to fail?
Failure is commonly due to wear and tear. The small metal contacts, or "fingers," that slide across the resistor can wear down, break off, or get covered in deposits from the fuel. This leads to an open or incorrect electrical signal being sent to the gauge.
Helpful Videos
Technical Specifications
The fuel level sensor is typically integrated into the fuel pump module located inside the fuel tank. It operates using a float and a variable resistor to send a signal to the instrument cluster. The job requires disconnecting fuel lines and electrical connectors, and either dropping the tank or lifting the truck bed for access.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
