Engine Valve Cover Gasket Set Guide for the 2001-2009 Ford Escape
Leaking valve cover gaskets are a common issue on first-generation Ford Escapes, but it's a straightforward fix.
- A burning oil smell is the most common sign of a failed valve cover gasket on your Escape.
- On 3.0L V6 models, the rear gasket is very difficult to replace and requires removing the intake manifold.
- High-quality aftermarket brands like Fel-Pro or Victor Reinz are excellent, reliable choices for this repair.
- While replacing the gaskets, it's a good time to also change spark plugs, especially if they are contaminated with oil.
Is Your Escape Leaking Oil?
A burning oil smell or seeing smoke from the engine bay are common signs that the valve cover gasket on your 2001-2009 Ford Escape has failed. These gaskets are made of rubber and become hard, brittle, and shrink over time, allowing oil to seep out. This oil often drips onto the hot exhaust manifold, creating the burning smell and a potential fire hazard. You might also notice oil on the ground where you park or a low engine oil level.
🎬 Watch this video to identify common symptoms of a leak.V6 Engine: The Rear Gasket is the Challenge
If you have the 3.0L V6 engine, be aware that replacing the rear valve cover gasket is much more difficult than the front. Access is tight, and the upper intake manifold must be removed to get to it. Many owners choose to replace the spark plugs, PCV valve, and intake manifold gaskets at the same time, since these parts have to be removed anyway. The four-cylinder engines (2.0L, 2.3L) are much more direct, with the valve cover located right on top and easy to access.

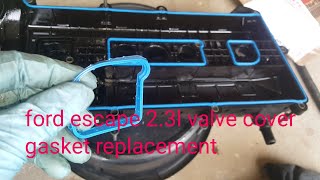

🎬 See how to replace the gasket on 2.3L four-cylinder models.Choosing the Right Aftermarket Gasket Set
You don't need to buy an expensive OEM gasket from the dealer. High-quality aftermarket brands often meet or exceed original specifications, sometimes using improved materials that last longer. Here’s a breakdown of the available brands, tiered by quality and reputation among mechanics.
Tier 1: Professional & OEM-Grade
- Fel-Pro: Often considered the top choice in the aftermarket. Fel-Pro is known for high-quality materials and engineering that often improves on the original design. Their PermaDry gaskets are a popular choice for a durable, long-lasting seal.
- Victor Reinz / Reinz: A well-respected brand that is an original equipment manufacturer for many car companies. Their gaskets are known for excellent fit and quality materials.
- Beck Arnley: This brand often sources its parts from the same manufacturers that supply the auto makers. You are often getting an OEM-quality part in a Beck Arnley box.
Tier 2: Standard/Budget-Friendly
- Apex: Generally viewed as a budget-friendly option. While it will get the job done, it may not have the same longevity or advanced material technology as the premium brands.
Cost of Replacing the Valve Cover Gasket Set
| Item | Estimated Cost |
|---|---|
| New Aftermarket Gasket Set | $30 - $101 |
| Shop Labor (4-Cylinder) | $140 - $304 |
| Shop Labor (V6 Engine) | $287 - $421+ |
| Total Professional Job (V6) | $326 - $460+ |
Frequently Asked Questions
Are there any recalls for the Ford Escape valve cover gasket?
No, there are no specific recalls for valve cover gasket leaks on the 2001-2009 Ford Escape. Searches on the NHTSA database did not show any recalls for this specific component. There were other recalls for this generation, including for ABS module wiring and sticking throttles, but not for the gaskets themselves.
Will a bad valve cover gasket cause a Check Engine Light?
Yes, it can. If the spark plug tube seals fail, oil can leak into the spark plug wells. This can foul the spark plugs or ignition coils, leading to an engine misfire and triggering the Check Engine Light with codes like P0300, P0301, etc.
Is this a good DIY job for a beginner?
For four-cylinder models, yes. The replacement is relatively simple with basic hand tools. For the 3.0L V6, the front gasket is easy, but the rear gasket is an advanced job due to the need to remove the intake manifold. If you are not comfortable with that level of disassembly, it's best to leave the V6 to a professional.
What else should I replace at the same time?
While you have everything apart, it's a great time to inspect and replace the spark plugs and ignition coils, especially if they are covered in oil. For V6 models, replacing the upper and lower intake manifold gaskets and the PCV valve is highly recommended since the intake has to come off anyway.

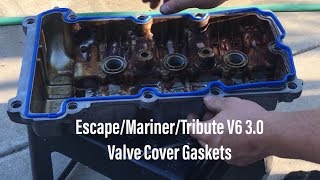

🎬 Follow this guide for V6 gasket and spark plug replacement.Helpful Videos
Technical Specifications
OEM Part Numbers: 4S4Z6582CA
Set typically includes the main valve cover gasket(s) and spark plug tube seals. V6 models require a set with two main gaskets. Material is typically molded rubber or silicone.
