Ford F-250 Ignition Coil Guide: 2001-2009 Models
Diagnose and choose the right replacement ignition coils for your 5.4L V8 or 6.8L V10 Triton engine.
- Ignition coil failure is very common on 2001-2009 F-250s, often caused by moisture getting into the spark plug wells.
- Symptoms include engine shaking, a rough idle, and a check engine light with 'P03XX' misfire codes.
- For reliability, choose premium aftermarket brands like Hitachi or Standard Ignition, or stick with OEM Motorcraft.
- To avoid future headaches, replace all coils at once along with the spark plugs, and always use dielectric grease.
Is Your F-250's Ignition Coil Failing?
Ignition coil failure is a common issue on the Ford Triton engines in this generation. The symptoms usually start small but can get worse, leaving you with a poorly running truck. Look out for these signs:
- Engine Misfires: This is the most common symptom. You'll feel it as a shudder, shake, or jerking, especially when accelerating or idling at a stoplight.
- Rough Idle: Your truck may vibrate or sound uneven and choppy when parked or waiting at an intersection.
- Check Engine Light: A failing coil will almost always trigger the check engine light. A flashing light indicates a severe misfire that could damage your catalytic converter. Common codes include P0300 (random misfire) or cylinder-specific codes like P0301, P0302, etc. 🎬 Watch: Diagnosing and fixing a cylinder 4 misfire code
- Loss of Power: Your truck will feel sluggish and weak when you try to accelerate.
- Poor Fuel Economy: When a cylinder isn't firing correctly, the engine becomes inefficient and burns more fuel to compensate.
Known Issue: Water Intrusion
The design of the Triton engine makes it possible for water, often from rain or washing the engine, to leak down into the spark plug wells. This moisture is a primary cause of ignition coil failure, as it shorts out the coil. When replacing a coil, always check the spark plug well for water or corrosion.
Choosing the Right Aftermarket Ignition Coil
When shopping for new coils, you'll find a wide range of quality and price. While OEM Motorcraft coils are considered the benchmark, several aftermarket brands offer a good balance of performance and value.
Brand Quality Tiers
- Premium Aftermarket (OEM-Quality): Brands like Hitachi and Standard Ignition (SMP) are well-regarded in the industry. Hitachi is often an original equipment manufacturer for many car brands, and their parts are known for reliability. Standard Ignition is a trusted aftermarket name that produces quality components. These are your best bet for a reliable, long-lasting repair without paying the full OEM price.
- Performance Aftermarket: Brands like Edelbrock focus on high-performance applications. While they can offer enhanced spark, for a daily-driven work truck, focusing on OEM-level reliability is often more practical.
- Standard/Budget Aftermarket: Brands such as Spectra, Global Parts, Holstein, and WAI Global fall into this category. Reviews for some of these brands can be mixed. For example, some users report repeated failures with budget-friendly Spectra coils, despite lifetime warranties. These can be a viable option if budget is the primary concern, but be aware that their lifespan may not match that of premium brands.
Should You Replace One or All?
If your truck has over 100,000 miles and one original coil fails, the others are likely not far behind. To avoid repeated repairs, it is best practice to replace all 8 (V8) or 10 (V10) coils at the same time, especially if you are already replacing the spark plugs.
Cost of Replacing Ignition Coils on a 2001-2009 F-250
The total cost depends on whether you do the job yourself and the quality of the parts you choose. Replacing coils is a DIY-friendly job for most owners.
| Part/Service | Estimated Cost |
|---|---|
| New OEM (Motorcraft) Coils | $45 - $75 per coil |
| New Aftermarket Coils | $24 - $192 per coil (depending on brand) |
| Shop Labor | $100 - $250 (for a full set) |
Frequently Asked Questions
Is it hard to replace an F-250 ignition coil?
No, for most cylinders it is a simple job. You only need basic tools, primarily a ratchet with an extension and a 7mm or 8mm socket. You disconnect the wire, undo one bolt, and pull the coil out. 🎬 Watch this step-by-step coil and spark plug replacement walkthrough Some cylinders at the back of the engine are harder to reach but still manageable.
Do I need to replace my spark plugs at the same time?
It is highly recommended. Worn spark plugs put extra strain on the ignition coils, which can cause them to fail prematurely. Be aware that 3-valve Triton engines (found in 2005-2009 models) are known for having spark plugs that can break during removal, so follow proper procedures carefully.
🎬 See how to remove 5.4L spark plugs without breaking themWhat is dielectric grease and do I need it?
Dielectric grease is a non-conductive, silicone-based grease applied to the inside of the coil boot before installing it. It helps seal out moisture, prevents corrosion, and makes future removal easier. Using it is a crucial step to prevent the common moisture-related failures on these trucks.
My mechanic found oil in the spark plug well. What does that mean?
Oil in the spark plug well is caused by a leaking valve cover gasket or spark plug tube seal. This oil can saturate the coil boot and cause the ignition coil to fail. If you find oil, you must replace the leaking gasket before installing a new coil, or the new part will fail as well.

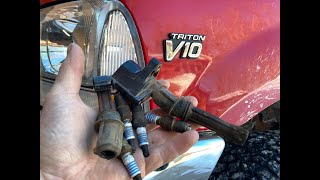

Helpful Videos
Technical Specifications
OEM Part Numbers: DG508 DG511 FD503
This generation F-250 uses a Coil-on-Plug (COP) system. The specific coil part number depends on the engine (5.4L V8 vs 6.8L V10) and model year, as there was a change from a '2-valve' to a '3-valve' engine design around 2005, which use different coils and boots.
