Ford F-250 Window Crank Handle Guide (2001-2009)
If your F-250's manual window crank is spinning freely or broken, this guide explains what you need for a simple fix.
- The most common failure is stripped plastic splines inside the handle, causing it to spin freely.
- Replacement is extremely easy and requires only a T20 Torx driver; no special tools are needed.
- Aftermarket brands like Motormite/Dorman offer upgraded metal-reinforced handles that are more durable than the original plastic design.
- There are no recalls or TSBs for this part; it is a simple wear-and-tear item.
Is Your Window Crank Handle Failing?
The window crank handle on the 2001-2009 Ford F-250 is a simple part, but it takes a lot of stress over the years. Because the original part is made of plastic, it's designed to be the weak link in the system. This is actually a good thing—it's much easier and cheaper to replace a $20 handle than the entire window regulator inside the door. 🎬 See how to remove the door panel to access internal parts. When the handle fails, you'll know it.
Symptoms of a Bad Window Crank Handle
- Handle Spins Freely: This is the most common symptom. You turn the crank, but the window doesn't move. This happens when the plastic splines inside the handle strip out and no longer grip the metal shaft of the window regulator.
- Cracked or Broken Handle: The plastic handle itself can become brittle over time and crack or snap off completely, especially if the window is stiff to operate.
- Handle is Loose or Falls Off: While less common, the T20 Torx screw holding the handle in place can loosen, making the crank feel wobbly.
Pro Tip: Check the Window Regulator
If your window is very hard to roll up or down, the handle is more likely to break. The stiffness is usually caused by a worn or dry window regulator mechanism inside the door. After replacing your handle, consider lubricating the window tracks with a silicone spray to ease operation and extend the life of the new handle.

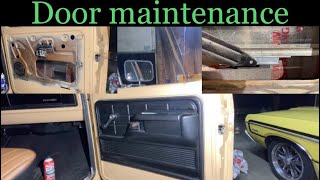

🎬 Learn how to lubricate your window regulator for smoother operation.Choosing a New Aftermarket Window Crank Handle
For a simple part like a window crank handle, there is little reason to pay a premium for an OEM part from a dealer. Aftermarket replacements are widely available, affordable, and often include design improvements.
- OEM (Original Equipment Manufacturer): This is the part you would get from a Ford dealership. It will be an exact match to the original plastic handle.
- Aftermarket (Motormite/Dorman): Aftermarket brands like Motormite, which is a Dorman brand, are the most common replacement option. They offer standard plastic replacements that function like the original. They also offer upgraded "OE FIX" versions that feature a metal arm and metal splines to prevent the common stripping issue from happening again. For a heavy-duty truck, this is a smart upgrade. The appearance may be slightly different from the factory design, so you might want to replace both sides for a perfect match.
Known Issues, Recalls, or TSBs
There are no known recalls or Technical Service Bulletins (TSBs) from Ford or the NHTSA for the manual window crank handle on the 2001-2009 Ford F-250. This component is a simple mechanical part with no bearing on vehicle safety, so issues are handled as routine repairs.
Installation Overview
Replacing the window crank handle on this generation of F-250 is one of the easiest repairs you can do. Unlike many vehicles that use a tricky clip, Ford used a simple screw.
- Use a small flathead screwdriver or trim tool to gently pry off the plastic cover cap at the center of the handle.
- Under the cap, you will see a T20 Torx screw. Remove this screw.
- Pull the handle straight off the splined shaft.
- To install the new handle, simply push it onto the shaft, re-install the T20 screw, and snap the cover back on. 🎬 Watch: A quick walkthrough of the handle removal process.
Cost of Window Crank Handle Replacement (2001-2009 Ford F-250)
| Item | Estimated Cost |
|---|---|
| New Aftermarket Handle | $16 - $21 |
| New OEM Handle | $25 - $40 |
| Shop Labor | $0 (DIY) - $50 |
Frequently Asked Questions
Do I need a special tool to replace my F-250's window crank?
All you need is a T20 Torx driver or bit, which is a common star-shaped bit found in most screwdriver sets. You may also want a small flathead screwdriver to pop the cover off. No special window crank removal tool is needed for these trucks.
Why did my window crank handle break?
The most common reason is failure of the internal plastic splines, which strip after years of use. The plastic handle can also become brittle and crack. This wear is accelerated if the window regulator is stiff or hard to move.
Will an aftermarket handle from Motormite fit and look like the original?
Yes, it is designed to match the fit and function of the original. However, some aftermarket parts, especially upgraded metal versions, may have a slightly different texture or knob shape. For a perfect visual match, it's often recommended to replace the handles on both the driver and passenger doors at the same time.
Can I just replace the stripped plastic part inside the handle?
No, the handle is a single assembly. The internal splines are molded into the plastic body of the handle. The entire handle must be replaced, but it is an inexpensive and simple job.
Helpful Videos
Technical Specifications
OEM Part Numbers: 4L3Z-1523342-AAA
Attachment Method: T20 Torx Screw
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
