Mercury Sable Brake Caliper Guide for 2001-2009 Models
Everything a 2001-2009 Mercury Sable owner needs to know about replacing a failing brake caliper.
- The most common caliper failure on a Sable is seizing due to rust; symptoms include pulling, burning smells, and uneven pad wear.
- For rust-prone climates, choosing a caliper with a protective coating (Powerstop, Cardone Ultra) is a smart investment for longevity.
- Always replace calipers in pairs (both fronts or both rears) to ensure safe, balanced braking.
- Replacing the flexible rubber brake hose at the same time as a seized caliper is highly recommended.
Is Your Sable's Brake Caliper Failing?
On a car like the 2001-2009 Mercury Sable, brake calipers often fail due to age and corrosion. The most common problems are a seized caliper piston or stuck slide pins, which prevent the caliper from releasing its grip on the rotor after you take your foot off the brake. This is a serious safety issue that requires immediate attention.
Key Symptoms of a Bad Caliper:
- Car Pulling to One Side: A stuck caliper can cause the car to pull towards the affected wheel, either while driving or when braking.
- Burning Smell or Smoke: A caliper that is constantly dragging creates extreme heat, which can produce a distinct burning smell from the wheel area.
- Uneven Brake Pad Wear: If you inspect your brake pads and find that one is significantly more worn than the other on the same wheel, it's a classic sign of a sticking caliper 🎬 Watch this video to quickly check if your brakes are sticking. or slide pins.
- Spongy or Mushy Brake Pedal: A failing seal inside the caliper can leak brake fluid, leading to a soft pedal feel and reduced stopping power. You might also notice a drop in your brake fluid reservoir level.
- Continuous Squealing or Grinding: Noise from a wheel that changes or stops only when you apply the brakes can point to a caliper problem, as it indicates parts are in contact when they shouldn't be.
Safety First: Brake Hoses
Sometimes, what seems like a stuck caliper is actually a collapsed or internally failed rubber brake hose. The hose can act like a one-way valve, trapping hydraulic pressure and keeping the caliper engaged. If you're replacing a caliper that was stuck, it is highly recommended to replace the flexible rubber brake hose for that wheel at the same time.
Choosing the Right Aftermarket Caliper
For the 2001-2009 Mercury Sable, you don't need to go back to the dealer for a quality caliper. The aftermarket offers a wide range of options, from budget-friendly remanufactured units to premium new parts. All listed brands are established suppliers for this vehicle.
Brand Tiers for Your Sable
- Premium & Coated (Best for Longevity): Powerstop, Cardone Ultra, Dynamic Friction, Raybestos (Coated lines)
These brands often offer calipers with a powder-coated or plated finish. This coating provides significant rust protection, which is a major advantage if you live in the rust belt where road salt is used. This helps prevent the caliper body from corroding and the slide pins from seizing. Powerstop is known for performance-oriented kits, while Cardone's 'Ultra' line and Raybestos' coated calipers are premium remanufactured options. - Standard Replacement (Good Value): Centric, Raybestos (Standard lines), ACDelco Professional, BBB Industries

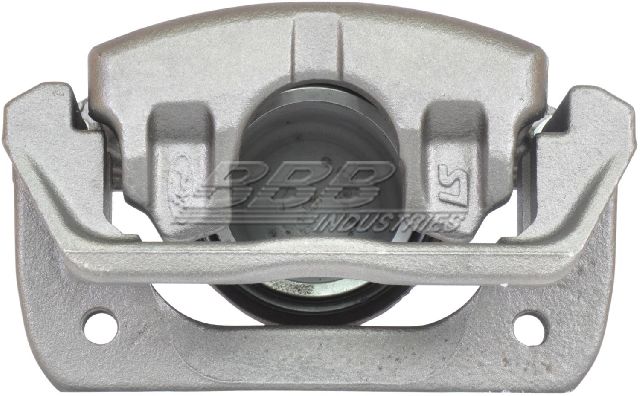

These are the workhorses of the aftermarket. They offer reliable, direct-fit replacement calipers that meet or exceed original specifications. While they may not have the premium coatings of the top tier, they provide excellent performance for daily driving and are a significant step up from budget parts. Centric and Raybestos are very common and well-regarded choices in this category. - Economy (Budget-Focused): Cardone (Standard Remanufactured)

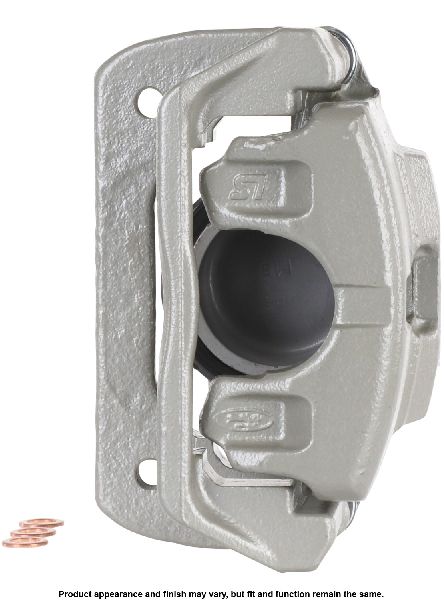

Standard remanufactured calipers from brands like Cardone are the most budget-friendly option. A remanufactured caliper uses the original factory part (the core), which is cleaned, inspected, and rebuilt with new seals, boots, and pistons. While quality can sometimes be inconsistent compared to new parts, a quality reman from a trusted brand is a perfectly viable and cost-effective solution for an older vehicle like the Sable.
Pro Tip: Loaded vs. Unloaded Calipers
You will see options for "Loaded" or "Semi-Loaded" calipers. A loaded caliper comes complete with a new mounting bracket and new brake pads already installed. This can be a huge time-saver, especially if your old bracket's slide pins are rusted and seized. An unloaded caliper is just the caliper body itself. If your existing bracket is in good shape, you can save money with an unloaded caliper, but always clean and lubricate the slide pins 🎬 See how to change pads and rotors on your Mercury Sable. thoroughly during installation.
Known Issues, Recalls, and Bulletins
The search for official NHTSA recalls for the 2001-2009 Mercury Sable did not find any recalls specifically for the brake calipers themselves.
- NHTSA Investigation (2000-2003 Models): An investigation was conducted for engine cable issues that could prevent the throttle from returning to idle, which some drivers perceived as a braking problem because the car wouldn't slow down as expected. This was not a fault of the brake system itself.
- Aftermarket Brake Pad Recall (2001-2005 Models): In 2016, Bosch recalled certain aftermarket brake pads that fit these Sables because a shim could shift and contact the rotor. This was a recall on a specific aftermarket pad, not the vehicle's caliper system.
- TSB on Grease: Ford issued a technical service bulletin (TSB #95212) warning technicians not to use petroleum-based grease on brake components, as it can damage rubber parts like caliper seals and boots. Always use a dedicated silicone or synthetic brake lubricant.
Cost to Replace a Mercury Sable Brake Caliper
The cost can vary based on your location, the specific brand you choose, and whether you perform the labor yourself.
| Part / Service | Estimated Cost |
|---|---|
| New Aftermarket Caliper | $47.23 - $235.16 |
| Shop Labor | $150 - $252 |
| Total Professional Replacement (per caliper) | $197 - $487 |
Frequently Asked Questions
Should I replace brake calipers in pairs?
Yes, it is highly recommended. Replacing both front or both rear calipers at the same time ensures even braking performance and prevents the car from pulling to one side. A new caliper will function differently than an old, worn one, creating a potential safety hazard if they are not matched.
What is a 'core charge' and how does it work?
Many remanufactured calipers have a core charge. This is a refundable deposit you pay when you buy the part. You get the deposit back when you return your old, worn-out caliper to the seller. This is because the manufacturer needs the old part (the 'core') to rebuild for the next customer.
Do I need special tools to replace a Sable caliper?
For a front caliper on a 2001-2009 Sable, you'll need standard tools like a jack, jack stands, a lug wrench, and a socket set (typically 12mm and 15mm bolts). You will also need a C-clamp or piston compressor tool to retract the piston on the new caliper and a tool to bleed the brakes. For rear calipers, you may need a special tool that rotates the piston as it compresses it.
Do I have to bleed the brakes after replacing a caliper?
Yes, absolutely. Whenever you open the hydraulic system by removing a caliper, air gets into the lines. You must bleed the brake system to remove all the air. Air in the lines will cause a spongy, ineffective brake pedal and is extremely dangerous.
Helpful Videos
Technical Specifications
The 2001-2009 Mercury Sable uses a single-piston floating caliper design for both front and rear brakes. Replacement requires bleeding the brake system. The rear calipers require a tool to rotate the piston during compression.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
