Guide to Your 2001-2009 Volkswagen Golf Disc Brake Hardware Kit
Don't let worn-out clips and springs ruin your brake job; here's what you need to know for your MK4 or MK5 Golf.
- Always replace your disc brake hardware when you replace your brake pads to ensure quiet operation and even wear.
- Choose aftermarket kits with anti-corrosion coatings (stainless steel, Geomet, etc.) to prevent rust and seizing.
- Verify you are buying the correct kit for your Golf's year and axle (front or rear), as MK4 and MK5 parts differ.
- Proper installation requires cleaning the caliper bracket and lubricating the guide pins with silicone-based brake grease.
Is It Time for a New Hardware Kit?
The small metal clips and rubber boots in your brake system wear out over time. They are exposed to intense heat, water, and road salt, leading to rust and fatigue. Rusted or weak hardware can cause serious braking issues. It is a non-negotiable part of any complete brake pad and rotor replacement.
🎬 Watch: Step-by-step guide to replacing front brake pads and hardware.Symptoms of Failing Brake Hardware
- Rattling or Clunking Noises: The most common sign is a rattling sound from the wheels, especially over bumps. This happens when the clips lose their tension and can no longer hold the brake pads tightly.
- Squealing or Scraping: Worn hardware can cause pads to sit at an angle, leading to high-pitched squealing when you brake.
- Uneven Brake Pad Wear: If the guide pins can't move freely due to rust or old grease, the brake pads will wear down unevenly. This reduces braking performance and forces you to replace pads more often.
- Vehicle Pulling to One Side: A seized caliper guide pin can cause the brake on one wheel to drag, making your Golf pull to the left or right when you apply the brakes.
Known Issues for 2001-2009 Golfs
Rust Seizure: The original factory hardware on both MK4 (2001-2006) and MK5 (2004-2009) Golfs is prone to rust, especially in wet or snowy climates. This can cause guide pins to seize in the caliper bracket and brake pads to get stuck. This is a primary cause of uneven pad wear and caliper failure.
🎬 See how seized guide pins cause hardware failure and how to fix it.Safety Recalls: While there are no recalls for the hardware itself, be aware of related brake system recalls:
- NHTSA 16V913: Affects some 2009-2010 models for a potential ABS control module failure. A dealer can perform a software update to fix this.
- NHTSA 07V063000: Affects 1999-2006 models for a faulty brake light switch.
Choosing the Right Aftermarket Hardware Kit
For a part like this, aftermarket options are often just as good, if not better, than OEM. Many aftermarket kits use stainless steel or have special coatings to prevent rust, directly addressing the common failure point of the original parts.
Brand Quality Tiers
When shopping for a new kit, you'll find several brands available. Here’s how they generally stack up based on quality and reputation among VW owners and mechanics:
- Tier 1: Premium & OE-Style: Raybestos and Centric are well-regarded brands that offer high-quality, durable hardware. Their kits with coated or stainless steel components (like Raybestos Element3 or Centric's coated kits) are an excellent choice for longevity and rust prevention.
- Tier 2: Standard Aftermarket: Brands like Dorman, Carlson, and Dynamic Friction offer reliable, budget-friendly options. These are a significant step up from reusing old hardware and are perfectly suitable for daily driving. If available, choose a coated version to get better corrosion resistance.
Pro Tip: Always choose a kit with a corrosion-resistant coating (often black or gray). This small feature makes a big difference in preventing the clips and pins from seizing, especially if you live where roads are salted in winter.
Aftermarket vs. OEM Hardware Cost
| Part Type | Estimated Cost (Per Axle) | Notes |
|---|---|---|
| New Aftermarket | $5 - $41 | Price depends on brand and whether the kit includes coatings. Excellent value. |
| New OEM (Volkswagen) | $40 - $75 | Guaranteed fit but may be more expensive and lack the anti-corrosion features of top aftermarket kits. |
| Shop Labor | $0 - $50 | Labor should be included if done with a brake pad/rotor job. If done alone, expect a small labor charge. |
Frequently Asked Questions (FAQ)
Do I really need to replace the hardware with my brake pads?
Yes. It is highly recommended. Old clips lose tension and old boots can tear, leading to noise and premature wear on your new pads and rotors. For the low cost, it is cheap insurance for your entire brake job.
What's included in a typical disc brake hardware kit?

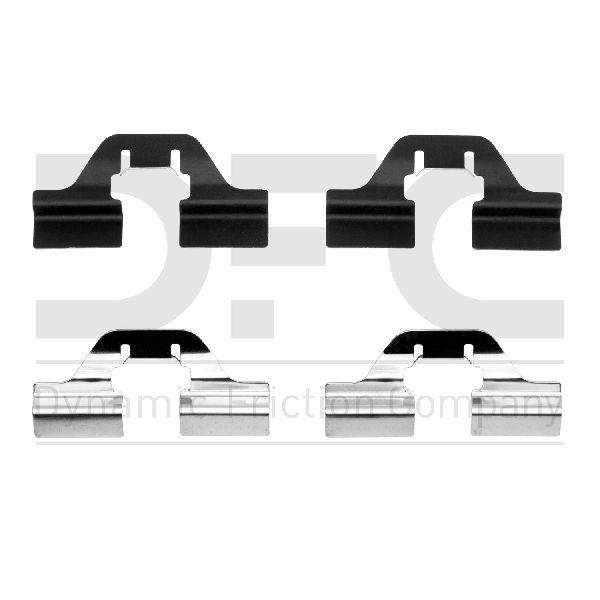

A kit for one axle (front or rear) usually includes all the necessary anti-rattle clips/springs for both sides, and sometimes new guide pin boots and a small packet of brake lubricant.
Can I reuse my old guide pins?
Yes, as long as they are not heavily corroded or pitted. You must clean all the old grease and rust off them with a wire brush and apply new, high-temperature silicone brake lubricant 🎬 Learn how to easily remove a stuck or rusted guide pin. before reinstalling them. If they are damaged, some premium kits include new pins.
Is the hardware the same for the front and rear brakes?
No. The front and rear brake hardware kits are different and sold separately. Be sure to buy the correct kit for the axle you are working on.
Will new hardware fix my squealing brakes?
It can help. Squealing is often caused by vibration, and new anti-rattle clips are designed to stop it. However, squealing can also be caused by the brake pad material itself or a lack of lubrication on the pad contact points.
Helpful Videos
Technical Specifications
OEM Part Numbers: 1J0698269 8N0698269 1K0698269A 1K0698269B
Kit components vary by front/rear axle and specific model year (MK4 vs. MK5). Always verify fitment.
