Chrysler PT Cruiser A/C Clutch Cycle Switch Guide (2001-2010)
If your PT Cruiser's air conditioning is blowing warm or not working at all, the A/C clutch cycle switch is a common and easy-to-fix problem.
- A non-working A/C is often caused by this inexpensive switch, not the compressor.
- You can test the switch in minutes by jumping the connector with a paperclip.
- Replacement is extremely easy and does NOT require discharging the A/C system.
- Aftermarket brands like Four Seasons or Global Parts are cost-effective choices for this simple part.
Is Your PT Cruiser's A/C Failing?
When the air conditioning in a 2001-2010 Chrysler PT Cruiser stops blowing cold, many owners fear an expensive compressor replacement. However, a much smaller, cheaper part is often the culprit: the A/C clutch cycle switch. This sensor is a common failure point that can shut down your entire A/C system. Understanding its symptoms can save you from a costly misdiagnosis.
Symptoms of a Bad A/C Clutch Cycle Switch
A failing switch on your PT Cruiser will produce a few distinct symptoms. The most common sign is when the A/C system blows air that is only coolish or completely warm. You may also notice that the cooling is intermittent, working one moment and not the next. In many cases, the A/C compressor will not engage at all. You won't hear the characteristic 'click' from the engine bay when you turn on the A/C, and the engine RPMs won't change. This is the most direct symptom of a failed switch preventing the compressor from activating.
🎬 Watch: See how a bad switch stops the compressor from engaging.Quickly Test the Switch
You can perform a simple test to see if the switch is the problem. Locate the switch on the A/C line on the passenger side near the firewall. Unplug its two-wire electrical connector. With the engine running and A/C on, carefully use a small wire or paperclip to 'jump' the two terminals in the connector. If the A/C compressor clutch clicks on and starts spinning, you have confirmed the switch is bad and needs replacement. Do not run the system like this for more than a few seconds.

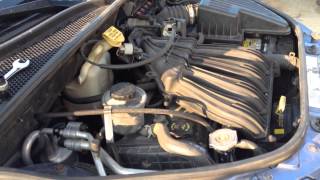

🎬 See this video for a walkthrough of the paperclip jump test.Choosing an Aftermarket A/C Clutch Cycle Switch
For a simple, low-cost part like the A/C clutch cycle switch, an aftermarket replacement is a practical choice for most PT Cruiser owners. The original Mopar part can be significantly more expensive than aftermarket options.
- Four Seasons: A widely available brand that is part of Standard Motor Products. For a simple switch like this, it is generally considered a reliable and cost-effective option.
- Global Parts (GPD): Another common aftermarket brand. Reviews for more complex parts like compressors are mixed, but for a simple pressure switch, it serves as a budget-friendly alternative.
For this specific part, both brands offer a functional replacement that meets OEM specifications for a fraction of the dealer price. Given the ease of replacement, the risk of using an aftermarket part is very low.
Don't Ignore the Problem
While you can drive the car with a bad A/C switch, you should not run the A/C system. Ignoring the symptoms could potentially lead to more significant issues if the root cause is something other than the switch, such as a pressure problem that could damage the compressor.
Cost of Replacing a PT Cruiser A/C Clutch Cycle Switch (2001-2010)
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket (Four Seasons, Global Parts) | $17 - $33 |
| New OEM (Mopar) | $70 - $80 |
| Shop Labor | $50 - $125 |
| Total Professional Replacement | $80 - $205 |
Frequently Asked Questions (FAQ)
Do I need to drain the refrigerant to replace this switch?
No. The A/C system on the PT Cruiser has a Schrader valve where the switch connects, similar to a tire's air valve. This allows you to unscrew the old switch and install the new one without losing any refrigerant, making it a quick and clean job.
Where is the A/C clutch cycle switch located on a PT Cruiser?
You can find the switch on the passenger side of the engine bay, attached to one of the metal A/C lines running along the firewall. It has a small two-wire electrical connector attached to it.
Is this a difficult part to replace myself?
No, this is one of the easiest A/C repairs you can do. The only tool typically required is a 16mm or 5/8" wrench. The entire process of unplugging the connector, swapping the switch, and plugging it back in takes less than 15 minutes.
🎬 Watch: A quick guide to replacing the A/C pressure switch yourself.Are there any recalls for the PT Cruiser A/C switch?
No, there are no recalls or common Technical Service Bulletins (TSBs) specifically for the A/C clutch cycle switch on the 2001-2010 PT Cruiser. Searches may show recalls for a 'clutch switch', but this refers to the clutch interlock switch on manual transmission models, which is a different part and unrelated to the air conditioning.
Helpful Videos
Technical Specifications
OEM Part Numbers: 5073612AA 5174032AA
Connector: 2-Pin Blade, Female. Location: Low-Pressure A/C Line.
