Chrysler PT Cruiser Transmission Filter Kit Guide (2001-2010)
Keep your PT Cruiser's automatic transmission shifting smoothly by understanding its filter kit.
- Only use ATF+4 certified transmission fluid to avoid shifting problems and potential damage.
- A clogged filter can cause serious symptoms like harsh shifting, slipping, and overheating.
- Replacing the filter is a messy but straightforward DIY job that can save you money and prevent major repairs.
- Many owners prefer using RTV sealant instead of a gasket for a more reliable, leak-free seal on the transmission pan.
Is Your PT Cruiser Shifting Strangely? It Could Be the Transmission Filter.
If your PT Cruiser starts to hesitate, shift harshly, or make strange noises, a clogged transmission filter might be the cause. This part is a critical maintenance item for the 4-speed automatic transmission (known as the 41TE or A604) used in all 2001-2010 models. Ignoring a clogged filter can lead to poor performance and, eventually, serious transmission damage. Replacing the filter is a straightforward job that can prevent expensive repairs down the road.
Critical Symptoms of a Clogged Filter
If you experience these symptoms, you should stop driving and have the transmission inspected immediately to avoid severe damage:
- Delayed Shifting: The car hesitates for a few seconds before engaging Drive or Reverse.
- Slipping Gears: The engine RPMs flare up during shifts, but the car doesn't accelerate properly.
- Limp Mode: The transmission gets stuck in one gear (usually second) and won't shift up or down. This can be triggered by low fluid pressure from a clogged filter.
- Burning Smell: A burnt toast smell indicates the transmission fluid is overheating, a common result of a clogged filter restricting flow.
Choosing the Right Aftermarket Transmission Filter Kit
For a vehicle like the PT Cruiser, aftermarket parts offer excellent value. The 41TE transmission is not overly demanding, but using a quality part is still important. The main components are the filter itself and the pan gasket. Some owners and mechanics prefer using RTV sealant instead of a gasket for a better seal.
| Brand Tier | Brands | Typical Price Range | Notes |
|---|---|---|---|
| Premium Aftermarket | Wix | $25 - $55 | Wix is a highly respected name in filtration. Their kits are known for quality materials and reliable performance, making them a top choice for owners who want peace of mind. |
| Standard Aftermarket | ACDelco, ATP | $17 - $40 | These brands offer a great balance of quality and price. ATP is a well-known transmission parts specialist, and ACDelco is a trusted general aftermarket supplier. They provide OEM-equivalent performance for daily driving. |
| Economy Aftermarket | Pioneer Cable, Premium Guard | $17 - $30 | These brands are a good option for budget-conscious repairs. While they meet basic requirements, the materials, especially for the gasket, may not be as robust as premium options. They are functional for keeping your PT Cruiser on the road. |
Pro Tip: Don't Forget the Fluid!
When changing the transmission filter, you will also need to change the fluid. Your PT Cruiser's 41TE transmission requires a specific fluid: ATF+4. Do not use Dexron, Mercon, or any "universal" fluid that does not explicitly list the Chrysler MS-9602 (ATF+4) specification. Using the wrong fluid can cause shifting problems and damage the transmission. You will need approximately 4 to 5 quarts for a pan-drop and filter change.
Frequently Asked Questions
How often should I change my PT Cruiser's transmission filter?
While many modern transmissions are considered "filled for life," the 41TE benefits from regular service. A good rule of thumb is to change the fluid and filter every 60,000 to 90,000 miles under normal driving conditions, or sooner if you drive in heavy traffic or hot weather.
Is replacing the transmission filter a DIY job?
Yes, for someone with basic mechanical skills, this is a very feasible DIY project. 🎬 See this step-by-step guide to servicing your automatic transmission It involves raising the front of the vehicle, draining the fluid by dropping the transmission pan, replacing the filter and gasket, and refilling with new fluid. The main challenge is that it can be a messy job.
Should I use the gasket in the kit or RTV sealant?
Many experienced mechanics and PT Cruiser owners recommend using a quality RTV sealant instead of the gasket that comes in the kit. The factory used RTV, and it is often considered more reliable for preventing leaks on the stamped steel pan. 🎬 Watch: Expert tips to make your 41TE transmission last longer If you use the gasket, ensure both surfaces are perfectly clean.
Are there any recalls for the PT Cruiser transmission?
There have been no specific NHTSA recalls for the transmission filter or internal transmission components on the 2001-2010 PT Cruiser. Most issues are related to normal wear and maintenance.
Helpful Videos
Technical Specifications

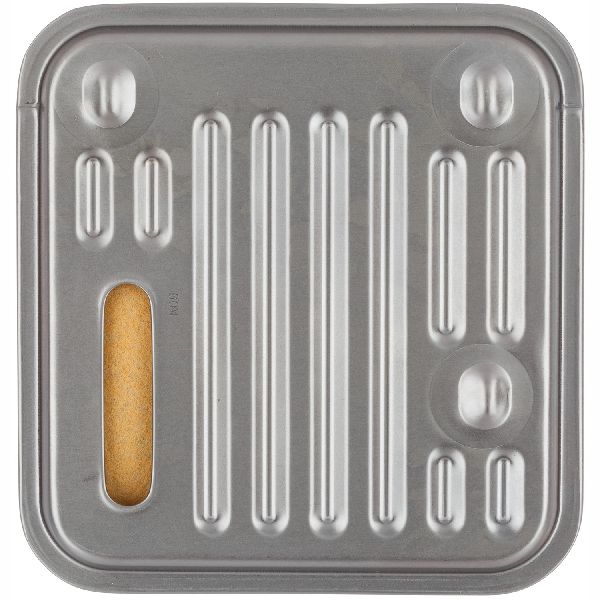

OEM Part Numbers: 4864505AB 4431722
Fits the 4-speed 41TE (also called A604) automatic transaxle used in all 2001-2010 Chrysler PT Cruisers. Kit includes the filter and a pan gasket. Requires approximately 4-5 quarts of ATF+4 fluid for a filter service.
