Chrysler Sebring Ignition Coil Guide for 2001-2010 Models
Solving misfires and poor performance in your Sebring starts with understanding your ignition coils.
- Identify your engine (2.4L I4, 2.7L V6, or 3.5L V6) before buying, as it determines the difficulty of the job.
- For V6 models, always replace the three rear coils and spark plugs at the same time to save on significant future labor costs.
- A flashing check engine light indicates a severe misfire; reduce driving to prevent expensive catalytic converter damage.
- Quality aftermarket brands like Delphi or NGK offer a reliable, cost-effective alternative to more expensive OEM Mopar parts for this vehicle.
Understanding Ignition Coil Failure in Your Sebring
An ignition coil is a wear-and-tear part that operates under high heat and constant vibration. Over time, the internal windings can break down or the insulation can fail, causing it to stop working correctly. When a coil fails on your Sebring, the cylinder it's responsible for won't fire properly, leading to a noticeable drop in engine performance. This is known as a misfire.
Engine Differences and Replacement Difficulty
The 2001-2010 Chrysler Sebring was built with several different engines, which affects ignition coil replacement. Always confirm your engine size before ordering parts.
- 2.4L 4-Cylinder (2001-2010): This is the easiest engine to work on. The four ignition coils are located directly on top of the engine under the plastic cover and are easily accessible. The job is straightforward, requiring only basic hand tools.
- 2.7L V6 (2001-2010): This engine presents a significant challenge. While the three front-bank ignition coils are easy to access, the three rear-bank coils are located underneath the upper intake manifold. Replacing the rear coils is a much more involved and time-consuming job that is difficult for a beginner.
- 3.5L V6 (2007-2010): Similar to the 2.7L V6, accessing the rear ignition coils on this engine is difficult and typically requires removing the intake manifold.
V6 Engine Warning
For 2.7L and 3.5L V6 engines, the labor to replace the rear coils is significantly higher due to the need to remove the intake manifold. Because of the high labor cost, it is strongly recommended to replace all three rear coils at once, even if only one has failed. It is also a good time to replace the spark plugs while the manifold is off.
Choosing the Right Aftermarket Ignition Coil
For a vehicle like the 2001-2010 Sebring, a quality aftermarket coil often provides the best balance of price and performance. Not all aftermarket brands are created equal. They can be grouped into tiers based on quality and reputation.
Brand Quality Tiers
- Premium Aftermarket (OEM-Equivalent): Brands like Delphi, NGK, and Hitachi are often Original Equipment (OE) suppliers to automakers. They are known for high-quality materials and rigorous testing, designed to meet or exceed Mopar specifications. These are a reliable choice for longevity and performance. Standard Ignition (SMP) is also a well-regarded brand with a reputation for quality parts.
- Quality Aftermarket: Brands such as Spectra, Walker Products, and Holstein offer a good balance of quality and value. They are dependable options for daily driving and are a significant step up from economy parts.
- Economy Brands: This category includes brands like DriveWire and Skyward. While they are the most affordable, they may use lower-cost materials, which can lead to a shorter service life. These are best for budget-focused repairs where initial cost is the primary concern.
Pro Tip: Replace in Sets?
On the 4-cylinder engine, you can replace just the single failed coil. On V6 engines, due to the difficult labor for the rear bank, it's wise to replace all three rear coils at the same time. Many owners also choose to replace all coils at once for consistent performance and to avoid future failures, especially on higher-mileage vehicles.
Known Issues, Recalls, and TSBs
Searches for official recalls from the National Highway Traffic Safety Administration (NHTSA) did not find any specific recalls for ignition coil failure on the 2001-2010 Chrysler Sebring. However, a Technical Service Bulletin (TSB) was issued for some 2008 Sebring models with the 2.0L or 2.4L engine. TSB 08-016-08 addresses a rough idle and misfire codes (P0300-P0304) that could be caused by faulty terminals in the crankshaft position sensor connector, not the ignition coils themselves. This highlights the importance of proper diagnosis, as other sensor issues can mimic coil failure.
Frequently Asked Questions
How do I know if my ignition coil is bad?
The most common signs are a flashing or solid Check Engine Light, an engine that runs rough or shakes (misfires), poor acceleration, and decreased fuel economy. You can diagnose a specific bad coil on a 4-cylinder or the front of a V6 by swapping the suspected bad coil with a known good one from another cylinder. If the misfire code follows the coil to the new cylinder (e.g., a P0301 changes to a P0302 after swapping coils from cylinder 1 to 2), the coil is bad.
Should I replace all my ignition coils at once?
It's a good preventative measure, especially for cars over 100,000 miles, as the other original coils may be near the end of their life. For the V6 engines, it is almost essential to replace the three rear coils as a set due to the high labor cost to access them.
What are the misfire codes for my Sebring?
The Check Engine Light will trigger diagnostic trouble codes (DTCs) that can be read with an OBD2 scanner. Codes P0300 through P0306 are for misfires. P0300 is a random misfire, while P0301 through P0306 indicate a misfire on a specific cylinder (e.g., P0301 is cylinder 1, P0302 is cylinder 2).
Do I need to replace spark plugs with the ignition coils?
It is highly recommended. Worn or fouled spark plugs can put extra strain on the ignition coils, causing them to fail prematurely. Since you are already removing the coil to access the plug, replacing them at the same time saves on future labor. This is especially true for the rear bank of the V6 engines.
Helpful Videos
Technical Specifications

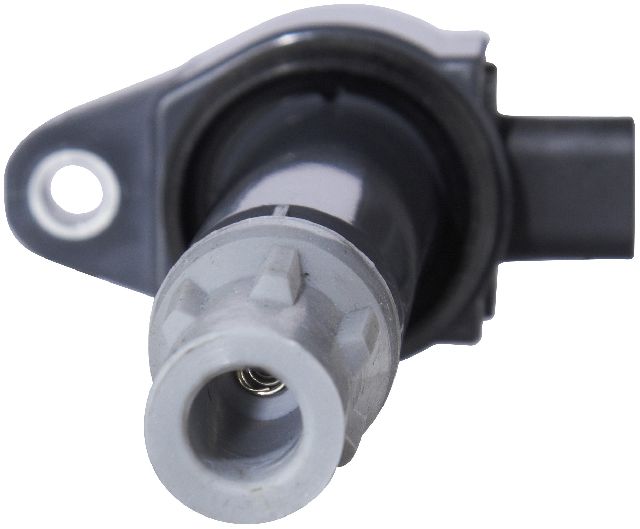

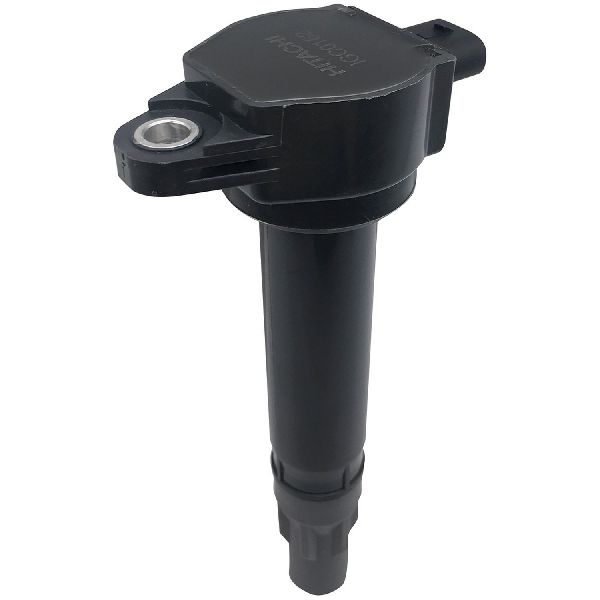

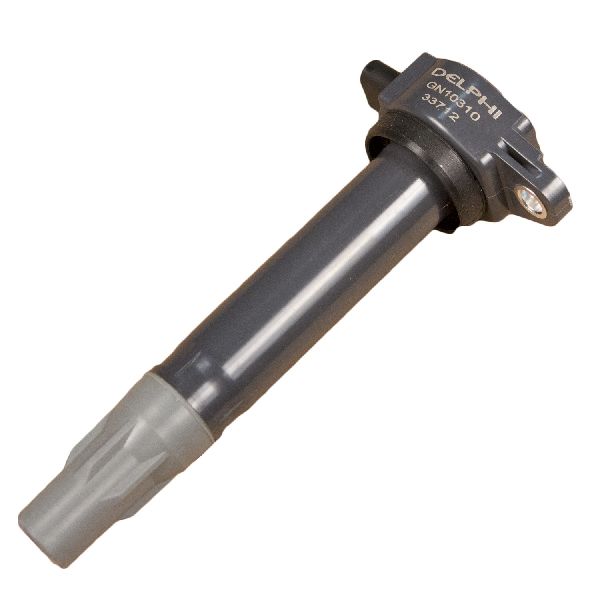

OEM Part Numbers: 4609095AI 4606869AD 4609103AC
The 2001-2010 Chrysler Sebring uses a coil-on-plug ignition system. Each coil is a pencil-style design that fits directly onto the spark plug. The specific coil depends on the engine (2.4L I4, 2.7L V6, 3.5L V6) and model year. All versions use a 3-pin electrical connector.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
