Chrysler Sebring Ignition Knock Sensor: A Guide for 2001-2010 Models
Understanding how to diagnose and choose the right replacement knock sensor for your Sebring's engine.
- A bad knock sensor will trigger a Check Engine Light (usually code P0325) and cause poor acceleration and fuel economy.
- Replacement is labor-intensive as the sensor is located under the intake manifold on all Sebring engines.
- Due to high labor costs, using a top-tier aftermarket brand (Delphi, NGK) or OEM Mopar part is strongly recommended over budget options.
- The sensor bolt must be tightened with a torque wrench to the correct specification to ensure it functions properly.
Is Your Chrysler Sebring Knock Sensor Failing?
A bad knock sensor can cause problems that you'll definitely notice. Because the engine's computer relies on this sensor for correct ignition timing, a failure often forces the computer into a 'safe mode' to prevent damage. This results in poor performance that can be frustrating for any driver.
Symptoms of a Bad Knock Sensor
- Check Engine Light: This is the most common sign. A scan will usually show code P0325, which points directly to a fault in the knock sensor circuit. 🎬 Watch: How to diagnose a P0325 code with EricTheCarGuy
- Reduced Power and Acceleration: Your Sebring may feel sluggish and slow to respond. The engine computer retards timing to protect the engine, which sacrifices power.
- Worse Fuel Economy: When ignition timing isn't optimal, the engine burns more fuel than necessary.
- Audible Engine Pinging: You might hear a metallic 'pinging' or 'knocking' sound, especially when accelerating or going uphill. This is the detonation that the sensor is supposed to prevent.
Known Issues for 2001-2010 Chrysler Sebring
While no specific safety recalls exist for the knock sensor on these models, searches on the National Highway Traffic Safety Administration (NHTSA) database show other issues for 2007-2008 models that can cause similar symptoms. A corroded electrical connector for the tire pressure monitoring system could cause a short, leading to engine stalling (Recall H07). Separately, some 2.4L models had an issue where coolant could short the radiator fan connector, creating a fire risk (Recall G39). It's important to properly diagnose the cause rather than assuming the knock sensor is the only possible problem.
Choosing the Right Aftermarket Knock Sensor
Replacing the knock sensor on most Sebring engines requires removing the intake manifold, which is a labor-intensive job. Because of the high labor cost, choosing a reliable, high-quality sensor is critical to avoid doing the job twice. Cheap, low-quality sensors are known to fail quickly or be out-of-spec right out of the box.
Brand Quality Tiers
- Top Tier (OEM-Equivalent): Brands like Delphi and NGK (NTK) are often the original equipment manufacturers for many car brands. Choosing one of these offers the highest probability of a correct fit and long-term reliability, making them the safest bet.
- Reliable Aftermarket: Brands such as Standard Ignition (SMP) and Beck Arnley have a solid reputation in the aftermarket. They provide a good balance of quality and cost for owners looking for a dependable part without the OEM price tag.
- Budget Options: While brands like Walker, Holstein, and others are available at a lower price, the risk of premature failure is higher. Given the difficulty of replacement, a budget sensor can easily turn into a more expensive repair if it fails and requires a second installation.
Cost to Replace a Chrysler Sebring Knock Sensor
The total cost depends heavily on whether you do the job yourself or hire a professional. The part itself is relatively inexpensive, but labor costs are high due to the sensor's location.
| Item | Estimated Cost |
|---|---|
| New Aftermarket Part | $21 - $116 |
| New OEM Part (Mopar) | $115 - $150 |
| Shop Labor | $250 - $400 |
| Total Professional Replacement | $365 - $550 |
Frequently Asked Questions
Where is the knock sensor located on the Chrysler Sebring?

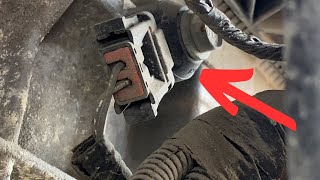

On both the 2.4L 4-cylinder and the 2.7L/3.5L V6 engines, the knock sensor is located on the engine block, underneath the intake manifold. 🎬 Watch: 2.4L engine knock sensor location and removal guide This location requires removing the manifold for access, which makes the replacement a multi-hour job.
🎬 See this step-by-step 2007-2010 Sebring knock sensor replacement walkthroughCan I drive my Sebring with a bad knock sensor?
You can, but it is not recommended. The engine computer will default to safe settings, causing poor acceleration and high fuel consumption. More importantly, if the engine is truly knocking, continued driving without a functional sensor can lead to severe and expensive internal engine damage.
Why is my check engine light still on after replacing the knock sensor?
There are a few common reasons. First, the new sensor might be faulty, which is more common with budget brands. Second, the bolt securing the sensor may have been torqued incorrectly. Finally, the problem could be in the wiring harness that connects to the sensor, not the sensor itself.
Is an OEM Mopar sensor better than aftermarket for this part?
For a part that is difficult and costly to access, using an OEM or a top-tier OEM-supplier brand like Delphi or NGK is a wise investment. It significantly reduces the risk of the part failing prematurely and forcing you to pay for the same labor all over again.
Helpful Videos
Technical Specifications
OEM Part Numbers: 04606482AD 04609083AD 4606093AC
Typically a 2-pin, blade-type connector. The sensor is a piezoelectric microphone calibrated to detect specific engine knock frequencies. Must be torqued to factory specifications.
