A Dodge Dakota Owner's Guide to the 2001-2010 Transfer Case Motor
If your 4x4 has stopped working or acts erratically, this guide is for you.
- A 'Service 4WD' light and failure to shift are the most common symptoms.
- A dangerous known issue is the motor shifting into 4LO on its own; if this happens, pull the fuse immediately to prevent damage.
- Aftermarket quality varies, with brands like Dorman and Cardone being common but having mixed reviews.
- Replacement can be a DIY job, but tight access may require removing the front driveshaft.
Is Your Dakota's 4WD Acting Up?
A faulty transfer case motor is a common issue on the 2001-2010 Dodge Dakota. This part is responsible for shifting your truck in and out of four-wheel drive. When it fails, it can leave you stuck in two-wheel drive during a snowstorm or, in some cases, cause dangerous shifting problems on the road. Understanding the symptoms and your replacement options can save you time and money.
🎬 Learn about other common problems with 3rd Gen Dakotas.Symptoms of a Failing Transfer Case Motor
Your truck will usually give you clear signs that the transfer case motor is in trouble. The most common symptom is the "Service 4WD" light appearing on your dashboard. You might also notice that when you try to shift into 4WD, the indicator light on the switch blinks for a while but then goes back to 2WD, with the shift never actually happening. 🎬 See how to fix a blinking 4WD indicator light. In other cases, you may get stuck in 4WD or, more rarely, 4LO. A particularly dangerous, though less common, failure can cause the motor to shift the transfer case into 4LO on its own, even at high speeds, which can severely damage the drivetrain.
A Critical Warning: The "Runaway" Motor
A known issue is the "runaway" transfer case motor, which can try to shift on its own without you touching the switch. If you notice your 4WD lights flashing randomly or hear the motor cycling while parked or driving, it's a serious problem. To prevent damage, you can temporarily disable the system by getting the truck into 2WD and then pulling the fuse for the transfer case (often fuse #42 in the panel) or unplugging the motor directly. This is a temporary fix to allow you to drive safely to a repair shop.
Choosing the Right Aftermarket Motor
For a vehicle of this age, an aftermarket transfer case motor is the most common and cost-effective choice. OEM parts can be expensive and hard to find. However, aftermarket quality can vary.
- Premium Aftermarket (e.g., Standard Ignition): These brands often aim for OEM-level quality and may offer a more reliable, longer-lasting part. They are a good choice if you rely on your 4WD system frequently and want peace of mind.
- Standard Aftermarket (e.g., Dorman, Cardone): Dorman and Cardone are widely available and budget-friendly. Reviews for these brands are mixed; many owners use them without issue, but some report premature failures or receiving a non-working part out of the box. They often come with a limited lifetime warranty, but be prepared for the possibility of needing to replace it again.
- Economy Brands (e.g., Replacement, Skyward): These are typically the most affordable options. They can be a good value for a quick fix, but their long-term durability may be less than that of more expensive brands.
Pro Tip: Seal Your New Motor
Many aftermarket transfer case motors fail due to moisture getting inside. Some mechanics recommend applying a thin bead of RTV silicone around the seams of the new motor's plastic housing before installation. This simple step can help prevent water intrusion and extend the life of the part.
Replacement Cost
The cost to replace the transfer case motor depends on the brand you choose and whether you do the work yourself.
| Item | Estimated Cost |
|---|---|
| New Aftermarket Motor | $128 - $402 |
| Shop Labor | $150 - $300 |
| Total Professional Installation | $278 - $702 |
Frequently Asked Questions
Is replacing the transfer case motor a DIY job?

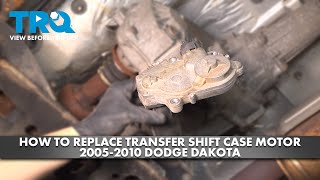

For a mechanically skilled person, yes. The job involves disconnecting a wiring harness and removing three bolts. However, 🎬 Watch this step-by-step guide to replacing the shift motor. access can be very tight, especially on 2005 and newer models. You may need to remove the front driveshaft or even slightly jack up the transmission to get enough clearance to remove the old motor.
My 4WD isn't working, but the motor is new. What else could it be?
The problem could be the 4WD selector switch in the dash, the Transfer Case Control Module (TCCM), or a wiring issue. Wires running to the motor can get corroded or rub against the driveshaft, causing a short. Always inspect the wiring harness and connector for damage when replacing the motor.
What is the "Service 4WD" light?
This light indicates that the truck's computer has detected a fault in the four-wheel-drive system. It could be the motor, the switch, the control module, or a wiring problem. A scan tool that can read manufacturer-specific codes (not just generic OBD-II codes) can help pinpoint the exact issue, such as code C1404, which points to the position sensor in the motor.
Can I get stuck in 4WD?
Yes. If the motor fails while the truck is in 4WD, it can get stuck there. Driving on dry, hard pavement like asphalt while stuck in 4WD can cause driveline binding and lead to serious damage. If this happens, the safest option is to have the vehicle towed or to remove the front driveshaft to drive it to a shop.
Helpful Videos
Technical Specifications
OEM Part Numbers: 52105646AA 52105646AB 52105646AC 52105646AD
Electronically controlled motor with an integrated position sensor. Mounts to the transfer case with three bolts and uses a single electrical connector.
