A Guide to the 2001-2010 Dodge Grand Caravan Engine Control Module (PCM)
Is your Grand Caravan stalling or having strange electrical problems? Its main computer could be the cause.
- A replacement PCM for your Grand Caravan MUST be programmed with your van's VIN to start the engine.
- Engine stalling and electrical issues can also be caused by bad ground wires or a faulty TIPM (fuse box), which should be checked first.
- The diagnostic code P0601 is a conclusive sign of a fatal internal PCM failure.
- Buying a pre-programmed aftermarket PCM is often the easiest and most reliable option for a DIY replacement.
Is Your Grand Caravan's PCM Failing?
A bad Powertrain Control Module (PCM) can make your van act up in many ways. The symptoms are often intermittent, meaning they come and go, which can make diagnosis tricky. It's important to know that other parts, like the fuse box (TIPM) or even a bad ground wire, can cause similar issues.
Common Failure Symptoms:
- Engine Stalling: The engine may suddenly shut off while you are driving, which can be very dangerous.
- No-Start or Hard Start: The engine cranks but won't start, or it takes many tries to get it running.
- Rough Performance: You might notice a rough idle, engine misfires, stuttering, or a general lack of power.
- Transmission Problems: The PCM also controls the transmission, so a failure can cause harsh shifting, delayed shifts, or getting stuck in one gear (known as 'limp mode').
- Warning Lights: The 'Check Engine' light is almost always on. Sometimes, all the gear selector lights (P-R-N-D) will light up at once, or the speedometer will act erratically.
- Diagnostic Code P0601: If a mechanic scans your van and finds the code P0601, it's a definite sign that the PCM has an internal failure and needs to be replaced.
Before You Replace the PCM

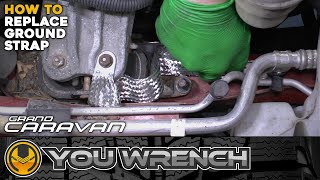

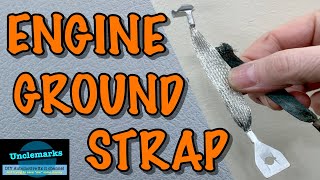

The 2001-2010 Grand Caravan is known for having bad engine and chassis ground wires. These poor connections can cause a loss of power to the PCM, mimicking a failure. Before spending money on a new computer, have a mechanic inspect all the main ground straps for corrosion or looseness. This simple check can save you hundreds of dollars.
Choosing the Right Aftermarket PCM
When replacing the PCM, you will find new and remanufactured options from brands like Cardone and Dorman. It is critical to be honest about quality here. Remanufactured electronics can be a gamble. Forum discussions among Dodge owners show that remanufactured PCMs, particularly from Cardone, have a reputation for being dead-on-arrival (DOA) or failing early. This can lead to frustration and needing to do the job more than once. However, they are a widely available and affordable option.
The most important factor for success is not just the brand, but the seller. Buying a PCM that is pre-programmed to your van's Vehicle Identification Number (VIN) is the best path for a DIY replacement. This avoids many of the headaches associated with programming.
The #1 Rule: Programming is NOT Optional
You cannot take a PCM from another van and simply plug it into yours. It will not work. The replacement PCM must be electronically programmed with your van's unique VIN. This process links the computer to your van's anti-theft system and keys. Without proper programming, the engine will not start.
Cost of Replacing a Grand Caravan PCM
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket (Pre-Programmed) | $204.27 - $758.63 |
| Remanufactured Aftermarket | $220 - $450 |
| Used (from a salvage yard) | $50 - $150 (Requires programming) |
| Shop Labor (Installation & Programming) | $150 - $300 |
Frequently Asked Questions (FAQ)
Do I really have to program the new PCM?
Yes, absolutely. For the 2001-2010 Dodge Grand Caravan, the PCM is tied to the Sentry Key Immobilizer Module (SKIM). If the VIN in the PCM does not match the VIN stored in the other modules, the anti-theft system will prevent the engine from starting. There is no way around this step.
Can I replace the PCM myself?

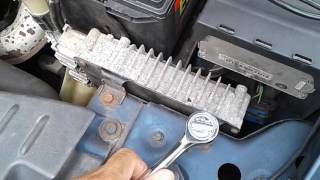

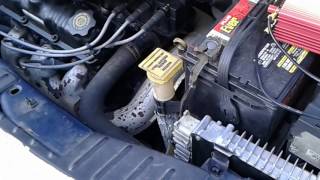

The physical replacement is straightforward for a DIYer. The PCM is located on the driver's side of the engine bay, near the wheel well. It involves disconnecting the battery, unplugging a few large connectors, and removing three bolts. The main challenge is the programming. If you buy a pre-programmed unit, it becomes a plug-and-play job. If not, you will need to have the vehicle towed to a shop for programming.
What's the difference between the PCM and the TIPM?
The PCM is the Powertrain Control Module that runs the engine and transmission. The TIPM is the Totally Integrated Power Module, which is the main fuse and relay box under the hood. A bad TIPM can also cause stalling and weird electrical issues, so it's important to diagnose the problem correctly before replacing an expensive part like the PCM.
Are there any recalls for the PCM on these vans?
There have not been any specific recalls for the PCM itself on the 2001-2010 Grand Caravan. However, there have been other recalls for issues that can cause similar symptoms, like stalling. It is always a good idea to check for any open recalls on your vehicle with a dealer or using your VIN on the NHTSA website.
Helpful Videos
Technical Specifications
Location: Engine bay, driver's side, near the wheel well. Control: Manages both engine and automatic transmission functions. Programming: Requires VIN-specific programming for anti-theft (SKIM) compatibility.
