Ford Explorer Sport Trac A/C Accumulator: A Replacement Guide for 2001-2010 Models
If your Sport Trac's A/C is blowing warm, the accumulator could be the culprit—here's what you need to know before you buy a new one.
- You MUST replace the accumulator and orifice tube any time the A/C system is opened for another repair.
- This job requires professional service due to the need for specialized refrigerant recovery and recharging equipment.
- A failing accumulator can cause catastrophic failure of the more expensive A/C compressor if it is ignored.
- Ensure you buy the correct part for your generation: 2001-2005 models use a different accumulator than 2007-2010 models.
Is Your Sport Trac's A/C Ready for Summer?
A working air conditioning system is essential for comfort in your 2001-2010 Ford Explorer Sport Trac. When it stops blowing cold, many people assume the worst, like a failed compressor. However, a much simpler and less expensive part, the A/C accumulator, is often the cause of the problem or a necessary part of the solution. This guide covers the symptoms of a bad accumulator and how to choose the right new aftermarket part for your truck.
Symptoms of a Failing A/C Accumulator
When the accumulator goes bad, it can't do its job of filtering refrigerant and removing moisture. This leads to several common symptoms:
- Poor Cooling: This is the most frequent sign. The air from your vents will be warmer than usual because a clogged accumulator restricts the flow of refrigerant.
- Rattling Noises: If you hear a rattling sound from the engine bay when the A/C is on, the desiccant bag or other internal parts of the accumulator may have broken apart.
- Visible Leaks: The accumulator can rust and leak over time. You might see an oily, greasy residue on the canister or the connected lines. Refrigerant itself is a gas at atmospheric pressure, but it circulates with oil that will be visible.
- A/C System Freezing Up: In some cases, a failing accumulator can cause other parts of the A/C system to freeze, preventing it from cooling at all.
A Critical Replacement Rule
The A/C accumulator is a one-time-use part. You must replace the accumulator and the orifice tube any time the A/C system is opened for a repair, such as replacing the compressor or a hose. The desiccant inside becomes saturated the moment it's exposed to air. Not replacing it will introduce moisture and debris into your new parts, causing them to fail quickly and likely voiding their warranty.
Choosing the Right Aftermarket Accumulator
For the 2001-2010 Explorer Sport Trac, you have several good options for a new aftermarket accumulator. It's important to note that the part is different between the first generation (2001-2005) and the second generation (2007-2010).
Brand Quality Tiers
- OEM (Motorcraft): This is the original Ford part. It guarantees perfect fit and performance, as it's built to Ford's engineering standards. While it's the most expensive option, it's the benchmark for quality.
- Premium Aftermarket (Four Seasons, Spectra): These brands are well-known in the A/C world. They offer a balance of quality and value. Forum discussions among Ford owners suggest that parts from brands like Four Seasons can sometimes be identical to the Motorcraft part, just in a different box. They are generally considered reliable choices.
- Standard Aftermarket (Global Parts/GPD, UAC): These brands provide a budget-friendly option and are widely available. While they can perform well, it's always important to double-check that the fitment and connections match your original part before installation.
Don't Forget the Orifice Tube!
When you buy a new accumulator, be sure to also buy a new A/C orifice tube. This is a small, inexpensive filter that is a critical part of the repair. A clogged orifice tube will prevent your A/C from working correctly, even with a new accumulator and compressor.
Estimated Replacement Costs
Replacing the A/C accumulator requires special tools to recover the old refrigerant and vacuum/recharge the system, so professional installation is highly recommended.
| Part or Service | Estimated Cost |
|---|---|
| New OEM (Motorcraft) Accumulator | $65 - $130 |
| New Aftermarket Accumulator | $39 - $89 |
| Shop Labor & A/C Service (Evacuate & Recharge) | $250 - $450 |
| Total Professional Replacement (Aftermarket Part) | $290 - $540 |
Frequently Asked Questions
Can I replace the A/C accumulator myself?
While physically unbolting the part is straightforward, the full job is not recommended for most DIY mechanics. Legally, the refrigerant in the system must be recovered with a special machine before you open the lines. Afterward, the system must be put under a deep vacuum to remove all air and moisture before being recharged with a precise amount of refrigerant and oil. Failure to do this correctly will result in poor performance and likely damage to other components.
Do I need to add oil when replacing the accumulator?
Yes. When the old accumulator is removed, some of the system's PAG oil will come out with it. You should measure this oil and add the same amount of new, correct-spec PAG oil to the new accumulator before installing it. A professional shop will handle this as part of the recharge service.
What is the difference between an accumulator and a receiver/drier?
They do the same job of filtering refrigerant and removing moisture, but they are used in different types of A/C systems. Your Explorer Sport Trac uses an accumulator, which is located on the low-pressure (cold) side of the system between the evaporator and the compressor. Receiver/driers are used on systems with an expansion valve and are on the high-pressure (hot) side.
Were there any recalls for the Sport Trac A/C accumulator?
No. A search of the National Highway Traffic Safety Administration (NHTSA) database did not find any recalls or common technical service bulletins (TSBs) related to the A/C accumulator for the 2001-2010 Ford Explorer Sport Trac.
Technical Specifications

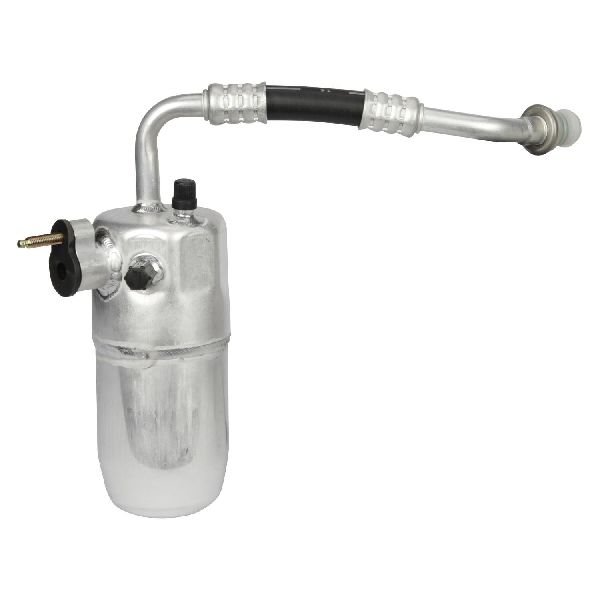

OEM Part Numbers: XL2Z-19C836-AC (2001-2005) 7L2Z-19C836-A (2007-2010)
System uses R-134a refrigerant. Accumulator is located on the low-pressure side of the A/C system. Part design differs between 1st Gen (2001-2005) and 2nd Gen (2007-2010) models.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
