Ford Explorer Sport Trac Brake Light Switch Guide (2001-2010)
Solve brake light, cruise control, and shifting problems in your Sport Trac.
- For 2001-2003 models, check if NHTSA recall 04S12 for the brake light switch has been performed.
- If the third brake light works but the main ones don't, suspect the multi-function switch before replacing the brake light switch.
- A bad switch can prevent you from shifting out of Park or cause cruise control problems.
- Verify the part design; the switch for 2001-2005 models is different from the one for 2007-2010 models.
Is Your Brake Light Switch Failing?
A faulty brake light switch on the Ford Explorer Sport Trac can cause several distinct and frustrating problems. Because this part is linked to multiple systems, a failure can be misdiagnosed. Watch for these specific signs in your truck.
Common Symptoms of a Bad Switch:
- No Brake Lights: The most obvious and dangerous symptom is when your brake lights do not turn on at all when you press the pedal.
- Brake Lights Stuck On: The switch can fail in the 'on' position, leaving your brake lights illuminated even when the truck is off. This will drain your battery.
- Can't Shift Out of Park: Your Sport Trac is designed to lock the gear shifter in Park until the brake pedal is pressed. If the switch is bad, it won't send the signal to release the shifter. 🎬 Watch this video if your Sport Trac is stuck in Park.
- Cruise Control Issues: The cruise control may not engage, or it might turn off unexpectedly while driving.
Pro Tip: The "Third Brake Light" Test
On many Sport Tracs, if the main left and right brake lights don't work but the third brake light (the one at the top of the cab) does work, the problem may not be the brake light switch itself. The signal for the main lights often runs through the multi-function (turn signal) switch after leaving the brake light switch. Intermittent issues with the main brake lights often point to a failing multi-function switch instead.
Known Issues for the 2001-2010 Sport Trac
Recall Notice: NHTSA Safety Recall 04S12
Ford issued a recall for the stop lamp switch on many 2000-2003 model year vehicles, which includes the 2001-2003 Explorer Sport Trac. The original switches were prone to failure, causing brake lights to either stay on or not work at all. The fix involved replacing the switch and a section of the wiring harness. If you own a first-generation Sport Trac, it is crucial to check with a dealer or on the NHTSA website to see if this recall was performed on your vehicle.
Choosing the Right Aftermarket Brake Light Switch
For a part like the brake light switch, a quality aftermarket unit is a reliable and cost-effective choice. The key is to buy the correct part for your truck's generation, as the design changed.

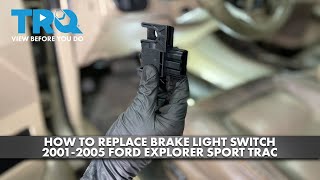

- First Generation (2001-2005): These models typically use a switch that is held onto the brake pedal pushrod with a retaining clip. 🎬 See this walkthrough for replacing a first generation brake switch.
- Second Generation (2007-2010): These models often use a different, "twist-in" style switch that rotates and locks into a bracket.
Always verify the part's fitment for your specific year before purchasing.
Brand Quality Tiers
- OEM (Motorcraft): Motorcraft is Ford's official parts brand. This is the benchmark for quality and fit, and it's what the factory installed. It is the most expensive option.
- Premium Aftermarket (Standard Ignition, Dorman): Brands like Standard (SMP) and Dorman are well-known in the industry and produce reliable replacement parts that meet or exceed OEM specifications. They offer a great balance of quality and value.
- Economy Brands (Replacement, True Tech, etc.): These brands offer a budget-friendly solution. While often perfectly functional for a simple switch, they may not have the same long-term durability or precise finish as premium brands.
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket | $20.79 - $57.41 |
| New OEM (Motorcraft) | $50 - $85 |
| Shop Labor | $55 - $80 |
| Total at a Shop | $98 - $133 |
Frequently Asked Questions
Can I drive my Sport Trac with a bad brake light switch?
No. If your brake lights are not working, it is extremely unsafe to drive. You risk being rear-ended, and you can be ticketed by law enforcement. If the lights are stuck on, you risk draining your battery and being stranded.
Is replacing the brake light switch a DIY job?

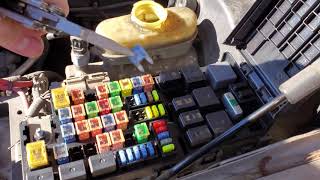

Yes, this is a very DIY-friendly repair for most owners. The switch is located under the driver's side dashboard above the brake pedal. It typically requires only basic hand tools like pliers and can be completed in under 30 minutes. 🎬 Follow this DIY guide to replace your switch and check fuses. You will be working in a tight space, which is the main difficulty.
Why does my third brake light work but not the others?
This is a common issue on these trucks. The power for the main brake lights goes through the multi-function switch (turn signal stalk) after the brake light switch, while the third brake light often has a more direct wire. If the third light works, your brake light switch is likely good, and the problem is probably in the multi-function switch.
How do I check if the brake light switch recall was done on my truck?
You can use your Vehicle Identification Number (VIN) to check for open recalls on the official NHTSA website (nhtsa.gov/recalls) or by calling a Ford dealership's service department. This is highly recommended for 2001-2003 models.
Helpful Videos
Technical Specifications
Located on the brake pedal support bracket under the driver's side dashboard. Connects to the brake pedal pushrod or bracket and has one electrical connector.
