Ford Explorer Sport Trac Engine Coolant Temperature Sensor: A Complete Guide (2001-2010)
Is a faulty coolant sensor causing your Sport Trac to run rough? Here’s what you need to know before you buy a replacement.
- The plastic thermostat housing is a major weak point; plan to inspect or replace it with an aluminum one during the job.
- Your Sport Trac has two sensors: one for the engine computer (ECT sensor) and one for the dash gauge (sender). Identify the correct part for your issue.
- For sensor reliability, OEM Motorcraft parts are strongly recommended by other owners over cheaper aftermarket alternatives.
- Due to the difficult access, it is wise to replace the thermostat, housing, sensor, and sender all at once to save on future labor.
Is Your Sport Trac's Coolant Sensor Failing?
A bad Engine Coolant Temperature (ECT) sensor can cause more than just a faulty temperature gauge. Because the engine's computer relies on this sensor for critical data, a failure can lead to noticeable performance problems. If your Sport Trac is acting up, a failing ECT sensor might be the culprit.
Key Failure Symptoms:
- Check Engine Light: The most common sign. You may see codes like P0117, P0118, P0125, or P0128.
- Poor Fuel Economy: If the sensor incorrectly tells the computer the engine is cold, the system will run a rich fuel mixture, wasting gas.
- Rough Idle or Misfires: An incorrect fuel mixture can cause the engine to run poorly, especially when idling.
- Engine Overheating or Running Too Cool: A bad sensor can prevent the cooling fans from turning on when needed, causing overheating. Conversely, a code like P0128 often indicates the engine isn't getting warm enough, which can also be a sensor or thermostat issue.
- Black Smoke from Exhaust: This is a sign of an overly rich fuel mixture, where unburned fuel is burning in the exhaust.
- Inaccurate Temperature Gauge: If the gauge on your dash is behaving erratically or not working at all, the issue is likely the separate temperature *sender*, not the main ECT sensor.
Known Issue: The Plastic Thermostat Housing
The single most common failure point related to the ECT sensor on the 4.0L SOHC engine is not the sensor itself, but the factory-installed plastic thermostat housing it sits in. Over time, this plastic housing becomes brittle, cracks, and develops coolant leaks. These leaks can puddle on top of the engine and cause a sweet coolant smell. Since replacing the ECT sensor requires accessing this housing, it is strongly recommended to inspect it for cracks or leaks. Many owners and mechanics advise replacing the entire plastic housing with a more durable aluminum aftermarket version at the same time you replace a sensor or thermostat. Be aware that some aftermarket aluminum housings have had reported issues with improperly sized sensor ports, leading to leaks from the sensor's O-ring.
Choosing the Right Aftermarket Sensor
When it comes to engine sensors, quality and accuracy are critical. While saving money is tempting, a cheap, unreliable sensor can cause performance issues and lead to you replacing it again sooner than you'd like.
Brand Quality Tiers for Your Sport Trac:
- Tier 1: OEM (Motorcraft): For critical sensors like the ECT, the strong consensus among Ford owners and mechanics is to use the original Motorcraft part. It costs more, but it provides the best guarantee of compatibility and longevity. Forum discussions are filled with stories of owners who had problems with aftermarket sensors and solved them by switching to Motorcraft.
- Tier 2: Premium Aftermarket (NGK, Delphi, Standard Ignition): If you opt for an aftermarket part, stick with well-known, reputable brands. NGK (also sold as NTK), Delphi, and Standard Ignition (SMP) have a better reputation for quality control than lesser-known brands. These brands sometimes supply the OEM parts, but it's not guaranteed.
- Tier 3: Economy Aftermarket (Store Brands, etc.): While brands like Four Seasons or Walker Products are available, using budget-friendly sensors is a gamble. They may work fine initially, but they have a higher reported failure rate. For a part that is difficult to access on the Sport Trac, it's worth spending more to avoid doing the job twice.
Pro Tip: Before you order, confirm if you need the two-wire ECT sensor for the computer (which causes performance issues) or the one-wire temperature sender for the dashboard gauge. They are different parts. On the 4.0L SOHC, both are located in the thermostat housing.
| Part Type | Price Range |
|---|---|
| OEM (Motorcraft) | $30 - $55 |
| Premium Aftermarket | $20 - $45 |
| Standard Aftermarket | $11 - $25 |
Frequently Asked Questions
Is it hard to replace the ECT sensor on a Sport Trac?
Yes, it can be a difficult job. The sensor is located on the thermostat housing, which is tucked under the intake manifold at the front of the engine. Access is very tight. Some mechanics remove the alternator to get more room, while others say the intake manifold must be loosened or removed. It is not a simple, quick replacement for a beginner. 🎬 See this walkthrough for replacing the thermostat on older engines The job involves draining some coolant as well.
My temp gauge is dead, but the truck runs fine. Is it the ECT sensor?
No, it is most likely the coolant temperature *sender*. The 4.0L SOHC engine uses a separate part to run the dashboard gauge. If your only symptom is a faulty gauge, you need to replace the sender, not the main ECT sensor that the computer reads.
Should I replace the thermostat at the same time? 🎬 Watch: How to replace the thermostat on 2002-2010 models
Absolutely. You have to do most of the same work to get to the thermostat. Given the known issues with the plastic thermostat housing, it is highly recommended to replace the housing (preferably with an aluminum one), the thermostat, and both the sensor and sender at the same time to prevent future leaks and save on labor.
Are there any recalls for the coolant sensor on the 2001-2010 Sport Trac?
No. Despite many owner complaints filed with the NHTSA related to engine cooling, there have been no official recalls issued for the ECT sensor or the failure-prone plastic thermostat housing for this vehicle.
Helpful Videos
Technical Specifications

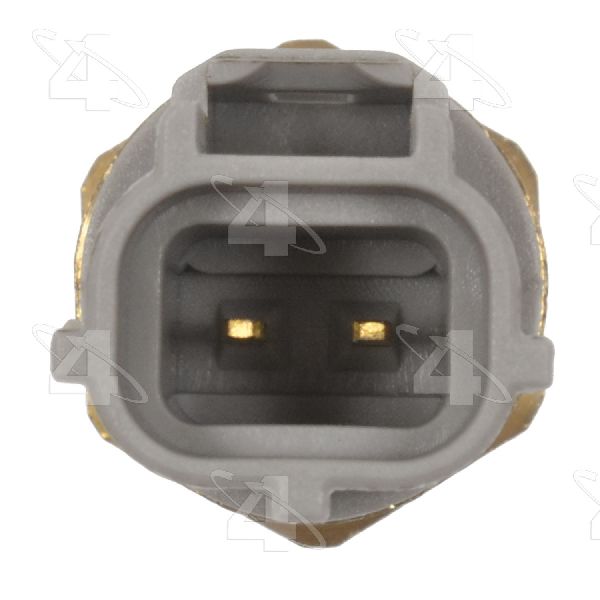

OEM Part Numbers: SW-5174 (Sender for Gauge) DY-1144 (1L2Z12A648BA) (Sensor for PCM)
Fits 4.0L SOHC V6 engine. Located in the thermostat housing. Note that two different components exist: a 2-wire sensor for the PCM and a 1-wire sender for the temperature gauge.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
