Kia Magentis Engine Timing Belt Guide (2001-2010)
Everything you need to know before replacing the timing belt on your Magentis V6 or 4-cylinder.
- Verify if your Magentis has a timing belt; 2006-2010 4-cylinder models have a timing chain.
- This is an interference engine; a broken timing belt will cause severe engine damage.
- Always replace the timing belt, tensioner, and idlers as a complete kit; include the water pump on V6 models.
- Stick to high-quality aftermarket brands like Gates, Continental, or Mitsuboshi for reliability.
Which Kia Magentis Engines Have a Timing Belt?
It is critical to know which engine your Magentis has. Not all models in this year range use a timing belt.
- 2.4L 4-Cylinder (2001-2005): This engine HAS a timing belt. It is an interference engine.
- 2.5L V6 (2001): This engine HAS a timing belt. It is an interference engine.
- 2.7L V6 (2002-2010): This engine HAS a timing belt. It is an interference engine.
- 2.4L 4-Cylinder (2006-2010): This engine has a timing CHAIN, not a belt. Timing chains have a much longer service life and are not part of regular maintenance like a belt.
This guide is for owners of the V6 models and the first-generation (2001-2005) 4-cylinder model.
Choosing the Right Aftermarket Timing Belt
When replacing a timing belt, it's highly recommended to replace all related components at the same time. A failed tensioner or idler pulley can destroy a new belt and your engine. The best value and safest option is a complete timing belt kit.
Pro Tip: Always Buy a Kit
A complete timing belt kit should include the belt, tensioner, and idler pulleys. For the V6 engine, it's also wise to choose a kit that includes the water pump, as it is driven by the timing belt and requires the same labor to access. Replacing it now saves you from having to pay for the same expensive labor twice 🎬 Watch: Step-by-step V6 timing belt and water pump replacement guide. if the pump fails later.
Aftermarket Brand Quality Tiers
Not all aftermarket brands are created equal, but many meet or exceed OEM specifications. For a critical part like a timing belt, it's best to stick with reputable manufacturers.
- Top Tier (OEM Quality): Brands like Gates, Continental, and Mitsuboshi are often original equipment suppliers to automakers, including Kia. These brands are trusted by professional mechanics for their durability and precise fit. Mitsuboshi is a well-regarded Japanese brand often used as the OEM part on many Asian vehicles.
- Reputable Aftermarket: Dayco and Cloyes are also well-known brands that produce reliable timing components. Dayco belts sometimes have a unique kevlar weave and tooth design, but can be stiffer and harder to install than other brands.
- Value-Oriented: Bando is a known brand, though more commonly associated with serpentine belts. When choosing any brand, ensure it's a complete kit from a trusted source to avoid counterfeit parts.
Known Issues, Recalls, and Service Bulletins
Searches of the National Highway Traffic Safety Administration (NHTSA) database did not show any specific recalls for the timing belt, tensioner, or related components on the 2001-2010 Kia Magentis. Most failures are due to the belt exceeding its service life. While there have been major engine-related recalls for other Kia models and years, they do not specifically pertain to the timing belt system on these Magentis engines. Some Technical Service Bulletins (TSBs) exist for engine issues like coolant leaks on certain models, which could be relevant if you are replacing the water pump at the same time.
| Component | Estimated Cost |
|---|---|
| Aftermarket Timing Belt Kit (Belt, Pulleys, Tensioner) | $100 - $250 |
| Aftermarket Timing Belt Kit with Water Pump | $150 - $350 |
| Shop Labor | $500 - $800 |
| Total Estimated Cost | $650 - $1,150 |
Note: Costs are estimates and can vary based on your location, the specific parts chosen, and the shop's labor rate. Labor for the 4-cylinder model may be slightly less.
Frequently Asked Questions (FAQ)
When should I replace my Magentis timing belt?
The generally accepted replacement interval for these Kia engines is every 60,000 miles or every 5-7 years, whichever comes first. Rubber degrades over time, so even on a low-mileage car, age is a critical factor. Do not delay this service.
Can I just replace the belt and not the other parts?
It is strongly advised not to. The bearings in the tensioner and idler pulleys wear out. A seized pulley can snap the new belt or cause it to slip, leading to catastrophic engine failure. Since the labor cost is the largest part of the job, replacing all the components at once is the most cost-effective and reliable repair.
Is an aftermarket belt as good as the OEM Kia belt?
Yes, high-quality aftermarket brands like Gates, Continental, and Mitsuboshi are often the same manufacturers that make the belts for Kia. They offer equivalent or even superior performance and are a reliable choice for this repair.
What's the difference between a timing belt and a serpentine belt?
The timing belt is located inside the engine under a protective cover and synchronizes the engine's internal components. The serpentine belt (or drive belt) is visible on the outside of the engine and powers accessories like the alternator, power steering pump, and air conditioner. They are separate parts with different functions and replacement schedules.

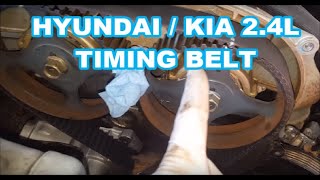

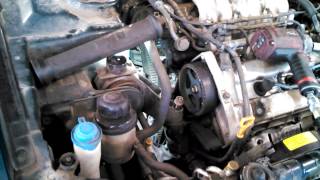

Helpful Videos
Technical Specifications
OEM Part Numbers: 24312-37500 24410-37100 24810-37100
Belt tooth count varies by engine. The 2.7L V6 belt has 207 teeth. Always verify the part with your vehicle's specific engine (2.4L I4, 2.5L V6, or 2.7L V6) before purchasing.
