A Guide to Replacing Drum Brake Shoes on Your 2001-2010 Mazda B2300
Restore your truck's stopping power and fix that spongy pedal by choosing the right rear brake shoes.
- Always replace the brake hardware kit with the shoes to fix common self-adjuster problems.
- Inspect the wheel cylinders for leaks and the drums for wear; replace them if necessary.
- The primary shoe (shorter lining) faces forward, and the secondary shoe (longer lining) faces the rear.
- If you own a 2010 manual transmission model, be aware of the parking brake recall (NHTSA 10V-202).
Is It Time for New Brake Shoes?
The rear brakes on your B2300 do about 30-35% of the braking work, so the shoes wear out much slower than the front pads. However, they will eventually need replacement. 🎬 Watch: Step-by-step walkthrough for replacing your rear brake shoes. Ignoring the signs can lead to reduced braking performance or even failure. Pay attention to these common symptoms.
Key Vehicle-Specific Issue: Failing Self-Adjusters
A very common problem on the Mazda B2300 and its twin, the Ford Ranger, is the failure of the drum brake self-adjusting mechanism. This small assembly is supposed to automatically keep the shoes close to the drum as they wear down. Unfortunately, it often seizes due to rust and brake dust. A failed adjuster leads to a low or spongy brake pedal, a parking brake handle that pulls up too high with little effect, and the feeling that the brakes aren't grabbing as they should. Many owners find they need to manually adjust the brakes periodically. When replacing your shoes, it is critical to also replace the hardware kit, which includes new self-adjuster components.

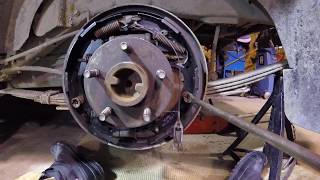

🎬 See how to properly replace the drum brake self-adjuster.Choosing the Right Aftermarket Brake Shoes
Since your truck is out of its warranty period, aftermarket brake shoes offer excellent value and quality. The original equipment (OEM) shoes were made by Motorcraft (Ford's part division), and many aftermarket brands meet or exceed that original quality. Here’s a breakdown of available brands to help you choose.
Tier 1: OEM Quality or Better
These brands are known for their quality, durability, and performance that is equivalent to or better than the original parts. They are a top choice for a reliable, quiet, and long-lasting repair.
- Wagner Brakes: A highly respected name in the industry, Wagner is often recommended in owner forums for its reliability and quality that rivals OEM parts.
- Bendix: With a long history, Bendix is another premium brand that provides excellent performance, good longevity, and minimal noise.

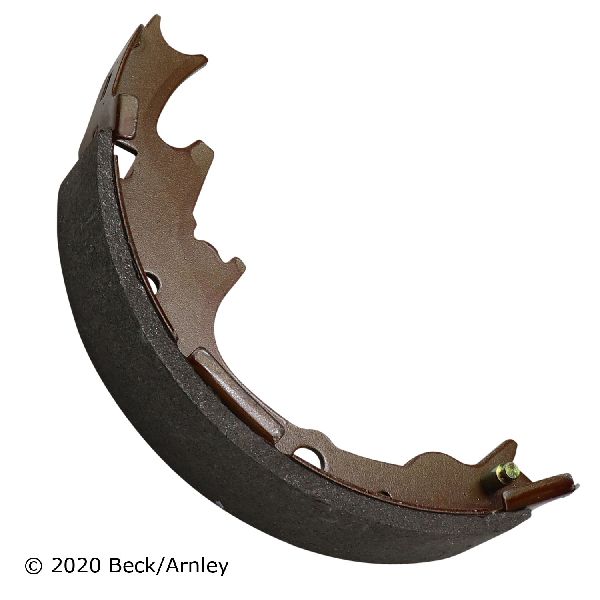

- Beck Arnley: This brand specializes in sourcing parts that match the original equipment form, fit, and function, making them a dependable choice.
Tier 2: Solid Daily-Driver Options
These brands offer a great balance of price and quality. They are perfect for daily driving and are popular choices for DIY repairs.

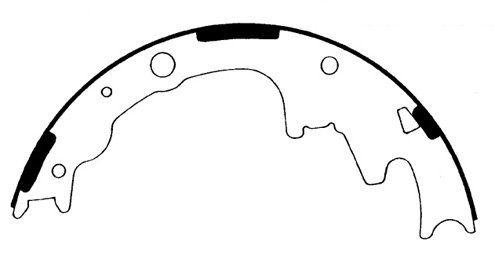

- Centric: Centric is a very popular aftermarket brand, frequently praised for delivering good, consistent quality at a reasonable price.
- Dynamic Friction: This brand provides quality daily-driver replacement parts that are a good alternative to more expensive brands.
Tier 3: Performance & Economy
This tier includes brands focused on specific needs, from budget-conscious repairs to performance upgrades.

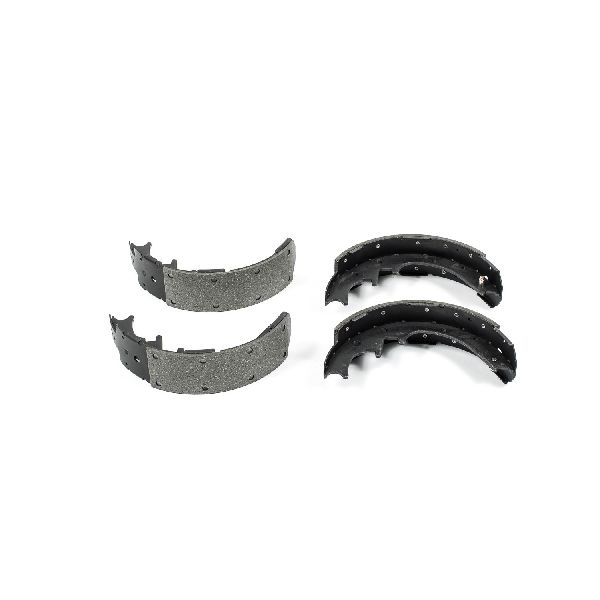

- Powerstop: Often sold as part of a kit, Powerstop can offer increased stopping power, which is great for towing. However, some users report more noise and faster wear compared to OEM-style shoes.
- Total Stopping Solutions: These are an economical choice for getting your truck back on the road safely without a heavy investment.
| Part Type | Estimated Price Range | Notes |
|---|---|---|
| New Aftermarket | $39.40 - $83.14 | Price varies by brand and material. A hardware kit is highly recommended. |
| Shop Labor | $150 - $250 | Includes installation for both rear wheels. Machining drums may add cost. |
Frequently Asked Questions (FAQ)
Do I need to replace anything else with my brake shoes?
Yes. It is critical to replace the brake hardware kit when you replace the shoes. This kit includes new springs, clips, and the self-adjuster assembly. The old springs lose tension over time, and the self-adjuster is a known failure point. You should also inspect the brake drums for deep grooves or a large lip on the edge and check the wheel cylinders for any signs of brake fluid leakage. If a wheel cylinder is leaking, it must be replaced.
Was there a recall on the B2300 drum brakes?
Yes, for some 2010 models. Ford issued recall 10S12 (NHTSA ID: 10V202) for certain 2010 Ford Rangers (and by extension, Mazda B-Series) with manual transmissions. The parking brake cable could detach from the right rear brake in cold weather. The fix involved installing a revised brake actuator. While this recall only applies to a specific set of trucks, it highlights the importance of ensuring the parking brake mechanism is functioning correctly during any brake job.
What is the difference between the primary and secondary shoe?
When you open your new brake shoe set, you will notice one shoe has a slightly shorter block of friction material than the other. The shoe with the shorter lining is the primary (leading) shoe and faces the front of the truck. The shoe with the longer lining is the secondary (trailing) shoe and faces the rear. Installing them in the wrong positions can affect braking performance.
My new drum won't fit over the new shoes. What's wrong?
This is a common issue during a drum brake job. First, make sure the star wheel on the self-adjuster is turned all the way in, making the assembly as small as possible. Second, check that the parking brake lever is not partially engaged or stuck, which would spread the shoes apart. Finally, ensure the new shoes are sitting perfectly flat against the contact points on the backing plate and are properly seated against the anchor pin at the top.
🎬 Watch this DIY guide to see the full installation process.Helpful Videos
Technical Specifications
OEM Part Numbers: 1L5Z2200AA 6L5Z2200A F87Z2200AA
Fits rear axle. Most 2001-2010 Mazda B2300 models use a 9-inch drum, but it is always best to verify your specific vehicle's configuration.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
