Engine Valve Cover Gasket Set Replacement for 2001-2010 Mazda B4000 4.0L V6
Stop oil leaks and burning smells by choosing the right valve cover gasket set for your truck.
- A burning oil smell is a primary indicator of a failing valve cover gasket on the 4.0L V6 engine.
- The replacement is a labor-intensive job, so consider replacing other nearby service items like intake gaskets at the same time.
- Premium aftermarket brands like Fel-Pro and Victor Reinz are highly recommended for a durable, long-lasting seal.
- There are no specific recalls or TSBs for this issue; it is a common wear-and-tear repair item.
Is Your Mazda B4000 Leaking Oil? It Could Be the Valve Cover Gaskets
If you own a 2001-2010 Mazda B4000 with the 4.0L SOHC V6 engine, you might eventually notice an oil leak or a burning oil smell. A common cause for this is a failed engine valve cover gasket. These gaskets are made of molded rubber and can become hard, brittle, and cracked over time due to engine heat and age. When this happens, the seal fails, and oil seeps out onto the engine and exhaust manifolds.
Symptoms of a Failing Valve Cover Gasket
- Visible Oil Leaks: The most obvious sign is seeing oil on the top or sides of your engine. The leak often starts around the edges of the valve covers.
- Burning Oil Smell: Oil dripping from the valve covers onto the hot exhaust manifolds will burn off, creating a distinct and unpleasant smell that you may notice inside and outside the truck.
- Low Engine Oil: A significant leak can lead to a noticeable drop in your engine's oil level between changes.
- Dirty Valve Covers: The area around the valve covers will be coated in a layer of oily dirt and grime as leaking oil attracts road dust.
Potential Fire Hazard
A severe oil leak from the valve cover gasket can drip onto the hot exhaust system and potentially ignite, creating a fire risk. It is important to address significant leaks promptly.
Choosing the Right Aftermarket Gasket Set
The Mazda B4000 shares its 4.0L SOHC V6 engine with the Ford Ranger, so parts are widely available. When choosing an aftermarket set, quality is key to a lasting repair. The job is labor-intensive, so you don't want to do it twice.
Aftermarket Brand Tiers
- Premium Aftermarket (Fel-Pro, Victor Reinz): These brands are well-regarded by both DIYers and professional mechanics. Fel-Pro is known for its PermaDry molded rubber gaskets designed for imperfect sealing surfaces. Victor Reinz is another top-tier brand, with some users noting their gaskets feel pliable and thick. You can be confident using sets from either of these brands.
- Standard Aftermarket (Beck Arnley): Beck Arnley often sources parts from various manufacturers, sometimes even the original OEM supplier. Their quality is generally considered good and reliable for this application.
Pro Tip: Since replacing the valve cover gaskets requires removing the upper intake manifold, it's a good time to replace the intake gaskets as well. Some forum users recommend using an OEM Ford intake gasket, as they may use rubber end seals instead of cork.
Replacement Cost
The cost to replace the valve cover gasket set on a 2001-2010 Mazda B4000 can vary. The parts themselves are not expensive, but the labor involved is significant.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Gasket Set | $22 - $45 |
| Shop Labor | $350 - $600 |
| Total Professional Replacement | $372 - $645 |
Frequently Asked Questions (FAQ)
Is this a difficult job to do myself?
Yes, this is considered a moderately difficult job for a DIY mechanic, with one guide rating it a 7 out of 10. It requires removing the upper intake manifold, alternator, and A/C compressor (unbolted and moved aside), along with various hoses and electrical connectors. If you are not comfortable with extensive engine work, it may be best left to a professional.
Do I need any special tools?
You will need a standard set of metric sockets (7mm, 8mm, 10mm, 13mm), extensions, a torque wrench, and possibly a small pry bar. No highly specialized tools are typically required for just the valve cover gasket replacement.
Should I use RTV sealant with the new gaskets?
A small dab of RTV sealant is often recommended at the corners and joints where the timing cover meets the cylinder head to prevent leaks in these critical areas. However, you should not coat the entire gasket with sealant. Follow the instructions included with your gasket set.
Are there any recalls for this part?
No, there are no recalls or specific Technical Service Bulletins (TSBs) from Mazda or the NHTSA for failing valve cover gaskets on the 2001-2010 Mazda B4000. Recalls for this vehicle primarily concern Takata airbags.
Technical Specifications

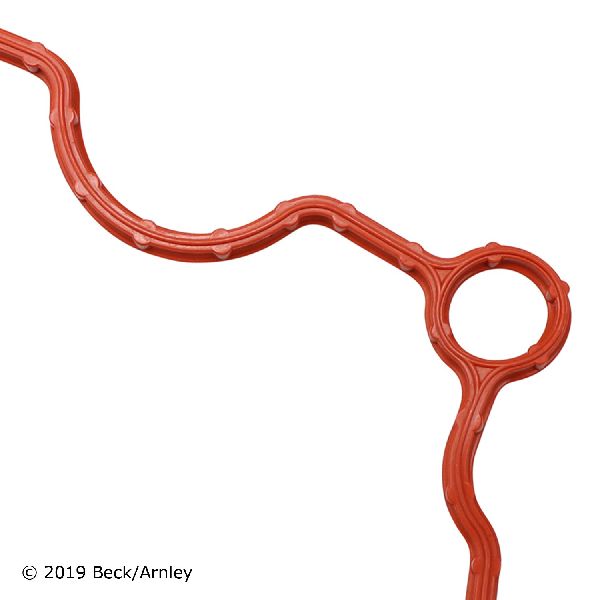

The 2001-2010 Mazda B4000 uses the 4.0L SOHC V6 engine (VIN 'E'). The valve cover gasket set includes two molded rubber gaskets and twelve bolt grommets.
We Have This Part in Stock
