2001-2010 Mazda B4000 Throttle Position Sensor: A Complete Guide
Fix stalling, rough idle, and poor acceleration in your Mazda B4000 by understanding and replacing your Throttle Position Sensor.
- Symptoms like stalling, hesitation, and rough idle strongly point to a failing TPS.
- Replacement is very easy, requiring only basic tools and about 30 minutes.
- For best results, choose the OEM Motorcraft part or a high-quality aftermarket brand like Standard Ignition or NGK.
- Before replacing the part, check the wiring connector for corrosion, as a bad connection can mimic sensor failure.
Is Your Mazda B4000 Stalling or Hesitating? It Could Be the TPS.
If your 2001-2010 Mazda B4000 is experiencing sudden engine problems like stalling at stops, hesitating when you press the gas, or shifting gears erratically, a failing Throttle Position Sensor (TPS) is a likely culprit. Because the Mazda B4000 is a rebadged Ford Ranger, information and parts for the 4.0L V6 Ford Ranger apply directly to your truck. This sensor is a common failure point, but the good news is that it's inexpensive and easy to replace.
Symptoms of a Bad Throttle Position Sensor
A failing TPS sends incorrect information to your truck's computer, leading to a variety of noticeable problems. You might experience one or more of the following:
🎬 Watch: A visual guide to common bad TPS symptoms.- Rough or High Idle: The engine may idle erratically or much higher than normal.
- Stalling: The engine may die when you come to a stop or take your foot off the gas.
- Hesitation or Lack of Power: When you accelerate, the truck may stumble or feel sluggish.
- Jerky Acceleration: The truck may lurch or jerk as you speed up.
- Poor Fuel Economy: Incorrect sensor readings can cause the engine to use more fuel than necessary.
- Automatic Transmission Problems: You might notice harsh shifting or the transmission failing to shift properly.
- Check Engine Light: A bad TPS will often trigger the check engine light with codes like P0121, P0122, or P0123. 🎬 See how to diagnose and fix the P0122 trouble code.
Known Issue: Wiring Harness Connection
Ford issued a Technical Service Bulletin (TSB 00-3-5) for 1998-2000 Ford Rangers with high idle problems caused by a poor electrical connection at the TPS wiring harness. While this TSB predates the 2001 model year, the underlying design is similar. Before replacing the sensor, inspect the wiring and connector for any corrosion or damage, as simply cleaning or repairing the connection might solve your problem.
Choosing the Right Aftermarket TPS: Brand Quality Matters
When it comes to engine sensors, not all aftermarket brands are created equal. For your Mazda B4000, using a quality part is key to avoiding future headaches.
- Top Tier (OEM Equivalent): The original part for your truck is made by Motorcraft. Many experienced owners and mechanics recommend sticking with Motorcraft for critical sensors to ensure perfect fit and performance. Brands like NGK/NTK and Standard Ignition (SMP) are also well-regarded aftermarket manufacturers that aim to meet or exceed OE specifications.
- Mid-Grade (Reliable Alternatives): Brands like Walker Products offer a balance of quality and value. They are a long-standing company and a reliable choice if an OEM part isn't in the budget.
- Economy (Budget-Friendly): Brands listed simply as Replacement or other store-brands offer the lowest price. While functional, they may not have the same durability or precise calibration as higher-tier options, potentially leading to issues sooner down the road.
Pro Tip: Check the Picture!
Some TPS listings show the sensor with its mounting bracket, while others are for the sensor only. Double-check the product photos and description to ensure you are ordering the exact part you need and to see if it includes new mounting screws.
Cost of Replacing a 2001-2010 Mazda B4000 TPS
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Part | $26.67 - $53.61 |
| New OEM (Motorcraft) | $28.00 - $57.00 |
| Shop Labor | $50 - $150 |
| Total DIY Cost | $27 - $57 |
| Total Professional Replacement | $77 - $207 |
Frequently Asked Questions (FAQ)
Can I replace the throttle position sensor myself?
Yes, this is a great DIY job for beginners. The TPS is located on the side of the throttle body, held on by two screws. The process involves disconnecting the electrical plug, unscrewing the old sensor, and installing the new one. The entire job typically takes less than 30 minutes with basic hand tools.
🎬 Follow this step-by-step walkthrough to replace your sensor.Does the new TPS need to be calibrated?
For the 2001-2010 Mazda B4000, the TPS is generally considered non-adjustable. It does not require manual calibration. The engine computer has a self-learning function that will adapt to the new sensor's baseline voltage after it's installed and the engine has run for a short time.
What happens if I don't replace a bad TPS?
Driving with a faulty TPS can be frustrating and potentially unsafe. You will likely experience persistent stalling, poor acceleration, and bad fuel mileage. While it may not leave you stranded immediately, the unpredictable engine behavior makes it a repair you should not put off.
Is a cheap aftermarket TPS good enough?
While a budget sensor might fix the problem initially, forum discussions among Ranger and B-Series owners often highlight issues with the longevity and accuracy of cheaper electronic parts. Given that high-quality aftermarket and even OEM Motorcraft sensors are not significantly more expensive, it is highly recommended to invest in a better brand like Motorcraft, Standard Ignition, or NGK for long-term reliability.
Helpful Videos
Technical Specifications
OEM Part Numbers: 1F22-18-851 1F2218851A AJ03-18-911 F5RZ-9B989 F5RF-9B89-BA

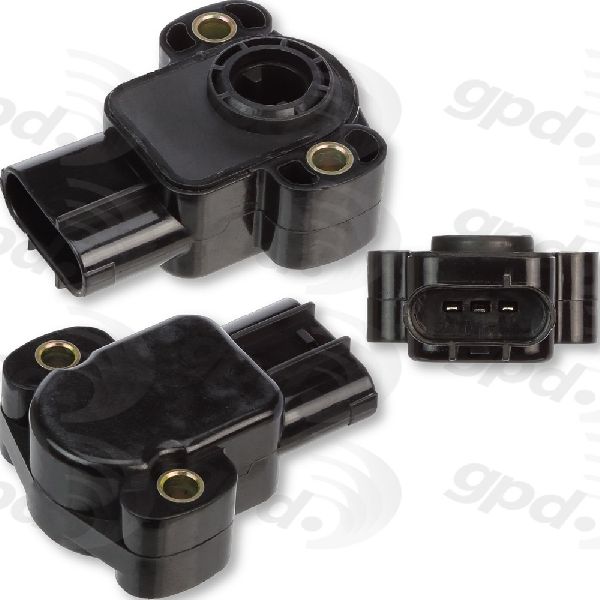

The TPS for the 2001-2010 Mazda B4000 is a three-terminal rotary potentiometer. It operates on a 5-volt reference signal from the ECU and provides a variable voltage output between approximately 0.5-1.0V at closed throttle and up to 4.8V at wide-open throttle. It is non-adjustable.
