Toyota Prius Engine Oil Pressure Switch Guide (2001-2010)
Understanding the oil pressure switch in your Gen 1 or Gen 2 Prius and how to choose a replacement.
- The most common symptom is the oil light coming on when the oil level is actually full.
- Always check your oil level first before assuming the switch is bad; driving with low oil pressure will destroy the engine.
- Replacement is a simple DIY job, requiring access behind the passenger-side front wheel and a 24mm deep socket.
- Choosing a reputable aftermarket brand like Standard Ignition or Beck Arnley is a reliable, cost-effective repair strategy.
Symptoms of a Failing Oil Pressure Switch
The most common sign of a problem is the red oil pressure warning light on your dashboard. If you know your oil level is correct, the light turning on or flickering could point to a bad switch.
- Oil Light On, But Oil Level is Full: This is the classic symptom. The switch is sending a false signal. Always check the oil level with the dipstick first to rule out actual low oil.
- Flickering Oil Light: The light may flicker, especially during turns, acceleration, or at idle. This can indicate the switch is starting to fail intermittently. 🎬 See why you shouldn't ignore these common oil pressure sensor symptoms.
- Visible Oil Leak: The switch itself can develop a leak. You might see oil on the sensor or dripping underneath the engine. A burning oil smell can also occur if the leaking oil hits hot engine parts.
Don't Ignore the Oil Light
Never assume the warning light is just a faulty switch. Always verify your engine oil level immediately. Driving with low oil pressure can cause catastrophic engine damage.
🎬 Watch this video to learn more about oil sensor warning signs.Choosing the Right Aftermarket Part
For a simple part like an oil pressure switch, a quality aftermarket brand is often a reliable and cost-effective choice compared to a more expensive OEM part from the dealer. The key is to select a brand with a good reputation for quality control.
Reputable Aftermarket Brands:
- Standard Ignition (SMP): Often considered a top-tier aftermarket brand, known for quality that can meet or exceed OEM specifications.
- Beck Arnley: This brand specializes in sourcing parts that match the original equipment (OE) form, fit, and function. Sometimes, their parts are the same as the OEM part, just in a different box.
Other Available Brands:
- Facet, Global Parts, Holstein, Rostra Powertrain, and True Tech are also available. While they offer a more budget-friendly option, their long-term reliability may vary. For a critical component like this, spending a few extra dollars on a more established brand is a wise investment.
Cost of Replacing the Engine Oil Pressure Switch
| Part or Service | Estimated Cost |
|---|---|
| New Aftermarket Part | $9.52 - $32.45 |
| New OEM Part | $37 - $55 |
| Shop Labor | $60 - $120 |
Frequently Asked Questions
Where is the oil pressure switch located on a 2001-2010 Prius?
The oil pressure switch is typically screwed into the engine block, often near the oil filter housing. On these Prius models, it is accessed by removing the front passenger-side wheel and engine under-covers.
Can I replace the oil pressure switch myself?
Yes, this is a DIY-feasible job for someone with basic tools. You will need to safely jack up the car, remove the wheel, disconnect the electrical connector, and use a 24mm deep socket to unscrew the old switch. You don't need to drain the engine oil, but a small amount may spill out.
Do I need a special tool to replace the switch?
A 24mm deep socket wrench is required. It is important to use the correct socket to avoid damaging the new switch during installation. The new switch should be torqued to 11 ft-lbf (15 N·m).
Are there any recalls for the oil pressure switch on the 2001-2010 Prius?
No, searches of the National Highway Traffic Safety Administration (NHTSA) database did not find any recalls specifically for the engine oil pressure switch on the 2001-2010 Toyota Prius.
Will a bad oil pressure switch cause a Check Engine Light?
Yes, a malfunctioning oil pressure switch or circuit can trigger the Check Engine Light and log a diagnostic trouble code, most commonly P0520.
Helpful Videos
Technical Specifications

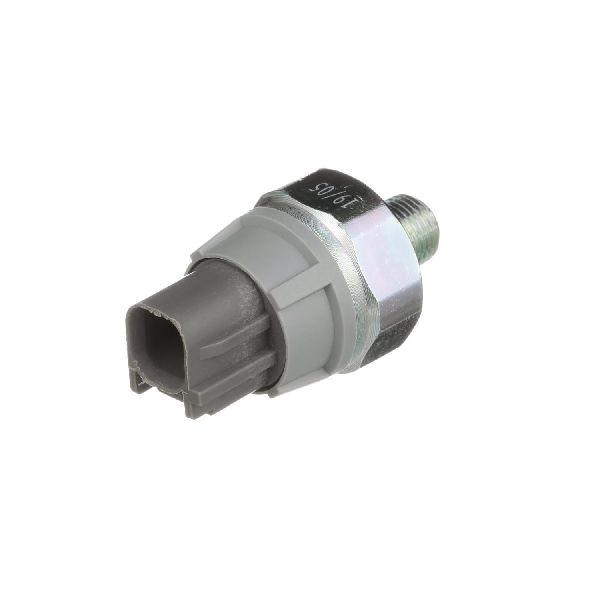

OEM Part Numbers: 83530-60020 83530-28020 83530-12050 83530-12060 83530-12070
Required Tool: 24mm deep socket wrench. Torque Specification: 15 N·m (11 ft·lbf).
