A Guide to Suspension Strut Bellows for the 2001-2010 Toyota Prius
If you've found a torn rubber boot in your Prius's wheel well, here is what you need to know about fixing it.
- A torn strut bellow is a common issue on 2001-2010 Prius models and leads to eventual strut failure.
- Due to the high labor cost, it is more economical to replace the entire strut assembly ('quick-strut') rather than just the bellow.
- KYB is the Original Equipment Manufacturer (OEM) for Toyota and is a top choice for replacement parts.
- A wheel alignment is required after replacing front struts to prevent tire damage and ensure safe handling.
Is a Torn Strut Bellow a Big Deal?
You or your mechanic likely found a torn or completely disintegrated strut bellow during a tire rotation or brake inspection. On its own, a torn bellow causes no immediate symptoms. However, it leaves the strut's piston rod exposed. Debris and moisture will wear out the strut's seal, causing the strut to leak and fail. While many owners drive with torn bellows for years, it is the beginning of the end for that strut. The strut is now unprotected and will wear out much faster.
Symptoms of a Failing Strut (Caused by a Bad Bellow)
Once the bellow is gone and the strut begins to fail, you will notice several signs:
🎬 Watch: 5 symptoms of bad struts you should not ignore- Clunking or Knocking Noises: You may hear sounds from the front or rear suspension when driving over bumps or uneven roads. This is often the first noticeable symptom after the boot has been torn for a while. 🎬 See how to diagnose and fix common Prius suspension clunking
- Bouncy Ride: The car may bounce more than usual after hitting a bump instead of settling down quickly.
- Nose-Diving: The front of the Prius may dip down excessively when you apply the brakes.
- Visible Fluid Leaks: A sure sign of a failed strut is oily fluid leaking down the side of the strut body.
- Uneven Tire Wear: Failed struts can cause a 'cupping' pattern on your tires as they bounce down the road.
Pro Tip: Replace the Strut, Not Just the Bellow
The labor required to replace only the strut bellow is the same as replacing the entire strut assembly. The job requires removing the strut and using a dangerous spring compression tool. Because of this, most shops and experienced DIYers recommend replacing the entire strut (or the pre-assembled 'quick strut') at the same time. It saves you from paying for the same difficult job twice.
Choosing the Right Aftermarket Strut Bellow

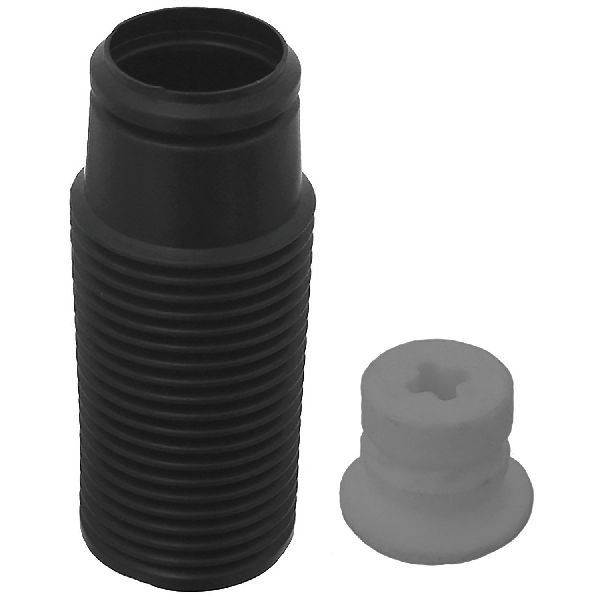

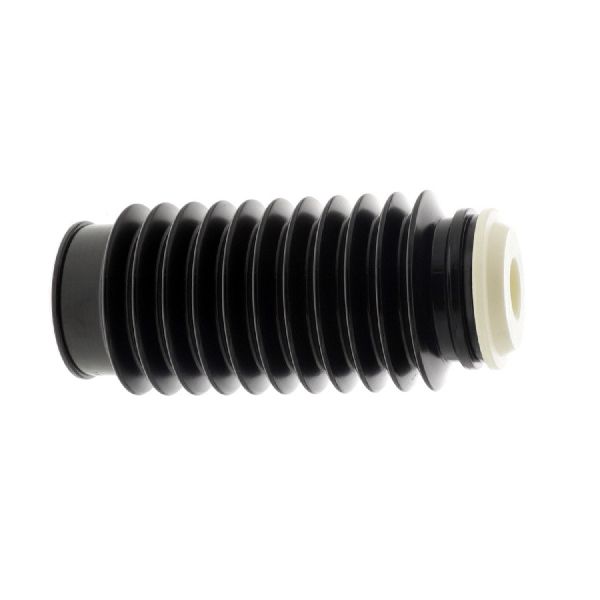

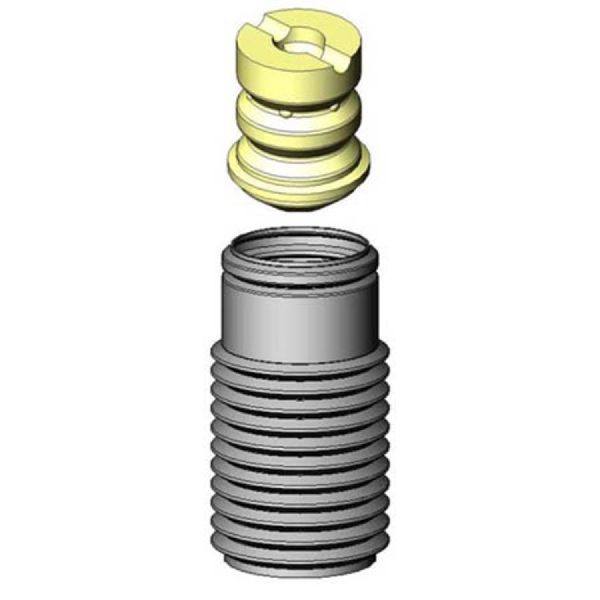

For the 2001-2010 Prius, several aftermarket brands offer quality replacement bellows. They often come in a kit with a new jounce bumper (the foam piece that prevents bottoming out).
Brand Quality Tiers
- Tier 1 - OE-Equivalent (KYB): KYB is the original equipment manufacturer for Toyota's struts. Choosing a KYB bellow kit is the closest you can get to the original factory part's quality and fit. They are highly recommended by Prius owners. Note that some KYB kits for the 2001-2003 models may require you to trim and reuse a piece of your old part.
- Tier 2 - Quality Aftermarket (Moog): Moog is a well-respected aftermarket brand known for suspension components. Their parts are a reliable alternative to the original and offer a good balance of quality and price.

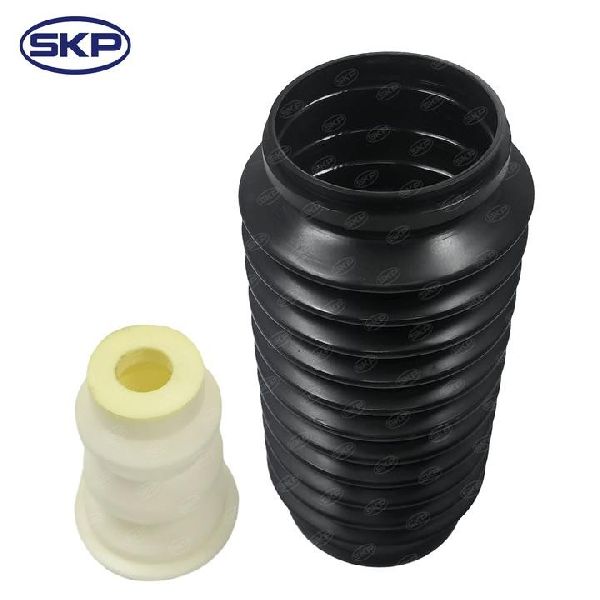

- Tier 3 - Economy (Skyward): Skyward and other private-label brands offer a budget-friendly solution. While they will get the job done, the materials and long-term durability may not match that of premium brands like KYB or Moog. They are a practical choice if minimizing cost is the top priority.
Cost to Replace a Toyota Prius Strut Bellow
| Part / Service | Estimated Cost |
|---|---|
| Aftermarket Strut Bellow Kit | $20 - $40 per side |
| OEM Toyota Strut Bellow | $45 - $70 per side |
| Shop Labor (Bellows Only) | $200 - $400 per side |
| Recommended: Aftermarket Quick-Strut Assembly | $90 - $180 per side |
Note: Labor costs for replacing only the bellow are high because the entire strut must be disassembled. It is almost always more cost-effective to replace the entire strut assembly 🎬 Watch this walkthrough on replacing the front strut assembly, which includes a new strut, spring, mount, and bellow.
Frequently Asked Questions (FAQ)
Can I drive my Prius with a torn strut bellow?
Yes, you can drive the car. A torn bellow itself does not affect how the car drives. However, it leaves the strut unprotected, which will lead to premature failure of the strut itself. It's best to plan for a replacement.
Should I replace just the bellow or the entire strut assembly?
Because the labor is identical and very involved, it is highly recommended to replace the entire strut assembly (a "quick strut"). This gives you a new strut, spring, mount, and bellow all in one pre-assembled unit, which restores ride quality and saves on future labor costs.
Are there any recalls for Prius suspension bellows?
No, there are no specific recalls for suspension strut bellows on the 2001-2010 Toyota Prius. There was a recall for the 2001-2003 models related to electric power steering nuts, but it is unrelated to the suspension struts.
Do I need a wheel alignment after replacing strut bellows?
Yes. Any time the front struts are removed or replaced, you must get a professional wheel alignment. Not doing so will cause poor handling and rapid, uneven tire wear.
Helpful Videos
Technical Specifications
OEM Part Numbers: 48157-47010 48157-47020 48157-12080 48157-0R010
Fitment varies between the first generation (2001-2003) and second generation (2004-2009) Prius. Bellows are typically sold as a kit including the jounce bumper. They are available for both front and rear struts.
