A Guide to the Engine Torque Strut Mount for the 2001-2010 Volvo S60
If your S60 is vibrating at idle or clunking on acceleration, your upper engine mount is the most likely cause.
- The most common symptoms of failure are vibration at idle and a clunking noise on acceleration.
- Replacement is very easy and can be done in under 30 minutes with basic tools, making it a great DIY job.
- Avoid budget aftermarket brands like URO, Anchor, and DEA for this part; their high failure rate and poor performance are well-documented by owners.
- When one mount fails, inspect the other four engine mounts for wear, as they have been under extra strain.
Is Your S60 Shaking or Clunking? Check This Mount First.
The upper engine torque mount on the 2001-2010 Volvo S60 is a well-known weak point. Over time, the rubber bushing inside the mount cracks, dries out, and separates due to engine heat and constant stress. Oil leaks from a bad oil filler cap seal can also drip onto the mount, speeding up the deterioration of the rubber. When it fails, you'll notice a significant decline in your car's smoothness.
Symptoms of a Failed Torque Strut Mount
- Vibration at Idle: The most common symptom is a noticeable vibration felt in the steering wheel, seats, or floor when the car is stopped and in gear.
- Clunking or Thumping Noises: A distinct 'clunk' or 'thud' from the engine bay when you accelerate, brake hard, or shift between Park, Reverse, and Drive is a clear sign of failure. This is the sound of the unrestrained engine moving and hitting its limits. 🎬 Watch: Hear the thumping sounds and see a shaking engine.
- Visible Damage: You can often diagnose this part with a simple visual inspection. Open the hood and look at the mount located on top of the engine. Look for deep cracks, tears, or a complete separation of the rubber bushing from the metal frame.
Check All Five Mounts
Your S60 has five engine and transmission mounts. When the upper torque mount fails, it puts extra stress on the remaining four, causing them to wear out faster. If your car has high mileage, it's a good idea to inspect the other mounts when you replace the upper one.

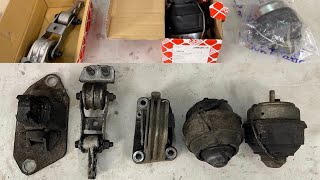

🎬 See how to replace all five engine mounts on your Volvo.Choosing the Right Aftermarket Mount: Quality Matters
For most car parts, aftermarket options offer a great balance of quality and price. However, for Volvo engine mounts, the quality gap between brands is huge. Forum discussions among S60 owners are filled with stories of cheap aftermarket mounts causing severe vibrations or failing within a few months. Volvo's 5-cylinder engines require a mount with specific rubber density to properly absorb vibrations; many budget parts use solid, inferior rubber that is too stiff.
Aftermarket Brand Tiers for Volvo S60
- Tier 1: OEM & Premium Aftermarket: Genuine Volvo parts or parts from OEM suppliers like Hutchinson will provide the best performance and longevity. These are designed to the exact specifications needed for a smooth ride. This is the most recommended option.
- Tier 2: Performance (Polyurethane): Brands like iPd offer polyurethane bushings as a performance upgrade. While very durable, they are much stiffer and will transmit significantly more engine vibration into the cabin. This is not recommended for a daily-driven car unless you are specifically seeking a performance feel and can tolerate the added noise and vibration.
- Tier 3: Budget Brands (Anchor, DEA, URO Parts, Westar): These brands are widely available and inexpensive, but owner feedback is consistently negative. URO Parts, in particular, has a poor reputation in the Volvo community, with many owners reporting mounts that collapsed immediately upon installation or failed in under a year. Anchor and DEA mounts are also reported to cause excessive vibration or have a very short service life. It is strongly advised to avoid these brands for this specific part to prevent having to do the job twice.
Pro Tip: Get the Updated Design
Volvo updated the original torque mount design from a circular bushing to a more robust square bushing. The square design is stronger and lasts longer. All quality aftermarket replacements should be of this updated square style, which is a direct fit for all 2001-2010 S60 models.
Cost of Replacing Your Torque Strut Mount
| Part Type | Part Cost | Installed Cost (Estimated) |
|---|---|---|
| New OEM / Premium Aftermarket | $70 - $120 | $130 - $220 |
| New Aftermarket (Budget) | $39 - $70 | $99 - $170 |
Cost estimates are approximate and can vary based on local labor rates and part suppliers.
Frequently Asked Questions (FAQ)
How do I know for sure my torque mount is bad?
The easiest way is a visual inspection. Look for cracks or separation in the rubber. You can also have a helper put the car in drive with the brake held firmly, then lightly press and release the gas. If you see the engine rock back and forth more than an inch or two, the mount is bad.
Is it safe to drive with a failed engine torque mount?
You can drive the car, but it's not recommended for long periods. A failed mount puts significant strain on other components, including the other engine mounts, CV joints, exhaust pipes, and various hoses. Fixing it sooner rather than later can prevent more expensive repairs down the road.
Can I replace the torque strut mount myself?
Yes, this is one of the easiest repairs you can do on a P2 platform Volvo. The mount is right on top of the engine and is typically held in by just a few bolts. Most owners with basic hand tools can complete the job in under 30 minutes.
🎬 Watch: A quick walkthrough on replacing your upper engine mount.What is the difference between the upper and lower torque mounts?

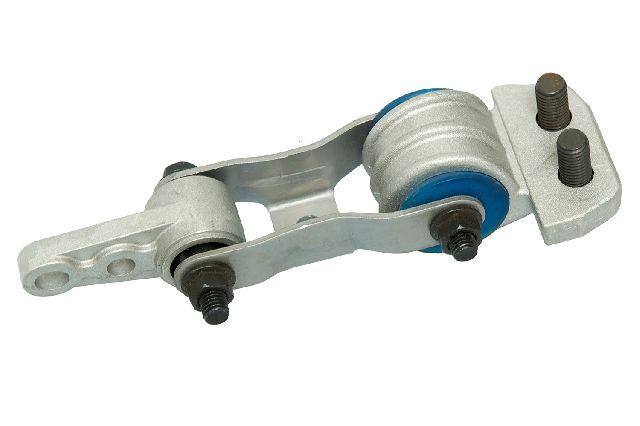

The upper torque mount (this part) controls the engine's rocking motion. There is also a lower torque mount, sometimes called a 'dog bone' mount, located underneath the engine. It serves a similar purpose. While the upper mount is the most common to fail, the lower one can also wear out and cause similar, though often less pronounced, symptoms.
Helpful Videos
Technical Specifications
OEM Part Numbers: 30680474 31277241
This is the upper engine stabilizer mount, also known as a torque rod. It connects the engine to the chassis strut tower brace. The updated OEM design features a square rubber bushing for improved durability over the original circular design.
