A Comprehensive Guide to the 2001-2010 Volvo S60 Fuel Pump Module Assembly
If your S60 is stalling or struggling to start, your fuel pump module may be the reason; here is what you need to know before you buy a replacement.
- Always check the Fuel Pump Electronic Module (PEM) first, as it can cause identical symptoms and is a known failure point.
- Bosch is the original manufacturer for Volvo, so choosing their aftermarket part ensures OEM quality.
- You must verify if your S60 has a plastic or metal fuel tank before ordering, as the parts are different.
- Replacement is a moderate DIY job, but it requires working with gasoline and should be done carefully with an almost-empty tank.
Is Your S60's Fuel Pump Failing? Common Symptoms
A failing fuel pump doesn't usually stop working all at once. It will often give you warning signs. If you notice any of these issues, it might be time for a replacement.
- Engine Stalling: The engine may stall unexpectedly while driving, even at high speeds. This happens when the pump can no longer provide a consistent flow of fuel.
- Difficulty Starting: You might have to crank the engine for a long time before it starts, or it may not start at all. This is a sign the pump is too weak to build enough pressure.
- Sputtering and Loss of Power: The car may hesitate, sputter, or feel like it's losing power when you accelerate, climb a hill, or carry a heavy load.
- Loud Whining Noise: You may hear a loud humming or whining sound coming from the rear of the car, near the back seat. This is the sound of the electric pump motor straining to work.
- Check Engine Light: A failing pump can trigger the check engine light. A common trouble code is P0087, which means the fuel rail pressure is too low.
Important: Could It Be the Fuel Pump Electronic Module (PEM)?
Before you replace the fuel pump, you must consider the Fuel Pump Electronic Module (PEM). On these S60 models, the PEM is known to fail and can cause the exact same symptoms as a bad fuel pump, including a no-start condition. Many owners have replaced their fuel pump only to find the PEM was the real problem. Always test the PEM first to avoid buying parts you don't need.
🎬 Watch: Why you should check the PEM before replacing the pump.Choosing the Right Aftermarket Fuel Pump
When you shop for a new fuel pump module, you will see a big price difference between brands. This is directly related to quality, reliability, and whether the brand is an Original Equipment (OE) supplier.
Brand Quality Tiers
Not all aftermarket parts are created equal. Here’s a breakdown of the brands available for your S60.
- Tier 1 - OE/OEM Quality (Bosch, Delphi): Bosch is the Original Equipment Manufacturer (OEM) for the Volvo S60 fuel pump. This means they made the part that was installed in your car at the factory. Choosing a Bosch aftermarket pump gives you the same quality, fit, and performance as the dealer part without the high dealer price. Delphi is another top-tier OE supplier known for making high-quality fuel system components that meet or exceed factory standards.
- Tier 2 - Reputable Aftermarket (Carter, Professional Parts Sweden, URO Parts): These brands offer a good balance of quality and value. Carter is a well-known American brand with a long history in fuel systems. Professional Parts Sweden and URO Parts specialize in parts for European cars like your Volvo and are popular choices for owners looking for a reliable replacement without the OE price tag.
- Tier 3 - Economy (US Motor Works, AutoBest): These brands focus on providing the most affordable option. While they will get your car running, they may not have the same long-term durability or precise fuel level readings as the higher-tier brands. They can be a good choice if you are on a tight budget, but be aware that the lower cost often reflects differences in materials and construction.
Critical Ordering Mistake: Plastic vs. Metal Fuel Tank
Volvo used both plastic and metal fuel tanks in the 2001-2010 S60, with a change happening around 2004-2005. The fuel pump module assemblies for these two tank types are different and are not interchangeable. Before ordering, you must confirm which tank your car has. You can often check by looking under the car or by providing your VIN to the parts seller. Ordering the wrong part will lead to wasted time and money.
🎬 See this guide for replacing the pump on metal tank models.Estimated Replacement Costs
| Part Type | Estimated Cost |
|---|---|
| New Genuine OEM | $450 - $1200 |
| New Aftermarket | $135 - $995 |
| Used OEM | $75 - $200 |
| Shop Labor | $312 - $500 |
Frequently Asked Questions
How hard is it to replace the S60 fuel pump?
The job is moderately difficult and can be done by a skilled DIYer. It involves removing the rear seat bottom and sometimes the seat back to access two panels on the floor. You will work through these two access ports to disconnect and snake the old module out and the new one in. The most important things are to work safely with an almost-empty fuel tank (less than half full) and to be patient.
Do I need a special tool to replace the fuel pump?
A special fuel tank lock ring tool is highly recommended to safely remove and properly tighten the plastic rings that seal the module to the tank. While some people use a hammer and a brass punch, this can damage the ring and is not the safest method.
What is a 'saddle tank' and why does it matter?
A saddle tank is shaped like a saddle to fit over the car's exhaust or driveshaft. This means your S60 has two sides to its fuel tank. The fuel pump module not only pumps fuel to the engine but also has to move fuel from one side of the tank to the other to ensure all the gas can be used. This is why the replacement involves two access holes and feeding hoses across the tank.
🎬 Watch: A complete step-by-step fuel pump module replacement walkthrough.Should I just buy the cheapest fuel pump available?
It is generally not recommended. The fuel pump is a critical part that can leave you stranded if it fails. Cheaper pumps often use lower-quality internal components that may not last as long or provide as accurate fuel gauge readings. Investing in a quality brand like Bosch or Delphi often saves you money and trouble in the long run.
Helpful Videos
Technical Specifications
OEM Part Numbers: 30741993 30761745 30792447 31261133 31372901 31336036

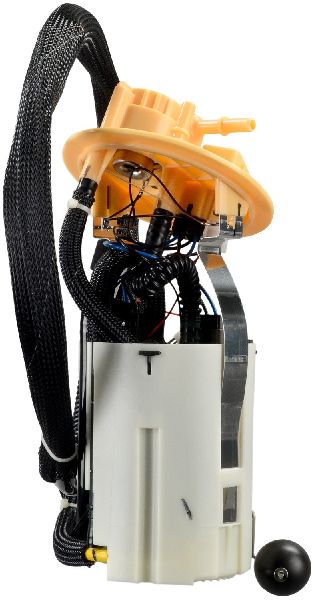

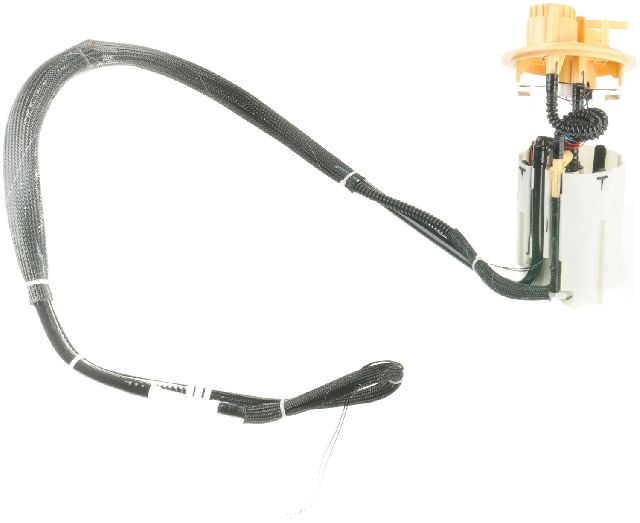

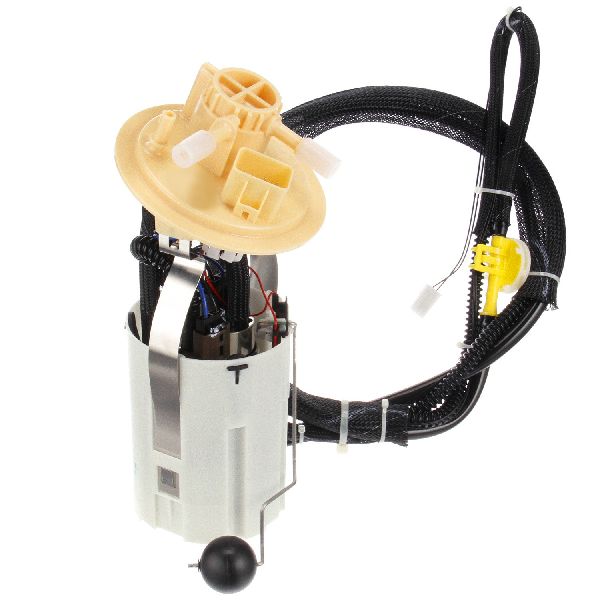

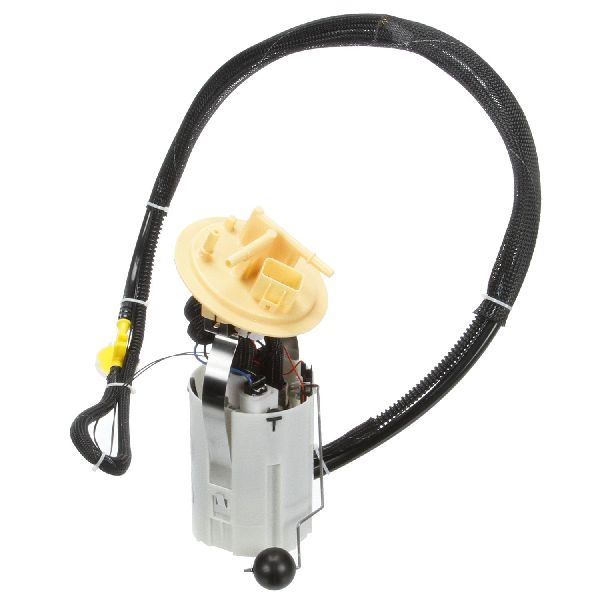

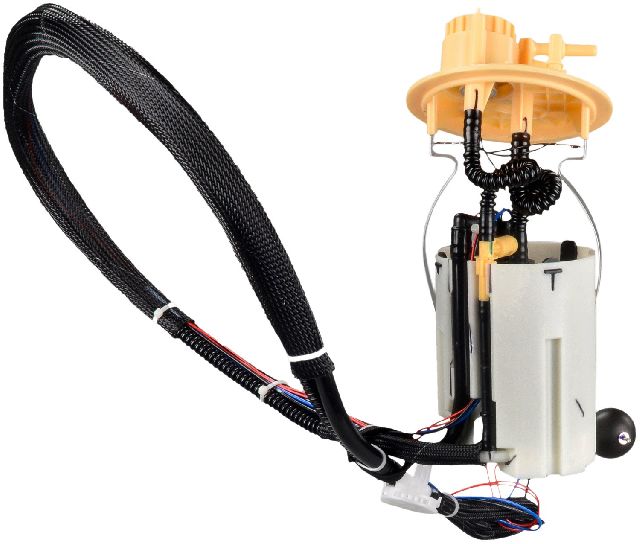

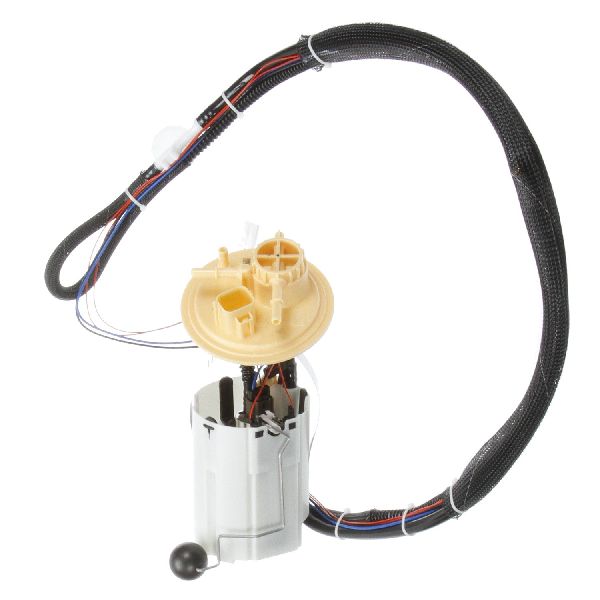

Complete module assembly including the electric fuel pump, fuel level sending unit, float, and housing. Designed for a 'saddle' style fuel tank. Specific part numbers vary depending on whether the vehicle is equipped with a plastic or metal fuel tank.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
