BMW X5 Engine Coolant Pipe Guide (2001-2011)
A detailed look at the common coolant pipe failures in E53 and E70 BMW X5s and how to choose the right aftermarket replacement part.
- The coolant transfer pipe on V8 (N62) models is a notorious failure point requiring a special aftermarket collapsible pipe for a cost-effective repair.
- Symptoms include a low coolant light, visible leaks from the front 'weep hole', and potential overheating.
- For V8s, always choose an aftermarket collapsible aluminum pipe kit from a brand like URO Parts over the OEM design.
- This is a very complex repair; while some advanced DIYers attempt it, professional installation is strongly recommended.
Understanding Coolant Pipe Failure in Your X5

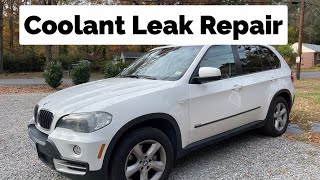

If you own a 2001-2011 BMW X5, especially a V8 model (4.4i, 4.8i, or 4.8is), you will likely face a coolant pipe leak at some point. The most notorious failure involves the main coolant transfer pipe located deep within the engine valley on the N62 V8 engine. The original seal on this pipe degrades from constant heat cycles, causing a slow leak that can be difficult to trace. The leak often appears from a small "weep hole" in the front timing chain cover, just behind the water pump. Six-cylinder models (3.0i) also experience coolant pipe issues, typically with plastic fittings 🎬 Step-by-step guide for replacing the 6-cylinder coolant hose connector. that become brittle and crack over time, such as the hose connector on the cylinder head.
The N62 V8 "Valley Pan" Coolant Pipe
This is the single most common and significant coolant pipe failure on 2004-2010 V8-powered X5s (E53 and E70 generations). The original factory pipe is a single, rigid piece. Replacing it with another OEM part is an extremely labor-intensive job that can require extensive engine disassembly. Because of this, the aftermarket has developed innovative solutions.
Choosing the Right Aftermarket Coolant Pipe
When the V8's main coolant pipe fails, ignoring it is not an option. Fortunately, aftermarket brands have engineered superior solutions that are both more durable and easier to install than the original part.

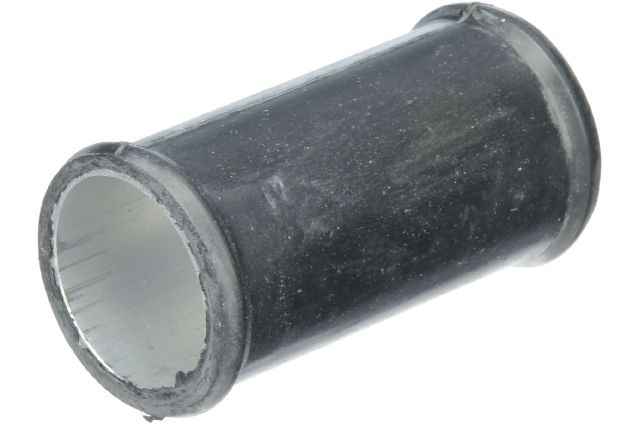

- Collapsible Aluminum Pipes (V8 Models): This is the preferred solution for the N62 engine failure. Brands like URO Parts offer a telescopic or collapsible aluminum pipe that can be installed without removing the engine's timing covers. This design dramatically reduces labor time and cost. The kit typically includes improved seals made from more durable materials like EPDM silicone or Viton to prevent future leaks.

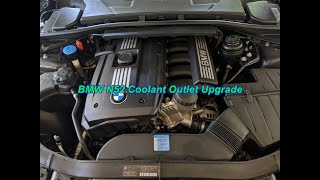

- Upgraded Flanges (6-Cylinder Models): For 6-cylinder engines like the N52, a common failure point is the plastic coolant hose flange on the cylinder head, often called the "Mickey Mouse" flange. Aftermarket brands like CRP (Rein) offer replacements made from aluminum, which provides a permanent solution to the brittle plastic problem. 🎬 See how to upgrade your N52 coolant outlet hose.
- Brand Quality:

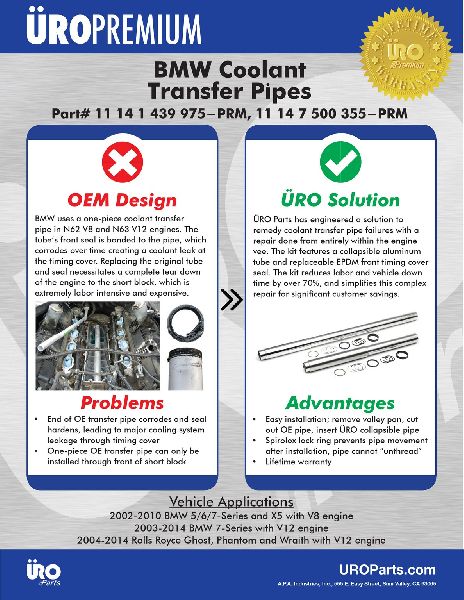

- URO Parts: Well-known for its premium, redesigned collapsible coolant pipe for the N62 V8 engine, which is considered a major upgrade over the factory part. 🎬 Watch how this collapsible pipe fixes the V8 seal leak. Some forum users have reported long-term success with the URO kit.
- CRP (Rein): A trusted OEM supplier for many BMW parts. Their hoses and upgraded aluminum flanges for 6-cylinder models are high-quality alternatives to dealer parts.
- Vaico: Another established aftermarket brand offering a range of coolant pipes and hoses.
Pro Tip: When replacing the main coolant pipe on a V8, it is highly recommended to also replace the valley pan, water pump, and any other accessible seals and gaskets at the same time. This is a "while you're in there" job that will save you from future repairs.
Cost of Replacing a BMW X5 Engine Coolant Pipe
| Part/Service | Estimated Cost |
|---|---|
| Aftermarket Collapsible Pipe Kit (V8) | $250 - $350 |
| Aftermarket Pipe/Hose (6-Cyl) | $20 - $70 |
| Shop Labor (V8 Collapsible Pipe) | $1200 - $2000+ |
| Shop Labor (6-Cyl Hoses) | $200 - $500 |
Note: Labor costs are estimates and can vary significantly based on shop rates and location. The V8 coolant pipe replacement is a complex job.
Frequently Asked Questions
Is there a recall for the BMW X5 coolant pipe?
There is no specific recall for the N62 engine's coolant transfer pipe leak. However, there have been recalls for other cooling system components on some X5 models, like an electrical connector near the water pump on 2016-2018 X5s, which does not apply to the primary pipe failure discussed here.
Can I just replace the seals instead of the whole pipe?
For the V8's main transfer pipe, the original seal is bonded to the pipe. Aftermarket collapsible pipe kits come with new, improved seals that are designed to work with the new pipe. Simply replacing an o-ring is not a viable fix for this specific issue.
Is the aftermarket aluminum pipe better than the OEM one?
Yes, for the V8 engine, the aftermarket collapsible aluminum pipe is widely considered a better solution. It not only uses more durable materials for the seals but its design makes installation vastly easier and cheaper than replacing it with another rigid OEM pipe.
How can I tell if my V8 X5 has the coolant pipe leak?
The most common symptom is a slow coolant leak that drips from a weep hole in the timing cover, located behind the water pump. You may see pink or orange coolant residue in this area or find puddles under the engine. The leak may also run down the back of the engine, appearing to come from between the engine and transmission. A low coolant warning light on the dashboard is another key indicator.
Helpful Videos
Technical Specifications
OEM Part Numbers: 11141439975 11537508688 11531705210 11537502000
Primary failure is the coolant transfer pipe on N62 V8 engines. Aftermarket solutions utilize a collapsible aluminum pipe design. 6-cylinder models often fail at plastic hose fittings.
