A Guide to the Alternator in Your 2001-2011 Chevrolet Silverado 2500 HD
Keep your heavy-duty truck's electrical system running strong by choosing the right replacement alternator.
- Verify your truck's required amperage (Amps) before buying; diesel and towing packages need more power.
- Symptoms include dimming lights, a dashboard warning light, and whining noises from the engine.
- The replacement is DIY-friendly, located at the top of the engine and requiring basic tools.
- Consider checking battery cables for corrosion or high resistance, as this can mimic alternator failure.
Is Your Alternator Failing? Common Symptoms
An alternator rarely fails without warning. For a Silverado 2500 HD, the signs are usually clear. Paying attention to them can save you from being stranded.
- Warning Lights: The most obvious sign is a 'Battery', 'ALT', or 'Charging System' light on your dashboard. This is your truck's computer telling you it has detected a voltage problem.
- Dim or Flickering Lights: You may notice your headlights and dash lights dim at idle and brighten when you rev the engine. This shows the alternator isn't producing consistent power.
- Strange Noises: A grinding or whining sound from the front of the engine is a classic symptom of failing alternator bearings. The noise often gets louder or changes pitch with engine speed.
- Electrical Problems: Accessories like power windows may operate slower than normal, or your radio might cut out. This happens when there isn't enough electricity to go around.
- Dead Battery: If you need to jump-start your truck often, the alternator is likely the culprit. It's failing to recharge the battery as you drive.
Known Issues: Recalls and Service Bulletins
Safety Recall 14260 (2007-2011 Models): While not a direct alternator recall, GM issued a recall for 2007-2011 trucks equipped with the auxiliary battery option (RPO TP2). The wiring for the trailer harness feed could overheat, creating a fire risk. Dealers were to install a new jumper harness with a 40A fuse. It's worth checking if this recall was performed on your truck.
High Resistance Cables: Some charging system problems on these trucks are not caused by the alternator itself, but by battery cables that have developed high internal resistance over time. Before replacing the alternator, it's a good idea to have the main power and ground cables checked for corrosion and resistance.
Choosing the Right Aftermarket Alternator
When shopping for a new alternator, you don't have to buy from the dealer. Aftermarket parts offer a wide range of quality and price. For your Silverado HD, the most important factor is matching the amperage (Amps) to your truck's needs.
Check Your Amperage
Your truck came from the factory with an alternator rated for a specific amperage, such as 105A, 130A, or 145A. Diesel (Duramax) models and trucks with towing packages typically require a higher amperage alternator. Always replace your alternator with one that has at least the same amperage rating as the original. You can often find this information on a sticker on the old alternator or by checking your truck's build sheet using the VIN.
Pro Tip: If you've added high-power accessories like a snow plow, a large audio system, or extra off-road lights, consider upgrading to a high-output alternator from a brand like Powermaster. This will prevent strain on your electrical system. A high-output unit may require you to also upgrade your main wiring (known as the "Big 3" upgrade).
Brand Quality Tiers
Not all brands are created equal. Here’s a general breakdown of the brands available for your truck:
- Premium Brands (ACDelco, Bosch): ACDelco is the original GM parts brand and offers different lines, with their Gold and GM Original Equipment lines being top choices for fit and reliability. Bosch is another globally recognized brand known for high-quality electrical components. These are excellent, reliable choices.
- Specialty Brands (Powermaster): Powermaster specializes in high-performance and high-output alternators. They are a top choice for modified or heavy-use work trucks.
- Standard Aftermarket (Remy, WAI Global, BBB Industries, MPA): These brands offer a good balance of quality and value. Remy has a long history connected to GM's original parts supplier. Many of their products are remanufactured but are built to meet or exceed original specifications by replacing all common wear items like bearings and brushes.
Cost of Replacing Your Alternator
The cost can vary widely based on the brand you choose and whether you do the work yourself. The job is straightforward for a DIYer with basic tools.
| Item | Estimated Cost |
|---|---|
| New Aftermarket Alternator | $57 - $453 |
| Shop Labor | $120 - $250 |
| Total Professional Replacement | $177 - $703 |
Frequently Asked Questions
Do I need a special alternator for my Duramax diesel?
Yes, almost always. The 6.6L Duramax engine has different electrical demands, including glow plugs and often dual batteries. It requires a specific, higher-amperage alternator (often 145A or more). Always verify the fitment for your exact engine.
My voltage gauge moves around. Is my alternator bad?
Not necessarily. On many 2007.5 and newer Silverado models, the Engine Control Module (ECM) actively controls the alternator's output. It's normal to see the voltage gauge move between 12 and 15 volts depending on the electrical load and the battery's state of charge. However, if it's accompanied by other symptoms like dimming lights or a warning message, it should be checked.
What's the difference between a new and a remanufactured alternator?
A new alternator is made with all-new components. A remanufactured alternator starts with the original core (housing), which is cleaned and inspected. All internal wear parts, like bearings, brushes, and the voltage regulator, are replaced with new components. A quality remanufactured unit from a reputable brand can be just as reliable as a new one and often comes with a good warranty.
Can I install the alternator myself?
Yes, this is a very DIY-friendly job on the 2001-2011 Silverado 2500 HD. The alternator is located at the top front of the engine and is easy to access. The process involves disconnecting the battery, removing the air intake tube, releasing the serpentine belt, and unbolting two bolts. It typically requires only basic hand tools.

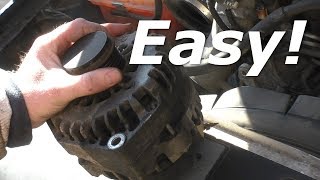

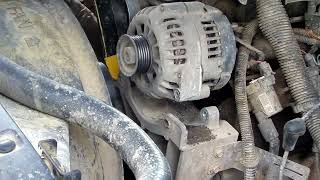

Helpful Videos
Technical Specifications
OEM Part Numbers: 15754097 15200268 25888970 10311045 8247
Amperage ratings typically range from 105A to 145A. The unit is internally regulated and uses a 6-groove serpentine belt pulley. The electrical connection consists of a main battery post and a multi-pin plug (typically 2 or 4 pins depending on the year and model).
