Ford Ranger (2001-2011) Engine Timing Cover Gasket Set: A Complete Guide
Seeing oil or coolant spots under the front of your truck? It might be time to replace your engine's timing cover gasket.
- A leaking timing cover gasket is a common problem on 2001-2011 Rangers, especially with the 3.0L V6 engine, causing oil and coolant leaks.
- This is a labor-intensive repair; if doing it yourself, be prepared for an advanced project. If taking it to a shop, expect labor to be the biggest part of the bill.
- While the cover is off, it is highly recommended to replace the water pump and, on 4.0L SOHC engines, the timing chain cassettes and tensioners.
- Choose a quality aftermarket gasket set from brands like Victor Reinz or Fel-Pro for a reliable, long-lasting seal.
Is Your Ranger's Timing Cover Gasket Failing?

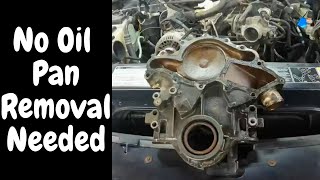

A leak from the timing cover gasket is a common issue on 2001-2011 Ford Rangers, especially on the 3.0L Vulcan V6. 🎬 Watch a step-by-step guide on fixing a 3.0L timing cover leak. Over time, heat and exposure cause the gasket material to become hard and brittle, losing its ability to seal properly. This can lead to oil or coolant leaking from the front of the engine.
Key Symptoms to Watch For:
- Oil Leaks: The most common sign is engine oil dripping from the front of the engine. You might see oil on the front of the engine block, behind the main crankshaft pulley, or on the ground under your truck.
- Coolant Leaks: On engines like the 3.0L V6, the timing cover also seals coolant passages. A failure here can cause a coolant leak, which is often visible as green or orange fluid dripping from the passenger side of the engine block. In severe cases, the timing cover itself can corrode from the inside out, allowing coolant to mix with the engine oil.
- Engine Running Rough or Knocking: While less common, if the cover becomes loose, it can create a knocking sound. If debris enters the timing area due to a bad seal, it could potentially interfere with the timing components, causing the engine to run poorly.
A Note for 4.0L SOHC V6 Owners
If you have the 4.0L SOHC engine, be aware of the notorious timing chain cassette and tensioner issues. These plastic components can wear out and break, causing a rattling noise on startup or, in worst-case scenarios, catastrophic engine failure. Since replacing the timing cover gasket requires accessing this area, it is the perfect time to inspect the timing chain, guides, and tensioners. 🎬 Learn how to replace the 4.0L SOHC timing cassette without special tools. Many mechanics recommend replacing them as a preventative measure, especially on engines with over 100,000 miles.
Choosing the Right Aftermarket Gasket Set
For a repair this labor-intensive, you don't want to cut corners on the gasket. A quality aftermarket set from a reputable brand is a reliable and cost-effective alternative to OEM. The key is the material and design. Look for gaskets designed for the repair environment, which often means they are made to seal surfaces that aren't perfectly flat after years of use.
- Good (Entry-Level): Apex is a budget-friendly option. While some users have success with them for less critical seals, they are generally considered an entry-level brand. For a job like this, it may be worth spending a little more for peace of mind.
- Better (OEM Quality): Victor Gaskets (Victor Reinz) and Fel-Pro are both well-respected brands that supply parts to vehicle manufacturers. Many professional mechanics trust and use both. Victor Reinz is often praised for its soft, pliable rubber gaskets that seal well. Fel-Pro is known for engineering gaskets specifically for imperfect, real-world repair surfaces. You can't go wrong with either of these choices for your Ranger.
Pro Tip: Make sure the kit you buy is complete. A good timing cover gasket set should include the main gasket, a new front crankshaft seal, and any other small seals or O-rings needed for the job.
Cost to Replace a Ford Ranger Timing Cover Gasket
This is not a cheap repair if you take it to a shop, primarily due to the high labor cost. The job can take anywhere from 4 to 10 hours.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Gasket Set | $12.94 - $52.20 |
| Shop Labor | $734 - $1,077 |
| Total Professional Repair | $905 - $1,249+ |
Costs are estimates and can vary based on your location and the specific needs of your vehicle.
Frequently Asked Questions
Is this a DIY-friendly job?
This is an advanced DIY repair. It requires draining the oil and coolant, removing the serpentine belt, fan, water pump, harmonic balancer, and other accessories to access the cover. You will need a good set of tools, including a torque wrench and a harmonic balancer puller. For the 3.0L engine, care must be taken not to damage the oil pan gasket where it meets the timing cover. If you are not an experienced DIY mechanic, this job is best left to a professional.

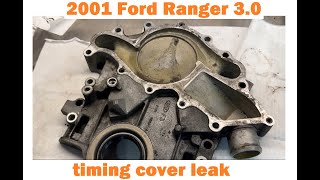

🎬 See the full disassembly process for a 3.0L timing gasket repair.What else should I replace at the same time?
Since you'll have the front of the engine disassembled, it's smart to replace other parts. Consider replacing the water pump, thermostat, serpentine belt, and the front crankshaft seal (which should come in your gasket kit). On 4.0L SOHC engines, this is the ideal time to replace the timing chain cassettes and tensioners.
Do I need to use RTV sealant with the new gasket?
It depends on the gasket and the location. Some spots, like where the timing cover meets the oil pan or the cylinder heads, require a small dab of RTV sealant to ensure a proper seal at the joints. However, do not coat the entire gasket with sealant unless the instructions specify it. Using a product like Hylomar on the gaskets can also be effective as it remains flexible and helps seal dissimilar metals.
My leak is slow. Can I use a stop-leak additive?
While some owners report temporary success with stop-leak products, it is not a permanent or recommended solution. These additives can potentially clog other parts of your cooling system or oil passages. The only proper fix for a failed gasket is to replace it.
Helpful Videos
Technical Specifications
Gasket sets are engine-specific for the 2.3L I4, 3.0L V6, and 4.0L SOHC V6. A complete kit should include the main timing cover gasket, front crankshaft oil seal, and any necessary water pump or secondary gaskets. Materials vary from multi-layered steel (MLS) and paper to molded rubber, depending on the application and brand.
