A Practical Guide to Replacing the Engine Valve Cover Gasket on a 2001-2011 Toyota Highlander
Seeing oil spots or smelling burning oil? Your Highlander's valve cover gaskets may be the culprit.
- Confirm your Highlander's exact engine (e.g., 2.4L I4, 3.3L V6, 3.5L V6) before ordering, as gaskets are engine-specific.
- For V6 models, the rear gasket replacement is a much larger job requiring removal of the intake manifold; plan for the extra time and cost.
- Always replace the spark plug tube seals and bolt grommets included in the kit at the same time as the main gasket.
- Clean all mating surfaces meticulously and apply a small amount of RTV sealant only at the timing cover joints for a leak-free seal.
Is Your Highlander's Valve Cover Gasket Failing?
Valve cover gaskets are made of rubber and live in a very hot environment. Over time, they become hard, brittle, and shrink. This prevents them from sealing properly, leading to oil leaks. This is a common maintenance item on any vehicle as it ages, including the 2001-2011 Toyota Highlander.
Key Symptoms of a Leak
- Burning Oil Smell: This is the most common sign. Oil drips from the leaking gasket onto the hot exhaust manifold, where it burns off and creates a distinct, unpleasant smell that you may notice inside or outside the car.
- Visible Oil and Grime: You may see wet, oily patches on the side of the engine, right below the plastic engine cover. This oil attracts dirt and dust, creating a thick, grimy buildup.

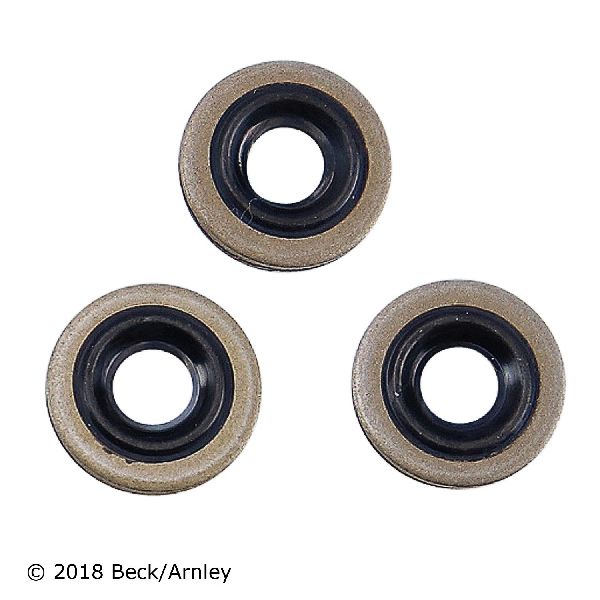

- Oil in Spark Plug Wells: The gasket set includes seals for the spark plug tubes. When these fail, oil fills the tubes where the spark plugs and ignition coils sit. This can cause the engine to run rough or misfire.
- Low Engine Oil: A significant leak can cause a noticeable drop in your engine oil level between oil changes, requiring you to top it off frequently.
V6 vs. 4-Cylinder: A Tale of Two Jobs
The 2001-2011 Highlander came with different engines, and the replacement job varies greatly:
- 4-Cylinder (2.4L or 2.7L): Replacing the single valve cover gasket is a straightforward job that many DIYers can handle in a couple of hours.
- V6 (3.0L, 3.3L, or 3.5L): The V6 has two gaskets. The front one is easy to access. The rear one, near the firewall, is much more difficult because the entire upper intake manifold must be removed to reach it. This turns the job from a simple task into a more involved, half-day project.
Choosing the Right Aftermarket Gasket Set
You don't necessarily need to buy an expensive OEM gasket from the dealer. Many aftermarket brands offer excellent quality for a fraction of the price. However, quality can vary, so it's important to choose wisely.
Brand Quality Tiers for Toyota Highlander

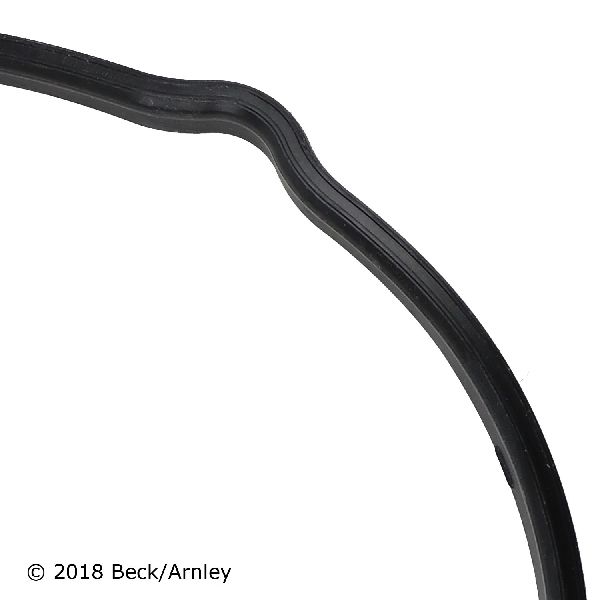

- Tier 1 - OEM Quality or Better (Fel-Pro, Beck Arnley): These brands are trusted by professional mechanics and experienced DIYers. Fel-Pro is known for often improving on the original factory design. Beck Arnley is known for sourcing parts from the same manufacturers that Toyota uses. You can be confident in the fit and material quality of these brands.
- Tier 2 - Good Value (Victor Reinz, Mahle): Often mentioned in the same breath as Tier 1 brands, Victor Reinz and Mahle provide reliable gaskets that meet or exceed OEM specifications and are a solid choice for this repair.
- Tier 3 - Budget-Friendly (DNJ, Apex, DJ Rock): These brands offer a lower price point, but the quality can be inconsistent. Some users report success, while others have experienced fitment issues, such as gaskets being slightly too large for the grooves in the valve cover. If you choose a budget brand, inspect the parts carefully before installation.
Cost to Replace a Highlander Valve Cover Gasket Set
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Gasket Set | $22 - $55 |
| New OEM Gasket Set | $70 - $90 |
| Shop Labor (4-Cylinder) | $150 - $250 |
| Shop Labor (V6 - Both Gaskets) | $450 - $700+ |
Cost estimates are for reference only and will vary by location and repair shop. The V6 labor cost is significantly higher due to the need to remove the intake manifold.
Frequently Asked Questions
Do I need to use sealant with the new gasket?
Yes, but only in specific spots. A small dab of RTV silicone sealant is required where the engine timing cover meets the cylinder head, usually at two or four corners of the gasket path. Do not apply sealant around the entire gasket, as it is designed to seal on its own.
Is this a good time to replace my spark plugs?
Absolutely. You will already have the ignition coils out, and on V6 models, the intake manifold will be off, giving you easy access to all six spark plugs. Replacing them at the same time is highly efficient and recommended, especially on higher-mileage vehicles.
My Highlander has a major oil leak. Is it the valve cover or something else?
While valve cover gaskets are a common leak source, second-generation Highlanders (2008-2011) with the 3.5L V6 engine are known for a much more serious issue: a rupturing rubber engine oil cooler line. This can cause a catastrophic loss of all engine oil in minutes. If you have a massive, sudden oil leak, this is a more likely cause than the valve cover gaskets.
Are there any recalls for this issue?
No, there have been no recalls issued by Toyota or the NHTSA for leaking valve cover gaskets on the 2001-2011 Highlander. This is considered a normal wear-and-tear maintenance item.

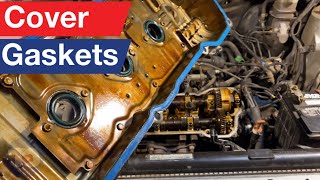

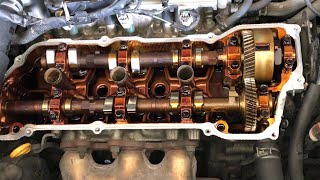

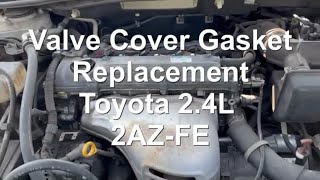

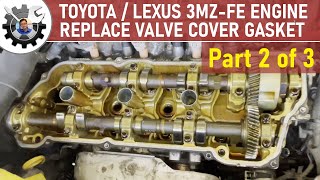

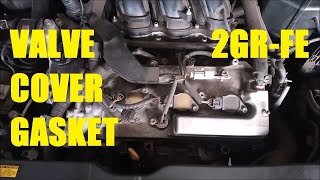

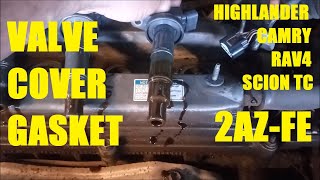

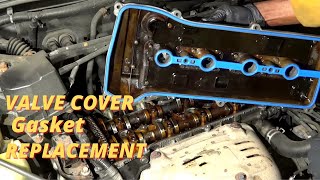

Helpful Videos
Technical Specifications
OEM Part Numbers: 11213-0A010 11214-0A010 11193-70010
Kit typically includes 1 or 2 valve cover gaskets, 4 or 6 spark plug tube seals, and 8 to 18 valve cover bolt grommets, depending on engine type. Material is typically molded rubber.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
