A Guide to Replacing Disc Brake Rotors on Your 2001-2011 Workhorse W22 Chassis
Understanding the unique brake issues of the W22 chassis is the first step to a safe and reliable repair.
- The primary cause of rotor failure on the W22 is sticking brake calipers, which was the subject of a major recall.
- It is highly recommended to replace the brake calipers at the same time as the rotors to prevent immediate damage to the new parts.
- Rotor replacement is a complex, labor-intensive job on this chassis because the hub assembly must be removed.
- Always use high-quality aftermarket rotors with a protective coating; economy parts are not safe for this heavy-duty application.
The Most Common Cause of W22 Rotor Failure
It is almost impossible to discuss W22 brake rotors without first mentioning the well-known Bosch brake caliper recall. Workhorse issued a major recall (NHTSA Campaign ID: 09V110000, Workhorse recall numbers 50901-C and 51101-C) for W20, W21, and W22 chassis built from July 2000 to August 2010. The original Bosch calipers contained phenolic pistons that could absorb moisture, swell, and stick, especially after long periods of storage—a common scenario for RVs.
This sticking action caused the brake pads to drag constantly on the rotor. This dragging generates extreme heat, which can quickly destroy a brake rotor, melt the ABS sensor, boil the brake fluid, and lead to a severe loss of braking power. Before replacing your rotors, it is critical to verify if this recall work was completed. 🎬 See how to identify and fix common brake drag issues. If you install new rotors without addressing faulty calipers, the new rotors will likely be damaged very quickly.
Symptoms of a Failing Disc Brake Rotor
Because of the vehicle's weight, you should never ignore signs of brake trouble. Damaged rotors often produce clear warning signs:
- Brake Pulsation: A pulsing or shaking feeling in the steering wheel or brake pedal when you apply the brakes. This is the most common symptom of a warped or unevenly worn rotor.
- Grinding or Squealing Noises: A loud, metal-on-metal grinding sound means the brake pads are completely worn, and the metal backing plate is digging into the rotor. High-pitched squealing can also point to glazed or heat-damaged rotors.
- Visible Damage: A visual inspection can reveal deep grooves, scoring, or large cracks on the rotor's surface. While small surface-level "heat check" cracks can be normal on a heavy vehicle, any crack that reaches the edge of the rotor is a major safety hazard and requires immediate replacement.
- Spongy or Soft Brake Pedal: If a rotor is severely overheated from a dragging caliper, it can cause the brake fluid to boil. This introduces air into the hydraulic lines and makes the pedal feel soft or go to the floor, severely reducing stopping power.
Choosing the Right Aftermarket Rotor for Your W22
For a heavy-duty application like the W22, rotor quality is critical. All four corners of the W22 chassis use the same disc brake rotor, which must have the tone ring for the ABS sensors. While economy-grade parts exist, they are not recommended for a heavy motorhome chassis due to the high potential for warping and cracking under stress.
Pro Tip: Given that many RVs sit for extended periods, choosing a rotor with a protective coating is a wise investment. Brands like Centric, Raybestos, and Powerstop offer rotors with e-coatings that prevent rust from forming on the hat and vanes, which helps with longevity and performance.
Here is a breakdown of the available brands:

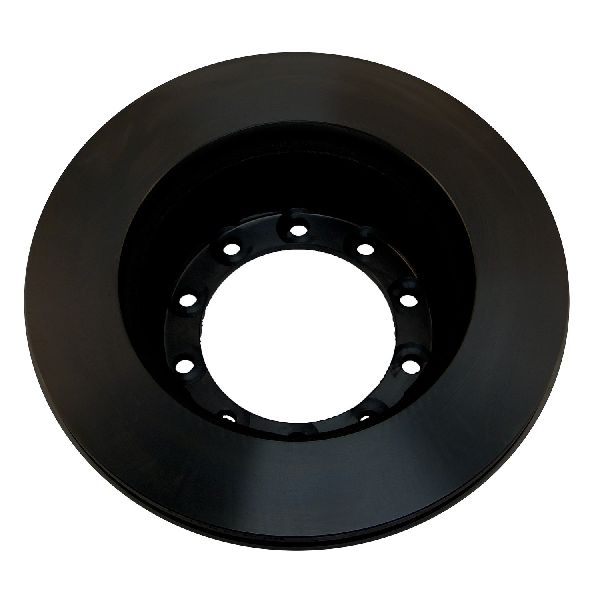

- Bendix: A well-known brand offering premium rotors, such as the Fleet MetLok line, designed for heavy-duty use.

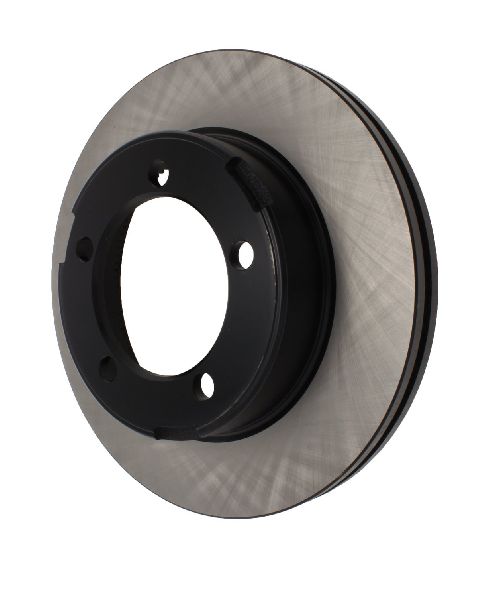

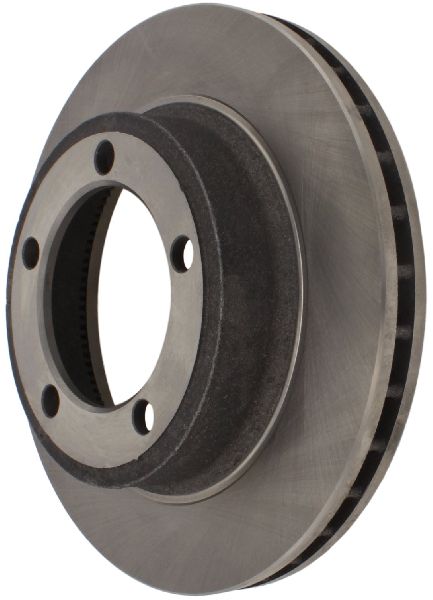

- Centric: Often recommended in forums, Centric's premium line features a black e-coating for corrosion resistance and is made to high-quality standards. They are considered a strong OE replacement.

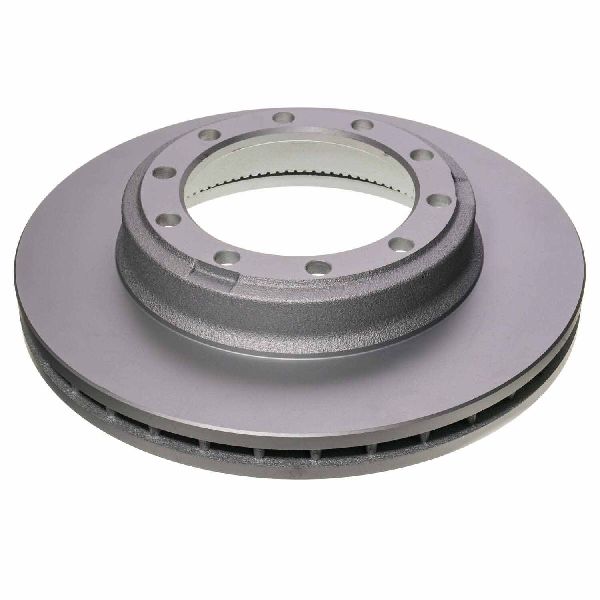

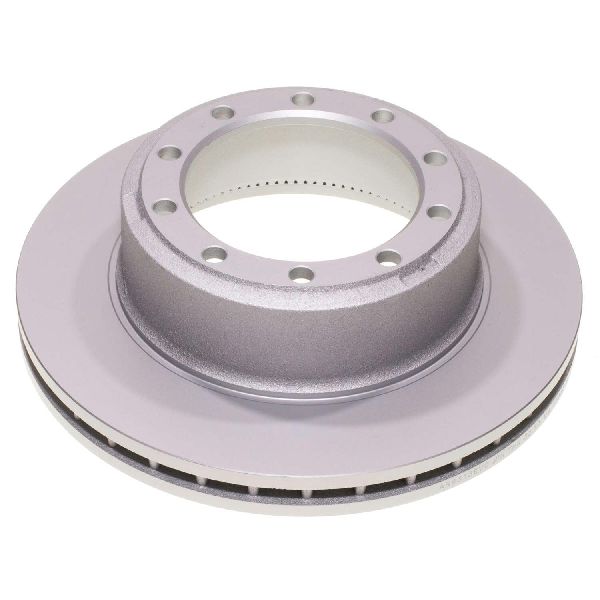

- Powerstop: This brand is often seen as an upgrade. While they offer standard replacements, they are also known for kits that can improve braking performance, which is a plus for a heavy vehicle.
- Raybestos: Raybestos offers several lines, including their R-Line and Advanced Technology series. Their coated rotors are a popular choice for resisting rust in harsh environments and are considered a reliable, high-quality option.
| Tier | Brands | Description |
|---|---|---|
| Premium | Bendix, Centric (Premium), Powerstop, Raybestos (Element3/Advanced) | Best choice for a W22. Often made from higher carbon iron to resist heat and warping. Many feature protective coatings to prevent rust. The small extra cost is worth it for safety and longevity. |
| Daily Driver | Centric (Standard), Raybestos (R-Line) | A solid, reliable choice that meets or exceeds original specifications. A good balance of performance and price for regular use. |
Frequently Asked Questions (FAQ)
Do I have to replace my calipers when I replace my rotors?
For the W22 chassis, it is highly recommended. Due to the widespread issues with the original Bosch calipers sticking, installing new or remanufactured calipers with new rotors is the safest approach. A sticking caliper will quickly overheat and destroy a brand-new rotor, wasting your time and money.
Can I have my old rotors machined or "turned"?
While technically possible if the rotor has enough thickness and only minor warping, it is generally not recommended for the W22. Machining removes material, making the rotor thinner and less able to handle the extreme heat generated by a heavy motorhome. Given the reasonable cost of new aftermarket rotors, replacement is the safer and more reliable option.
🎬 Watch this step-by-step walkthrough of a W22 rotor replacement.Does having oil bath front hubs affect rotor replacement?
Yes, significantly. The front rotors on the W22 are mounted behind the wheel hubs. To replace them, a technician must drain the hub oil, remove the axle shaft, and handle large wheel bearings. This makes the job much more complex and labor-intensive than on a typical car.
🎬 Learn how to properly service and change oil bath hubs.What are the lug nut torque specs?
The lug nuts on a W22 with 22.5-inch wheels require a very high torque, typically 450-500 ft-lbs. This requires specialized, heavy-duty torque wrenches that many DIY mechanics and even some auto shops do not have. Improperly torqued wheels are a major safety risk.
Helpful Videos
Technical Specifications
OEM Part Numbers: W8833312
All four positions (front and rear) use the same rotor. The rotor must have an ABS tone ring. Front hubs are oil-bath lubricated, complicating the replacement procedure.
