A Guide to the Engine Timing Set for the 2001-2012 Ford Ranger
Understanding the critical timing chain issues in the 4.0L SOHC V6 engine and how to fix them right.
- The 4.0L SOHC V6 is the primary engine with serious timing chain issues; the 2.3L and 3.0L are far more reliable.
- A rattling noise from the engine is a critical warning sign of failing timing chain guides and must be addressed immediately.
- Replacement on the 4.0L V6 is a very expensive, labor-intensive job that requires engine removal to access the rear chain cassette.
- Choose a high-quality aftermarket kit from a brand like Melling or INA, or use OEM Ford/Motorcraft parts for the best results.
Engine Differences in 2001-2012 Rangers
The 2001-2012 Ford Ranger came with three main engines, and their timing systems are very different. The 2.3L Duratec and 3.0L Vulcan engines use relatively simple and reliable single timing chains. While these can wear out over many miles, they don't have widespread, known issues.
The 4.0L SOHC V6 engine is a different story. It uses a complex system with three timing chains, multiple hydraulic tensioners, and plastic guides called "cassettes". The plastic guides, especially on early 2001-2004 models, are known to become brittle and break. This is the source of most timing-related problems in this generation of Ranger.
The Notorious 4.0L SOHC "Death Rattle"

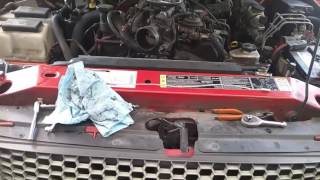

The most infamous issue with the 4.0L SOHC engine is the timing chain rattle. When the plastic timing chain guides break, the chain becomes loose and slaps against the remaining pieces and the engine covers. This creates a distinct rattling or ticking sound. 🎬 Listen to an example of the 4.0L timing chain rattle. The noise is often most noticeable on a cold start or at specific RPMs (around 2,500-3,000 RPM) before quieting down. Ignoring this sound is a serious risk, as it means the timing system is failing and could lead to complete engine failure.
Is the 4.0L SOHC an Interference Engine?
Yes. An interference engine means there is not enough space for both the valves and pistons to be in the same place at the same time. If the timing chain breaks or jumps a tooth, the pistons can strike the valves, causing severe and expensive engine damage. This is why addressing timing chain symptoms immediately is critical.
Choosing the Right Aftermarket Timing Set
When replacing the timing set on a 4.0L SOHC, the quality of the parts is everything. This is not a job you want to do twice. While OEM parts from Ford (Motorcraft) are a safe bet, several reputable aftermarket brands offer quality kits.
Brand Quality Tiers
- Premium Aftermarket (INA, Melling): INA is a major OEM supplier for many car manufacturers and is known for high-quality tensioners and bearings. Melling is a trusted American brand famous for oil pumps and valvetrain components, and their timing kits are well-regarded by mechanics. For a critical job like this, these brands offer a good balance of quality and value.
- Standard Aftermarket (Cloyes): Cloyes is one of the most common aftermarket brands and produces kits for a huge range of vehicles. While many have used their kits successfully, some mechanics and owners have reported occasional quality control issues, like chains having too much slack right out of the box.
- Economy Brands: Avoid generic, unbranded, or suspiciously cheap timing kits. The risk of premature failure is extremely high, and a failed timing set can destroy your entire engine. The cost savings are not worth the risk.
Pro Tip: Many mechanics recommend using an OEM/Motorcraft timing guide cassette, as Ford updated the design with stronger materials over the years. You can pair these with high-quality aftermarket tensioners and chains from a brand like INA or Melling to build a robust system.
How Much Does a Ford Ranger Timing Set Replacement Cost?
The cost is dominated by labor, especially on the 4.0L V6 where the engine often has to be removed 🎬 See a complete guide on replacing the timing chain and gaskets. to access the rear timing cassette. The 3.0L and 2.3L engines are significantly less expensive to service.
| Part/Service (4.0L SOHC V6) | Estimated Cost |
|---|---|
| New Aftermarket Timing Set | $250 - $690 |
| Shop Labor | $1,100 - $1,600+ |
| Total Professional Replacement | $1,400 - $2,300+ |
Frequently Asked Questions (FAQ)
Were there any recalls for the Ranger timing chain?
No, there have been no official safety recalls for the 4.0L SOHC timing chain components. Ford did release several Technical Service Bulletins (TSBs) to help technicians diagnose the noise, but the repairs are typically paid by the customer unless the vehicle is under warranty.
Can I just replace the tensioners?
If you have no rattling noise and are performing preventative maintenance, replacing the two main hydraulic tensioners is a good idea and can extend the life of the guides. 🎬 Watch: How to replace the hydraulic tensioners for preventative maintenance. However, if the rattling has already started, it means the plastic guides are already broken, and a full timing set replacement is the only correct repair.
Did Ford ever fix the timing chain problem?
Ford made several updates to the timing components over the years. Models from 2005 and later are generally considered to have more durable guides and tensioners from the factory. However, no year is completely immune, and failure can still occur depending on mileage and maintenance history.
What other parts should I replace at the same time?
Since the timing job is so labor-intensive, it's smart to replace other parts that become accessible. This includes the water pump, oil pump, thermostat, front crankshaft seal, and camshaft position sensor. If you have a manual transmission, it's also the perfect time to inspect or replace the clutch.
Helpful Videos
Technical Specifications
OEM Part Numbers: 4L2Z-6M290-AA 7U3Z-6A257-A F77Z-6268-AB 1L5Z-6268-AA
System varies by engine. The 4.0L SOHC V6 uses a three-chain system with two camshaft timing chains (one front, one rear) driven by a central jackshaft, and a primary chain from the crankshaft to the jackshaft. It also includes a balance shaft chain. The system relies on plastic guides and hydraulic tensioners.
