Ford Ranger Engine Valve Cover Gasket Set Guide for 2001-2012 Models
Stop oil leaks and burning smells by choosing the right valve cover gasket set for your Ranger's engine.
- A burning oil smell is the most common sign of a failing valve cover gasket on a Ranger.
- Always replace the bolt grommets and spark plug tube seals included in the gasket set.
- Do not overtighten the valve cover bolts; torque them to the factory spec of around 89 in-lbs.
- High-quality aftermarket brands like Fel-Pro and Victor Reinz offer excellent performance for this repair.
Is Your Ranger Leaking Oil? Signs of a Bad Valve Cover Gasket
A failing valve cover gasket is a common issue on 2001-2012 Ford Rangers as they age. The symptoms are usually easy to spot. If you notice any of these, it's probably time for a replacement.
- Burning Oil Smell: This is the most common sign. When oil leaks from the valve cover, it drips onto the hot exhaust manifold and burns off, creating a distinct and unpleasant smell that you might notice inside or outside the truck.
- Visible Oil Leaks: You may see oil residue or grime collecting on the side of the engine, just below the valve covers. For a small leak, it might just look like a dirty, wet area, but larger leaks will be more obvious.
- Low Engine Oil: If you find yourself needing to top off your oil between changes, a leaky valve cover gasket could be the culprit.
- Engine Misfires: On engines like the 2.3L Duratec, if the spark plug tube seals fail, oil can leak into the spark plug wells. This can ruin the spark plugs and wires, leading to a rough idle and a check engine light.
- Smoke from Engine Bay: In cases of a more significant leak, you might see faint white smoke coming from under the hood as the oil hits hot components.
Choosing the Right Aftermarket Gasket Set
You don't need to buy an expensive OEM gasket from the dealer. Aftermarket brands offer excellent quality, often at a much better price. For the Ford Ranger, most aftermarket gaskets are made from modern, durable rubber compounds that provide a great seal.
Here’s a look at the available brands:
- Fel-Pro: Often considered a top-tier aftermarket brand by mechanics and DIYers. Fel-Pro gaskets are known for being designed for the repair environment, meaning they help seal surfaces that might not be perfectly flat anymore. They are a reliable choice for any Ranger engine.
- Victor Reinz & Reinz: Another high-quality German brand, often compared directly with Fel-Pro. Some users note that Victor Reinz gaskets can feel slightly thicker and more pliable than other brands. They are a solid OEM-quality alternative.
- Beck Arnley: This brand sources parts from various manufacturers, often including those who supply the original automakers. Their quality is generally very good and reliable for this application.
- Apex: A more budget-friendly option that still meets or exceeds OEM specifications. These are a good choice for owners looking for a cost-effective repair without sacrificing reliability.
Pro Tip: Always get a full gasket set, not just the gasket itself. The sets include the spark plug tube seals and bolt grommets, which should always be replaced at the same time. Old, hardened grommets can cause the valve cover to crack if you overtighten the bolts.
Aftermarket vs. OEM Cost (2001-2012 Ranger)
| Part Type | Typical Price Range |
|---|---|
| New Aftermarket Set | $27.37 - $48.83 |
| New OEM Set | $70 - $150+ |
| Shop Labor | $150 - $450 |
Known Issues & Recalls
There are no specific recalls or widespread Technical Service Bulletins (TSBs) for valve cover gasket leaks on the 2001-2012 Ford Ranger. Failures are typically due to the age and mileage of the vehicle. However, the 4.0L SOHC V6 engine is known for a few other common issues, such as leaking thermostat housings and timing chain guide rattle, so it's a good idea to inspect for those problems while you're working on the engine.
Frequently Asked Questions (FAQ)
Do I need to use RTV sealant with the new gasket?
Yes, but only in specific spots. You should apply a small dab of RTV silicone sealant at the points where the engine block, cylinder head, and timing cover meet. These are sharp corners where the gasket alone might not seal perfectly. Do not apply sealant around the entire gasket, as this can cause it to slip out of place.
How difficult is it to replace the valve cover gaskets on a Ranger?
The difficulty varies by engine. The 2.3L Duratec 4-cylinder requires removing the intake manifold to access the valve cover, making it a more involved job. The 3.0L Vulcan and 4.0L V6 engines can also be challenging, especially on the passenger side, due to tight spaces and the need to move hoses and wiring harnesses out of the way. It is a DIY-feasible job for someone with mechanical experience.
How tight should the valve cover bolts be?
Not very tight. The bolts should be torqued to Ford's specification, which is typically around 89 in-lbs (about 7-8 ft-lbs). Overtightening is a common mistake that can crack the valve cover or distort the new gasket, causing another leak. Always tighten the bolts in the sequence specified in the repair manual.
Should I choose a rubber or cork gasket?
Modern aftermarket gaskets for the Ranger are almost all made of high-quality molded rubber. These are superior to older cork or cork-rubber designs. They resist heat and oil better and provide a more reliable, long-lasting seal. Avoid any kits that use cork for this vehicle.

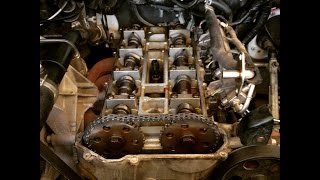

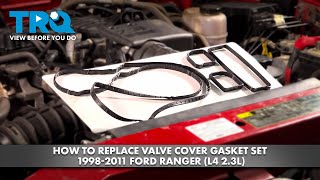

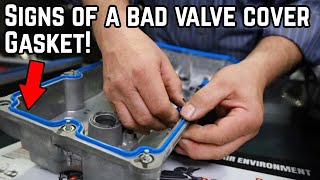

Helpful Videos
Technical Specifications
OEM Part Numbers: 1S7Z-6584-BA VS50639R1 VS50529R
Fitment varies by engine (2.3L I4, 3.0L V6, 4.0L V6). Sets should include the main valve cover gasket(s), spark plug tube seals, and bolt grommets. Material is typically high-quality molded rubber.
